WARNING: Make sure that it is safe to supply power. All wiring connections must
be completed and the cover must be on the charging station and secured.
Supply power to both the Smappee Infinity installation and the EVBox car charging
station.

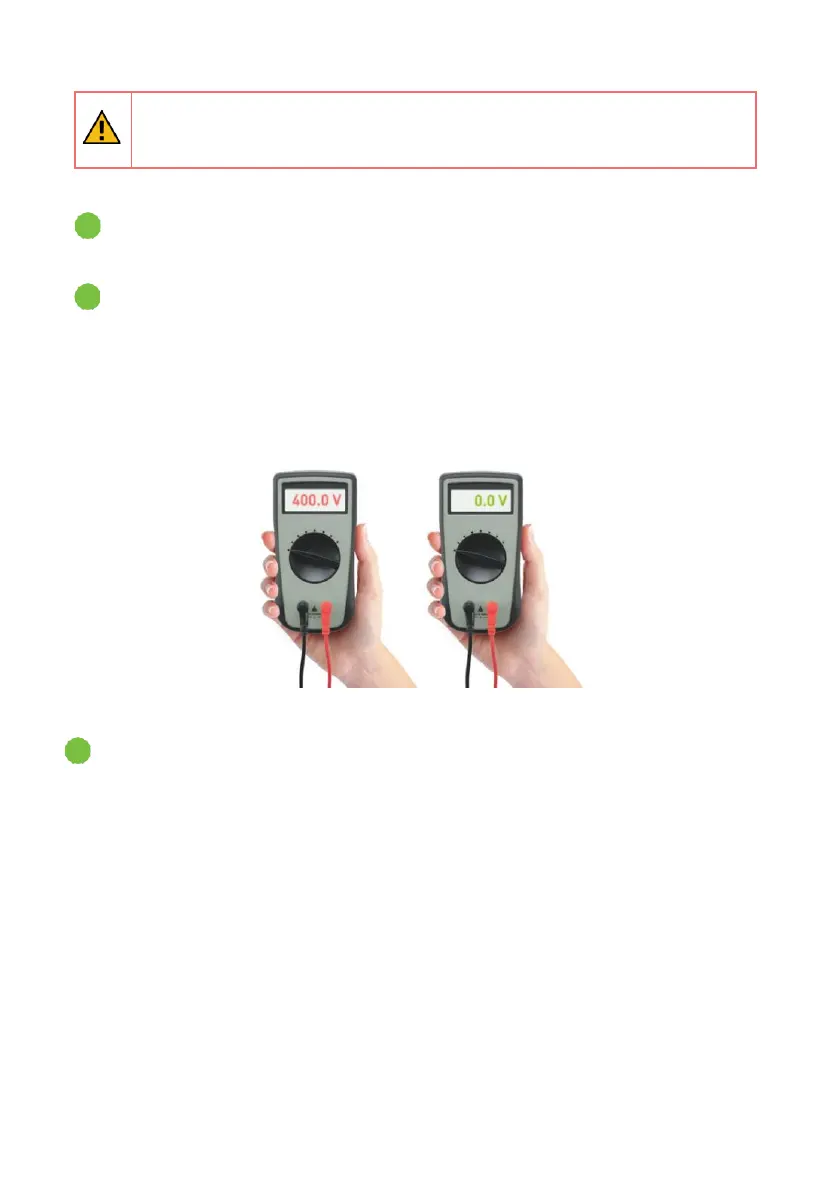

Use a digital multimeter to ensure that the phase mapping of the Smappee Infinity is
the same as the phase mapping of the EVBox car charging station. Please note that the
colour code inside the fuse box and/or the phase numbering may be incorrect.
Note: 0 volts is measured when both loads are on the same phase.
Ensure that the stickers on the CTs or CT Hubs match the load they are measuring. The
sticker with a car icon should measure the EVBox charging station, the house icon
should measure the grid, and the sun icon should measure solar production (if
applicable).
