English – Version 1.2 – January 2021
Elvi
Note: This is only applicable for Elvi model from Q4 2019 onwards.

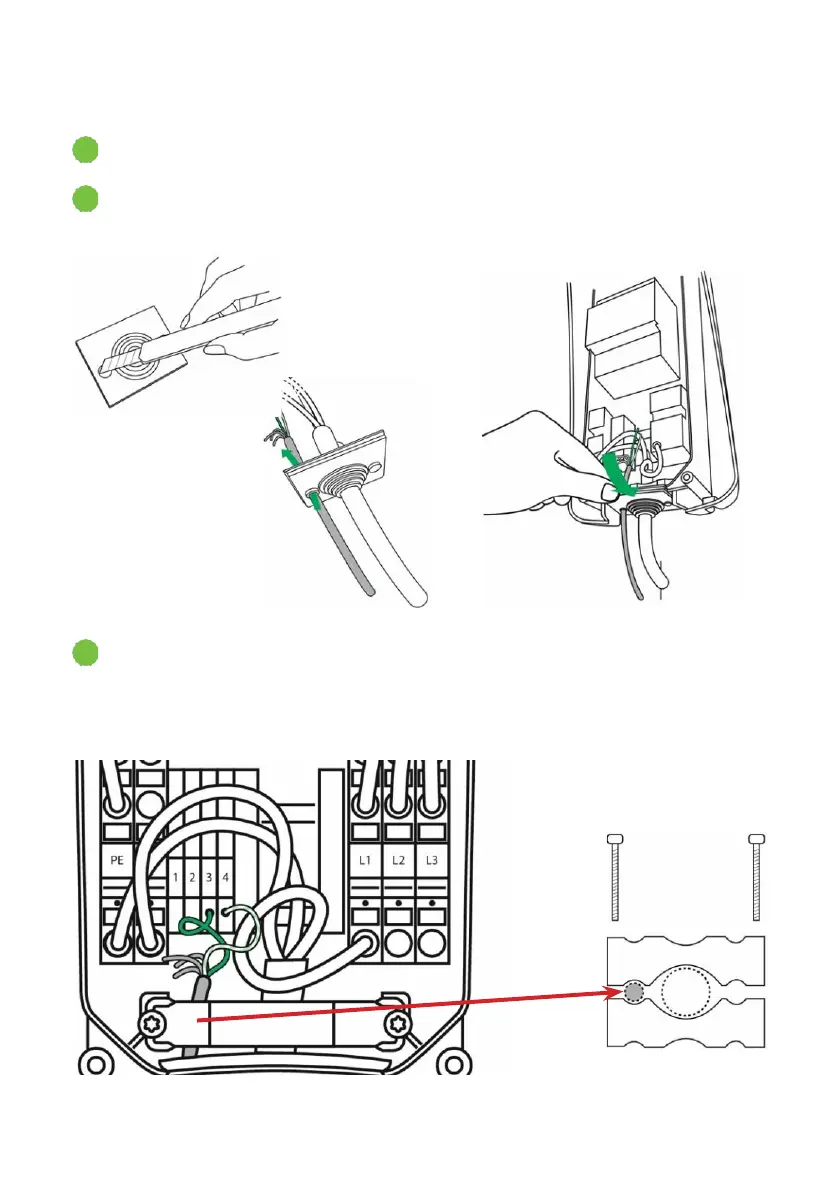

In the charging station, find the RS485 connector blocks on the DIN rail. The figures
below will help you find the connection.
Route the network cable into the charging station along the same route and using the
same cable gland as the power cable. Cut an additional hole in the cable gland for the
network cable.
Connect the network cable to the RS485 connector blocks on the DIN rail:
•
Green > Connector block 3
•
Green/White > Connector block 4
Check Physical installation
