Smart Sensor AR600E User Manual

-03-
-20-
Technicalparameter
Technical
specifications
Range (25mm cable min)
3~23m
Range (12mm cable min)
3~15m
Range (5.5mm cable min)
3~12m
Range (2.5mm cable min)
3~10m
Horizontal measuring range
3~18m
Operating temperature range
-10 ~40
Resolution (range<10m)
5mm
Resolution (range>10m)
10mm
Measuring accuracy
0.5% 2d
Minimum gap between wires
150mm
BOT mode: measuring the height of the
most lower 6 cables
TOP mode: measuring the height of the
most higher 6 cables
Auto power off delay
120S
Low battery alarm
7.2V+-0.2V
Imperial & metric unit transition
Displays real time temperature.
Operating voltage
9V 6F22
Dimension
75x72x200mm
Weight
205g(excluding
battery)
Battery life
20H(continuous
use)
Wall surface
Operation
Explanations
P r o d u c t S p e c i f i c a t i o n s
Imperial unit
LCD display

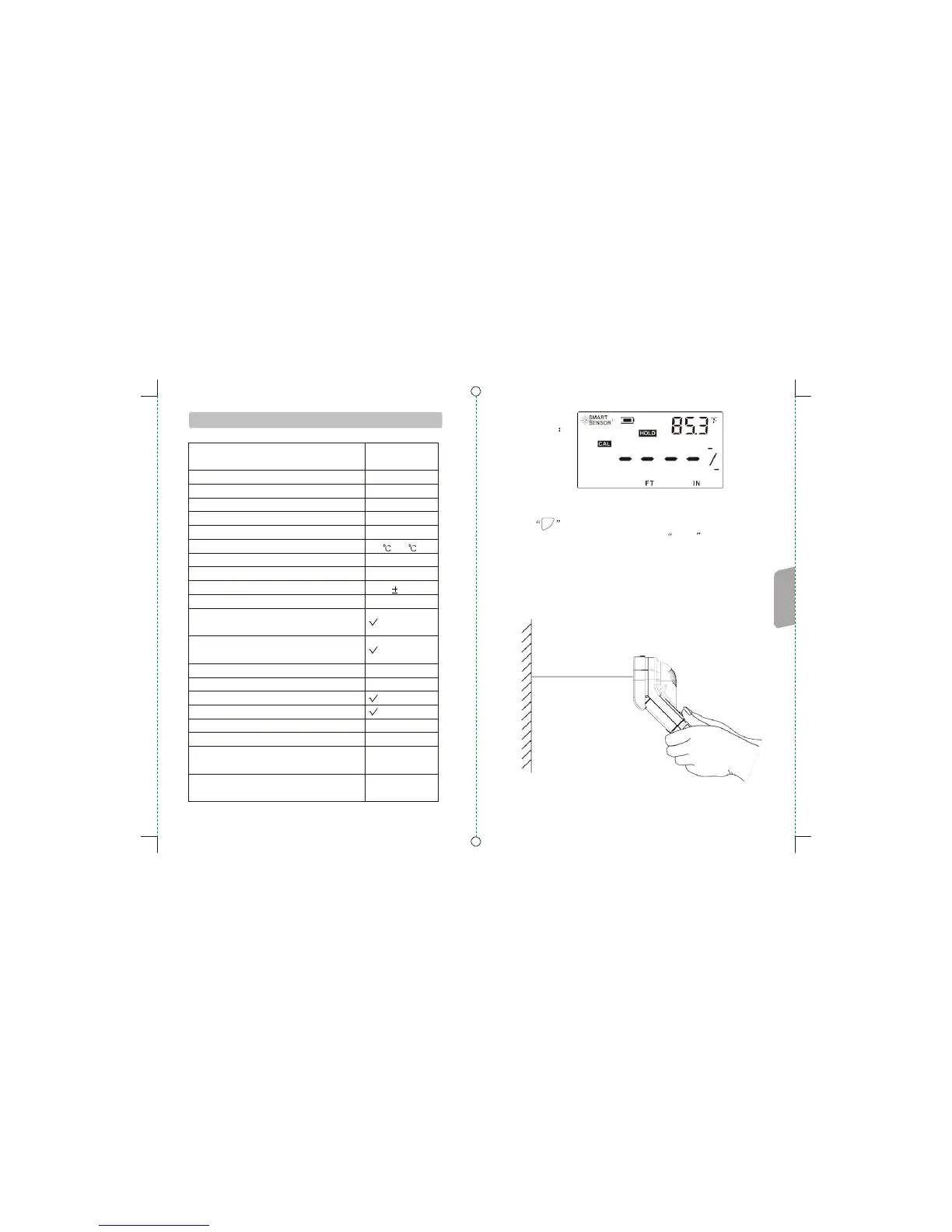

5). Align the unit head to the object to be measured, press
the
MEA-
SURE
key then release to get and display the
measured result, if still showing ------ , that means
the unit did not receive echo signal from the object,
needing a check if the plastic surface of the sensor is
parallel with the reflecting surface of the object to be
measured, or have already exceed the measuring
range of the unit. Shown as following figure:
