Loading up 7!19

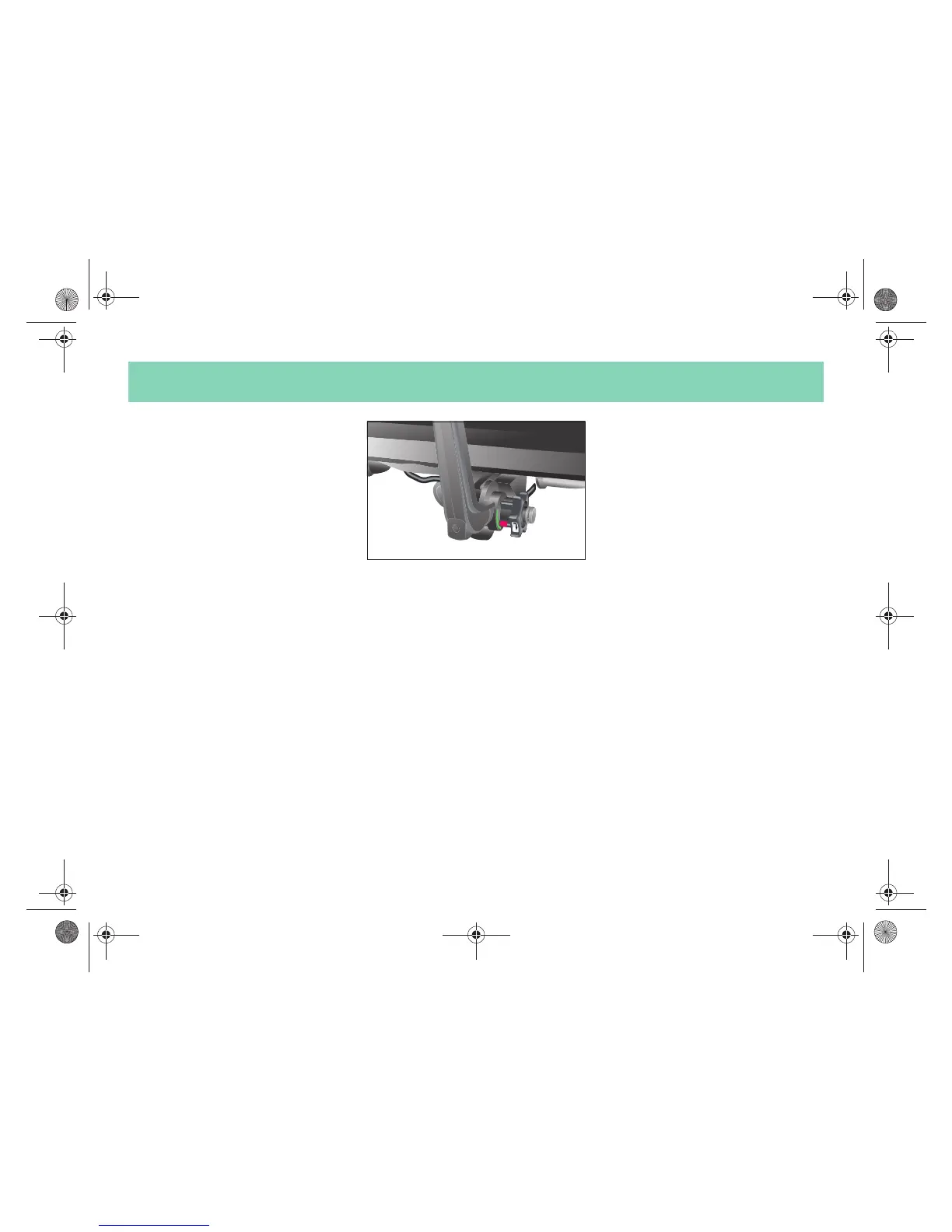

Trailer hitch*
! Press the protective cap over the lock.
>The ball head is protected against
unauthorised removal.
>Only with the key removed is it as!
sured that the ball head is correctly
locked.
>Note!
Make a note of the key number. If the key
is ever lost, you can order a new one from
a smart center by quoting this number.
Adjusting fitting position
! Insert the key in the lock on the ball
head.
! Turn the key in the opposite direction
to the arrow.
>The lock is released.
! Lift the handwheel off the ball head and
turn it in the direction of the arrow
until it engages.
>The red mark on the hand wheel is
aligned with the green mark on the
ball head.
>You can fit the ball head.
Removing ball head
! Remove the protective cap from the
lock on the handwheel.
! Insert the key in the lock and turn it in
the opposite direction to the arrow.
! Release the handwheel by pulling it out
sideways and turning it clockwise un!
til it engages.
>The red mark on the hand wheel is
aligned with the green mark on the
ball head.
! Pull off the ball head to the rear.
! Press the stopper into the permanent
mounting on the car.
! Place the ball head back in the luggage
compartment box beneath the cover in
the luggage compartment.
>Important!
The ball head can easily be fitted and re!
moved by hand. Do not use any tools, as
this would damage the mechanism.
