SmartAVI Proprietary Connector
Pair Color RJ45 Pin Description
1
White/Orange 1
Video+Audio
Orange 2
2
White/Green 3
Video+Audio
Green 6
3
Blue 4
Video+Audio
White/Blue 5
4
White/Brown 7
DATA RS232 and IR
Bidirectional
Brown 8

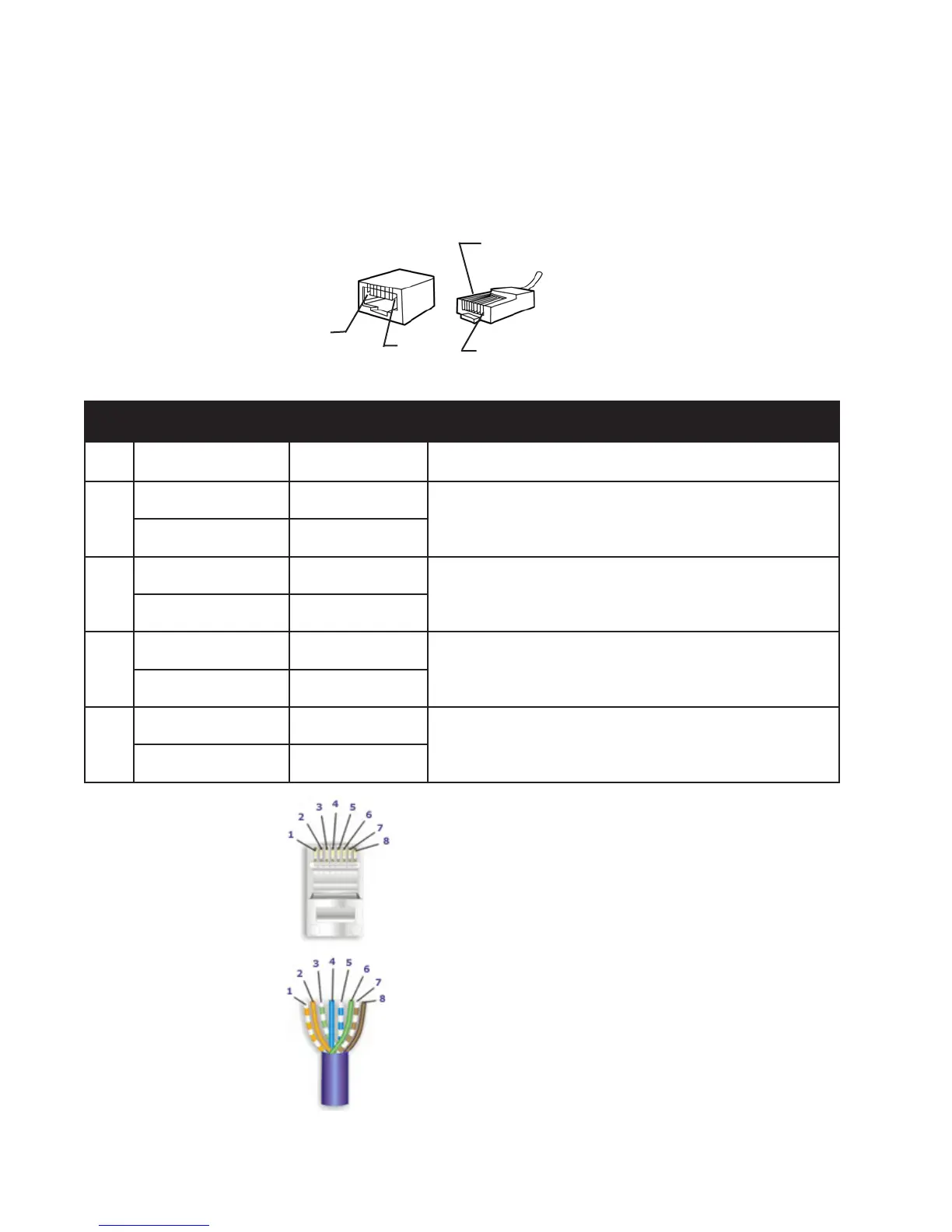

Table below describes the pinout configuration of the SmartAVI Cat5
CAT5 Preparation
The SuperMatrix is a point to point video extender/switcher. The system does not allow to con-
necting the Cat5 via hubs or any kind of switches that the point to point connection need be main-
tained. The 16 RJ45 ports on the front of the SuperMatrix are output ports, providing connectivity
to the XTPro or XT-AV receiver. This is a standard RJ45 connector, the SuperMatrix can be connect-
ed via either Cat5, Cat5e or Cat6 cabling.
PORT,
RJ45 Female
CONNECTOR, RJ45 Male
Pin 8
Pin 8
Pin 1
Pin 1
Cable Instructions:
Use 568B
Chapter 2: Installation
