1.3 Front and Rear

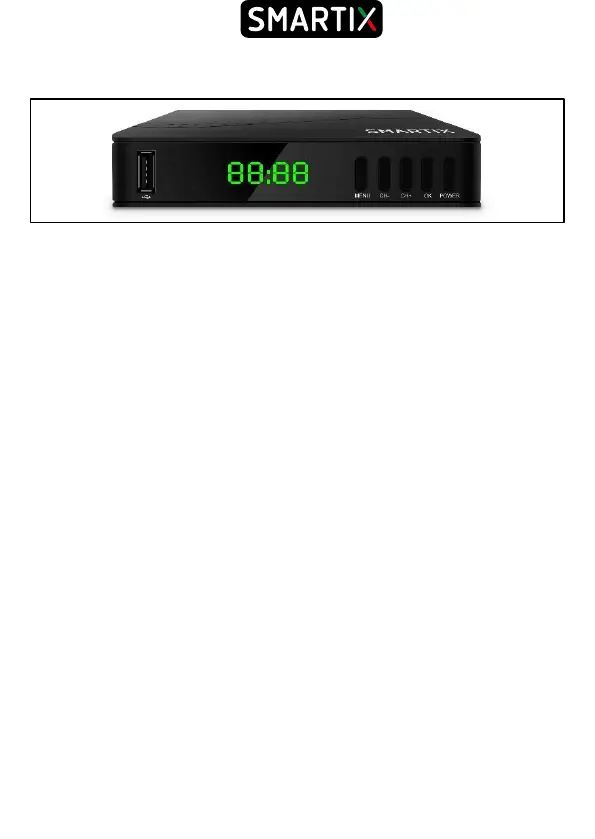

PanelFront Panel
● USB: This is a high-speed USB 2.0 port used to connect a storage device such as HDD,
USB Memory Stick. If you use HDD, both 2.5 "and 3.5", it is advisable to provide a
separate power supply (the internal power supply section has not been designed to
supply these additional loads).
● LED Display: The number of the channel on which the device is tuned or any decoder
status is shown. When turned off, the time is shown.
● IR Receiver: Used to receive IR signaling from the remote control. It should never be
covered.
● Stand By indicator: Indicates the operating status of the device. Green = On, Red =
Off.
● M: Allows access to the Menu
● +/-: Allows to change the displayed channel (in Menu mode it allows to move between
the various displayed items).
● OK: Allows you to confirm the choices in the menu mode.
● Power: Allows you to turn off / on the device.
Rear Panel
● RF IN: Connect this input with the antenna cable.
● COAXIAL: Coaxial Output.
● HDMI OUT: HDMI type video output. Allows connection to the TV.
● SCART OUT: Scart Video Output. Allows connection to the TV.
● PLUG IN: Connect the PLUG of the supplied power supply.
In the lower part there is the sticker with all the information of the device.
