SmartSun PRO + - 9. Front Inclination Adjustment; Common Assembly Errors

39

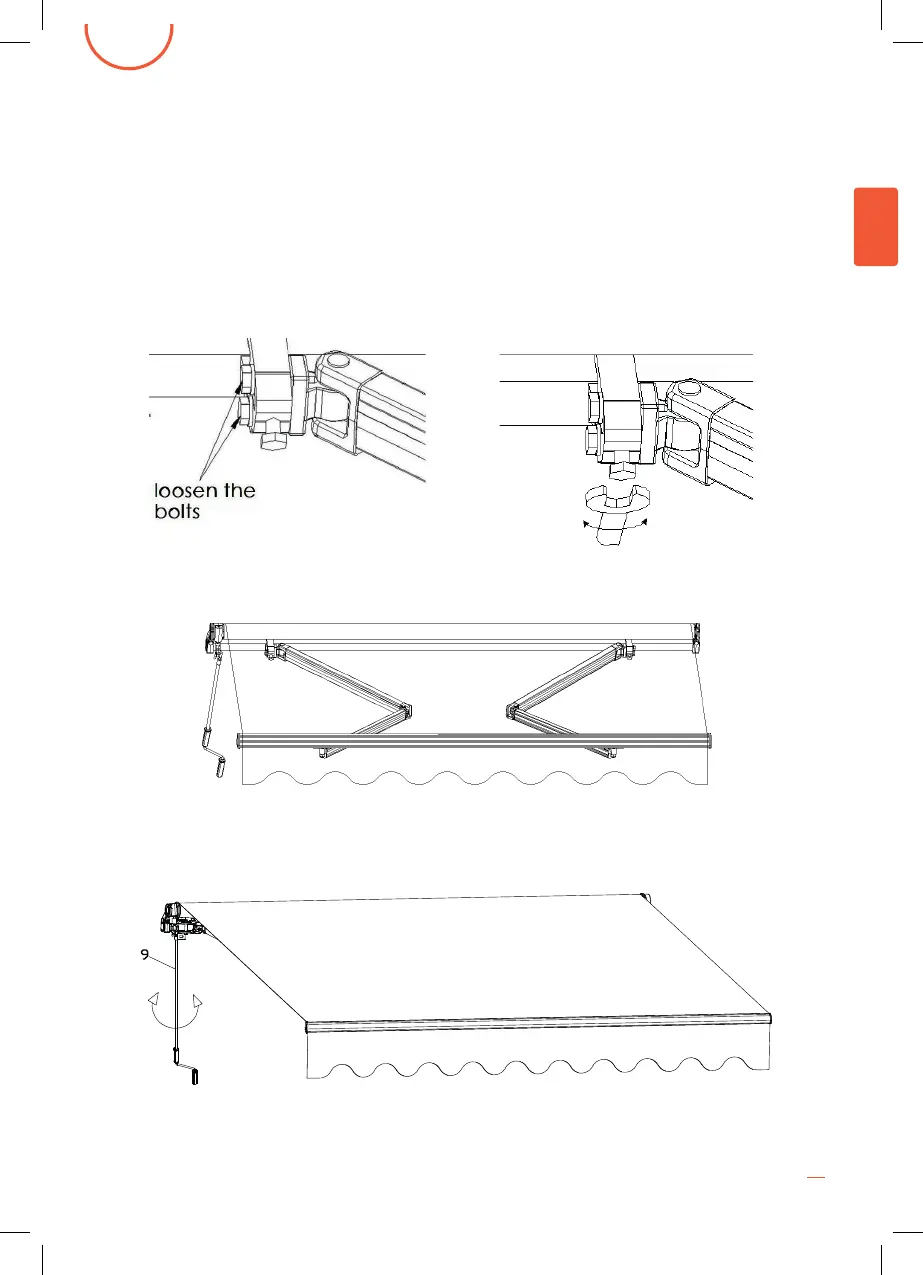

ADJUSTMENT OF THE FRONT
INCLINATION
Open the canopy with the handle. Ensure that the front bar is completely level horizontally. If this
were not the case, loosen the bolts of the arm support and unscrew the bolts (22) to adjust the
angle. Readjust the bolts on the arm support when nished.
Once the front bar is horizontally level, the canopy may be used normally.
ES
Una vez nivelada horizontalmente la barra frontal, el toldo puede ser
utilizado con normalidad.
ES
Una vez nivelada horizontalmente la barra frontal, el toldo puede ser
utilizado con normalidad.
EN
3. Adjustment of the front inclination:
Open the canopy with the handle. Ensure that the front bar is completely level
horizontally. If this were not the case, loosen the bolts of the arm support and unscrew
the bolts (22) to adjust the angle. Readjust the bolts on the arm support when finished.
COMMON ASSEMBLY ERRORS
ENGLISH
