Changing the entry direction

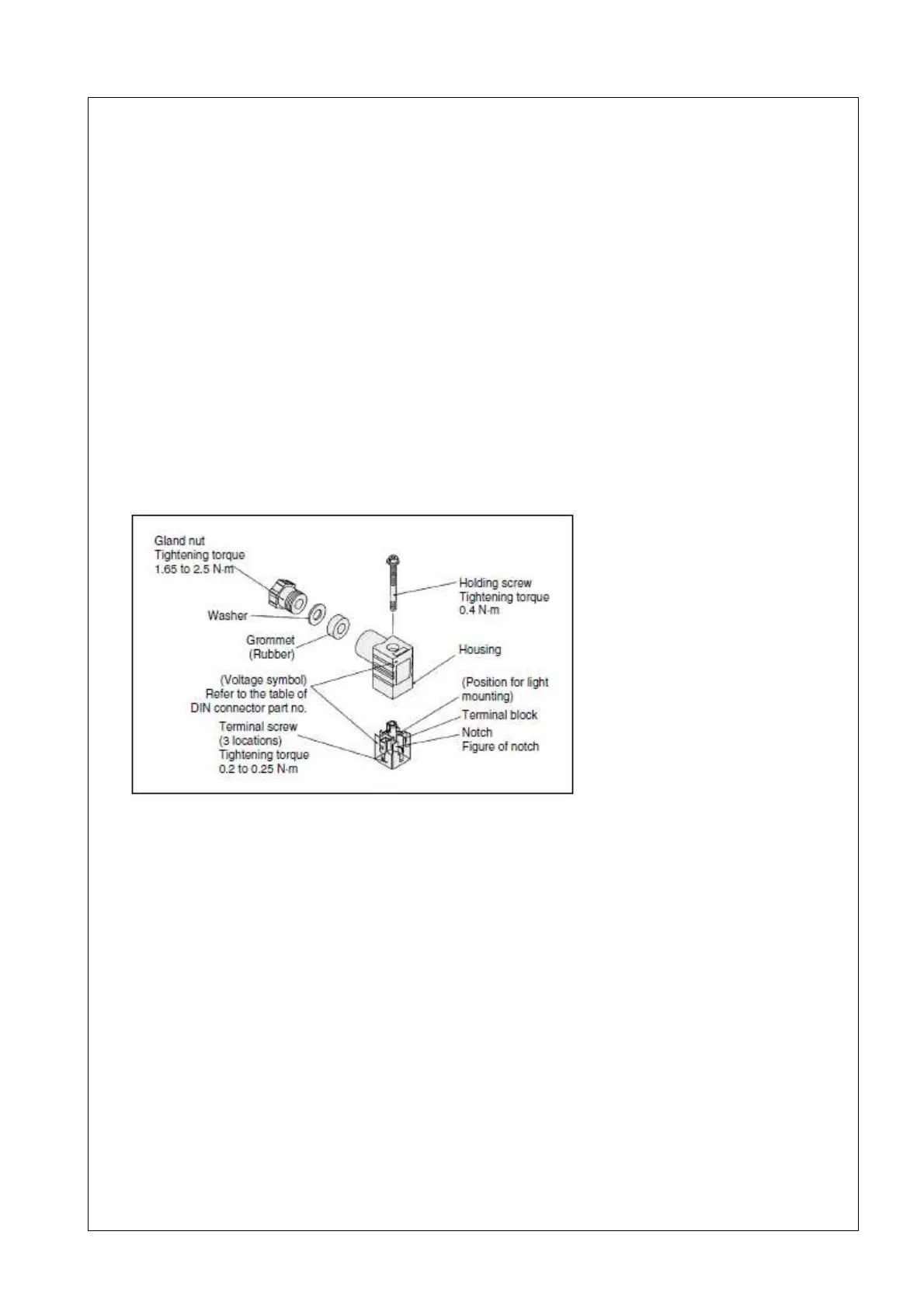

After separating the terminal block and housing, the core entry can be changed by attaching
the housing with 90
o
interval direction. Note that the direction cannot be changed towards
this product.
* When equipped with a light, be careful not to damage the light with the cord’s lead wires.
Precautions
Plug in and pull out the connector vertically without tilting to one side.
Compatible cable
Cord O.D.: φ3.5 to φ7
(Reference) 0.5mm
2
, 2-core or 3-core, equivalent to JIS C 3306
Type “Y”
Y type DIN connector is a DIN connector that confirms to the DIN pitch 8-mm standard.
・D type DIN connector with 9.4mm pitch between terminals is not interchangeable.
・To distinguish from the D type DIN connector, “N” is listed at the end of voltage symbol.
(For connector parts without lights, “N” is not indicated. Refer to the name plate to distinguish.)
・Dimensions are completely the same as D type DIN connector.
-13-
