SMC Networks AV2000-02-1 User Manual

Model
Standard specifications
Port size A B C D E1 E2 F G H J Z
1(P) 2(A) 3(R)
AVL2000-□02-1 to 6D/Y(Z)-□-A 1/4 1/4 1/4 66 119.5 47 24.5 20 20 64 33
Width across
flats 22
48.9 90.3
AVL3000-□03-1 to 6D/Y(Z)-□-A 3/8 3/8 3/8 76 119.5 50 29.5 20 20 64 38
Width across
flats 24
53.9 95.3
AVL4000-□04-1 to 6D/Y(Z)-□-A 1/2 1/2 1/2 98 129.5 56 39.5 26 26 64 49
Width across
flats 30
51.9 93.3
AVL5000-□06,10-1 to 6D/Y(Z)-□-A 3/4・1 3/4・1 3/4 128 132.5 59 53 37 37 64 53
Width across
flats 36
70.9 112.3
(mm)
Model
Optional specifications
With bracket With built-
in silence
K L M N P Q R S T U V W X Y
AVL2000-□02-1 to 6D/Y(Z)-□-A 30 50 51.5 44 5.5 10 66 2.3 33.5 54 －
M4 x 0.7
Depth 6
3
Width across
flats 14
AVL3000-□03-1 to 6D/Y(Z)-□-A 41 50 53.5 46 5.5 15 70 2.3 33.5 54 ―
M4 x 0.7
Depth 6
3
Width across
flats 19
AVL4000-□04-1 to 6D/Y(Z)-□-A 50 60 64 54 8.5 18 90 3.2 39 74 ―
M5 x 0.8
Depth 6.5
4
Width across
flats 22
AVL5000-□06,10-1 to 6D/Y(Z)-□-A 70 75 70 60 11 16 100 3.2 45 80 56
M6 x 1
Depth 8
6
Width across
flats 32

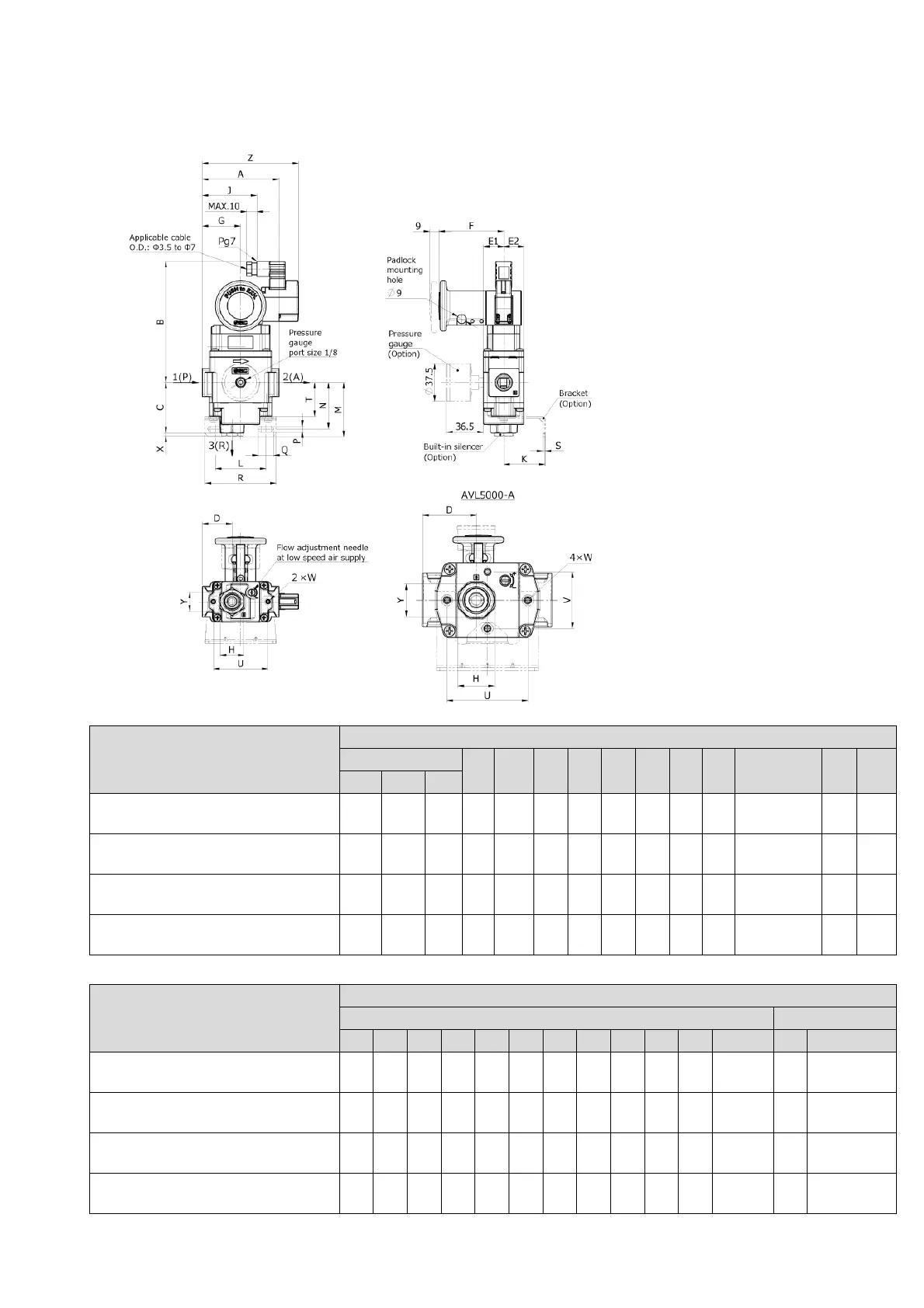

Dimensions
-32-
Lockout type (Manual operation with solenoid valve)
DIN terminal：AV□00-□-□D/Y□-□-A

SMC Networks AV2000-02-1 Specifications

General

Brand	SMC Networks
Model	AV2000-02-1
Category	Control Unit
Language	English
