Model
Standard specifications
Port size A B C D E1 E2 F G H J Z
1(P) 2(A) 3(R)
AVL2000-□02-5 to 6WOZ-□-A 1/4 1/4 1/4 66 108.1 47 24.5 20 20 64 33
Width across
flats 22
74 90.3
AVL3000-□03-5 to 6WOZ-□-A 3/8 3/8 3/8 76 108.1 50 29.5 20 20 64 38
Width across
flats 24
79 95.3
AVL4000-□04-5 to 6WOZ-□-A 1/2 1/2 1/2 98 118.1 56 39.5 26 26 64 49
Width across
flats 30
77 93.3
AVL5000-□06,10-5 to 6WOZ-□-A 3/4・1 3/4・1 3/4 128 121.1 59 53 37 37 64 53
Width across
flats 36
96 112.3
(mm)
Model
Optional specifications
With bracket With built-
in silence
K L M N P Q R S T U V W X Y
AVL2000-□02-5 to 6WOZ-□-A 30 50 51.5 44 5.5 10 66 2.3 33.5 54 －
M4 x 0.7
Depth 6
3
Width across
flats 14
AVL3000-□03-5 to 6WOZ-□-A 41 50 53.5 46 5.5 15 70 2.3 33.5 54 ―
M4 x 0.7
Depth 6
3
Width across
flats 19
AVL4000-□04-5 to 6WOZ-□-A 50 60 64 54 8.5 18 90 3.2 39 74 ―
M5 x 0.8
Depth 6.5
4
Width across
flats 22
AVL5000-□06,10-5 to 6WOZ-□-A 70 75 70 60 11 16 100 3.2 45 80 56
M6 x 1
Depth 8
6
Width across
flats 32

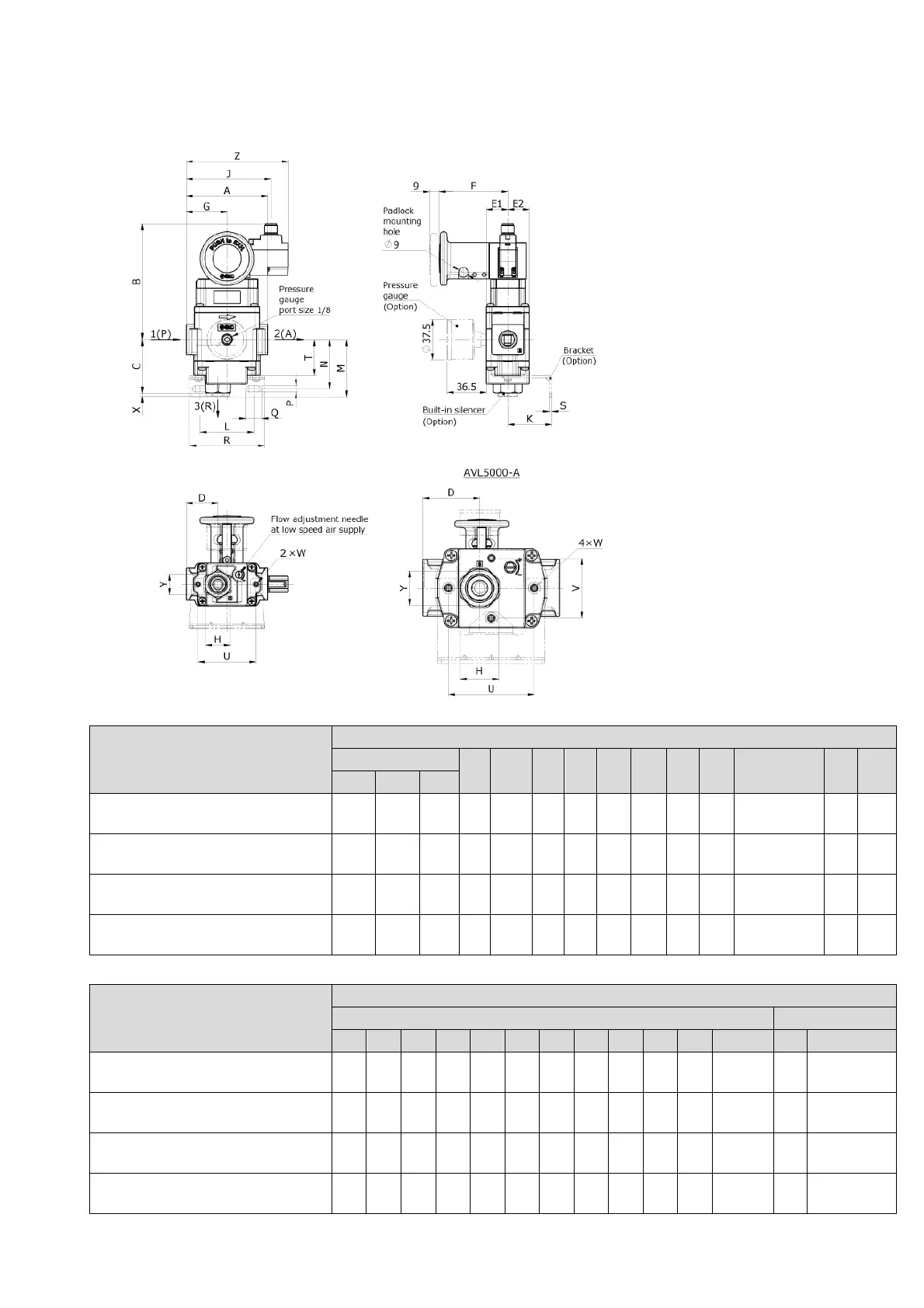

Dimensions
-33-
Lockout type (Manual operation with solenoid valve)
M12 connector：AV□00-□-□WOZ-□-A
