Installing the Wireless Barricade g Router
8
Attach to Your Network Using Ethernet Cabling
Use twisted-pair cable to connect any of the four LAN ports on
the Wireless Barricade to an Ethernet adapter on your PC.
Otherwise, you can cascade any of the LAN ports on the
Wireless Barricade to an Ethernet hub or switch, and then
connect your PC or other network equipment to the hub or
switch. When inserting an RJ-45 plug, be sure the tab on the plug
clicks into position to ensure that it is properly seated.
Warning: Do not plug a phone jack connector into any RJ-45
port. This may damage the Wireless Barricade.
Instead, use only twisted-pair cables with RJ-45
connectors that conform with FCC standards.

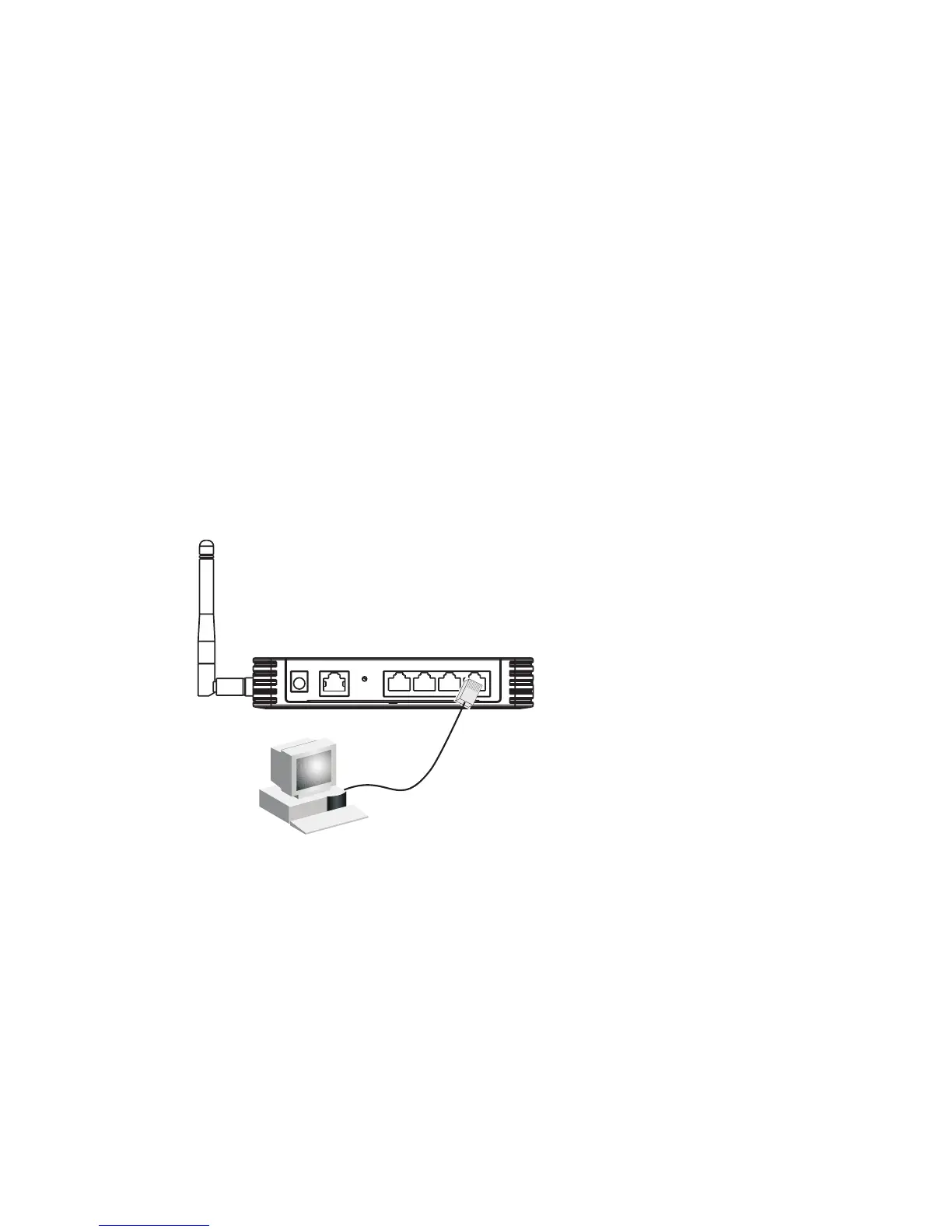

Figure 3. Making a LAN Connection
