Installing the Wireless Barricade g Router
10
Attach the Wireless Barricade g Router to the Internet
If Internet services are provided through an xDSL or cable
modem, use unshielded or shielded twisted-pair Ethernet cable
CAT 5 with RJ-45 plugs to connect the broadband modem
directly to the WAN port on the Wireless Barricade.

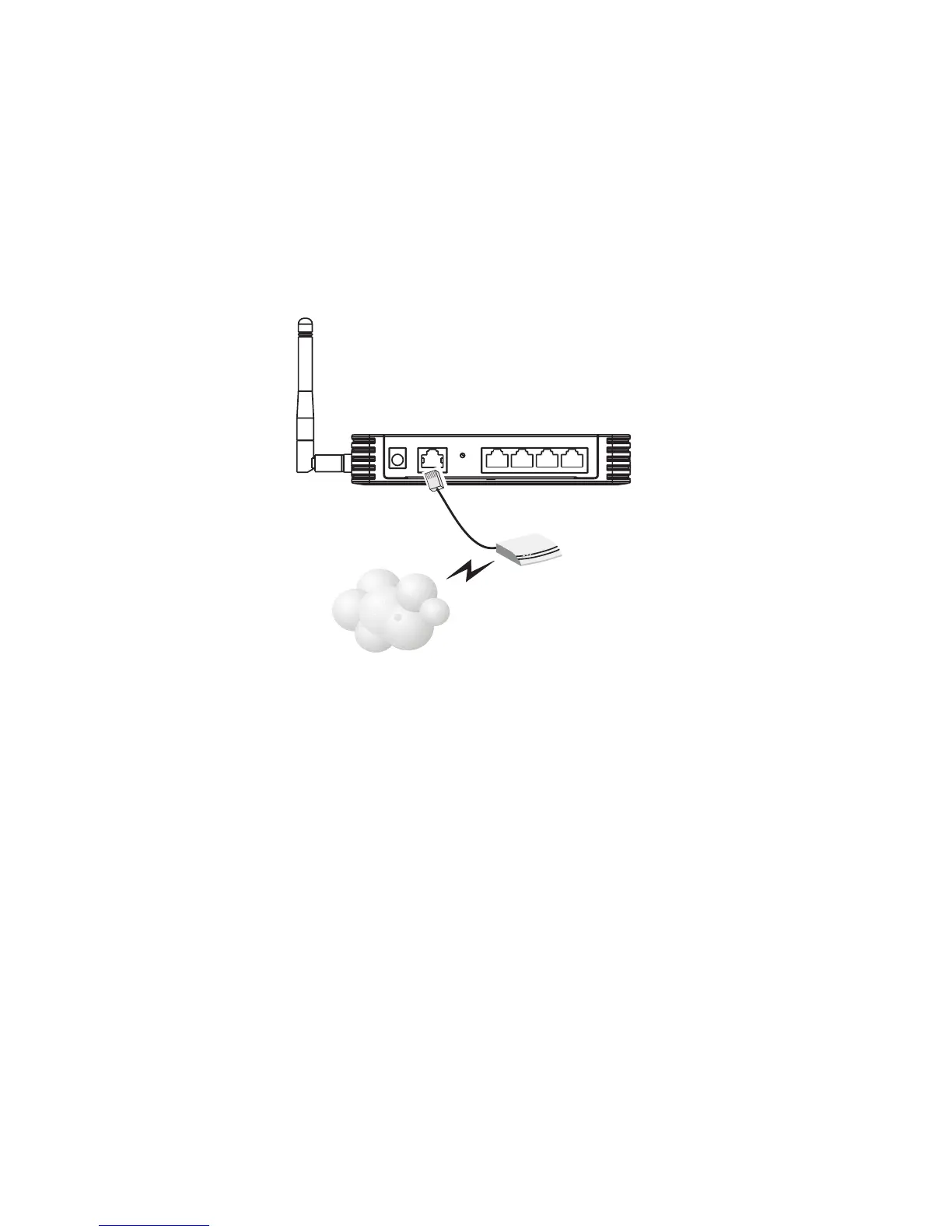

Figure 5. WAN Connection Example
ISP
(primary)
DSL/Cable
Modem
