Mounting and Installation

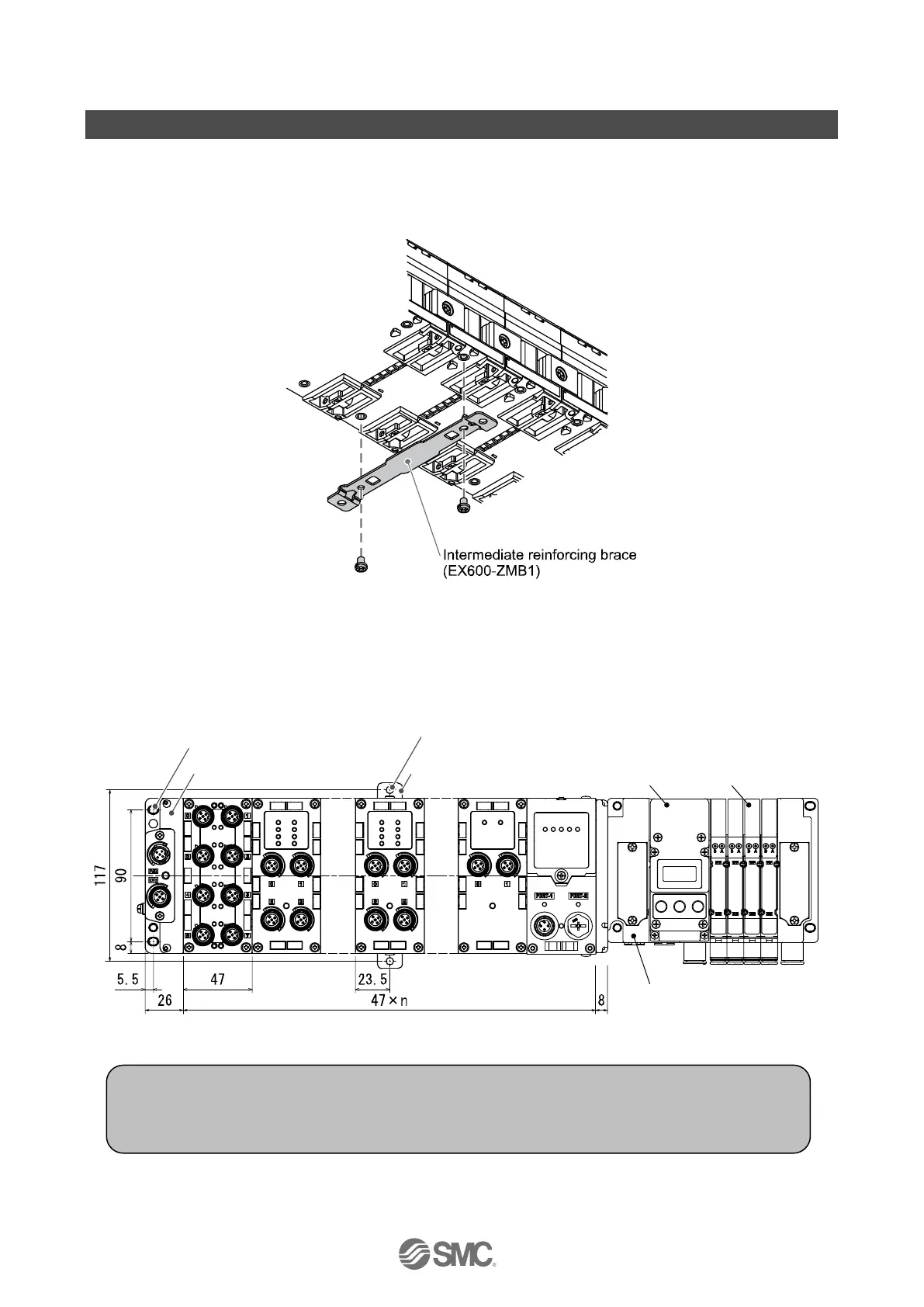

■Direct mounting
(1) When assembling six or more units, the middle part of the assembly must be fitted with an intermediate
reinforcing brace (EX600-ZMB1) before mounting, using 2-M4 × 5 mm screws supplied.
(Tightening torque: 0.7 to 0.8 Nm)
(2) Mount and tighten the end plate at one end of the unit and mount the intermediate reinforcing brace if
required. (M4)
(Tightening torque: 0.7 to 0.8 Nm)
Fix the SUP/EXH block assembly side while referring to the operation manual for the corresponding
valve manifold or ITV module.
n (Number of connected Units) ≤ 9
End plate
2 x M4 screws
(Tightening torque: 0.7～0.8 N・m)
Intermediate
reinforcing brace
Manifold valveITV module
2 x M4 screws
(Tightening torque: 0.7～0.8 N・m)
SUP/EXH block assembly
●Precautions for handling
•When assembling six or more units, fix the middle part of the complete unit with an intermediate
reinforcing brace to prevent incorrect connection between the units due to deflection.
