-18-
No. DOC1045423
Wiring

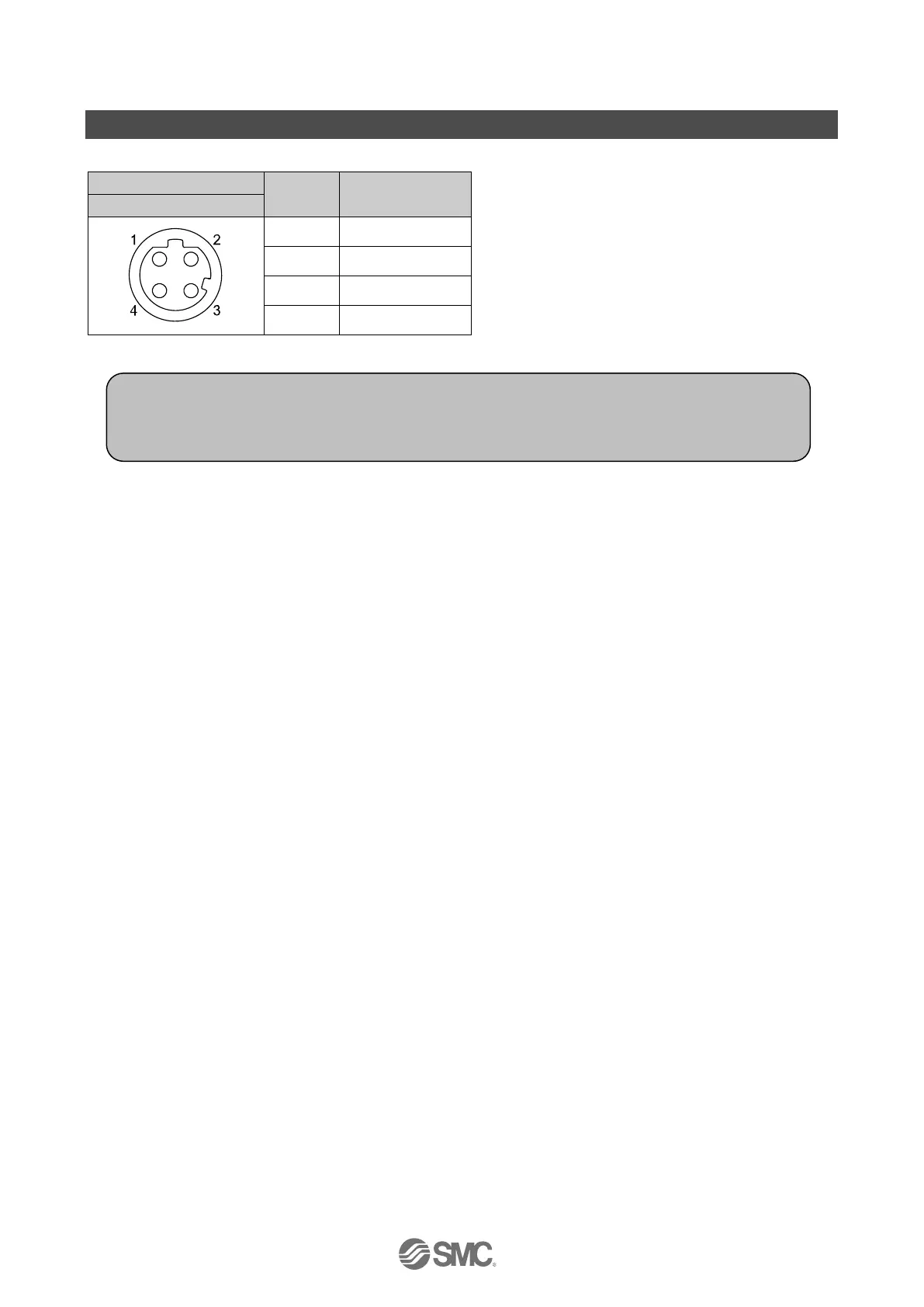

Connector pin assignment
Configuration
Pin No.
Signal name
PORT 1 / PORT 2
1
TX+
2
RX+
3
TX-
4
RX-
●Precautions for handling
Be sure to fit a seal cap on any unused connectors. Proper use of the seal cap enables the
enclosure to maintain the IP67 specification.
