SMC Networks EX600-ED Series User Manual

-19-
No. DOC1045423
Setting and Adjustment
■Switch setting operation

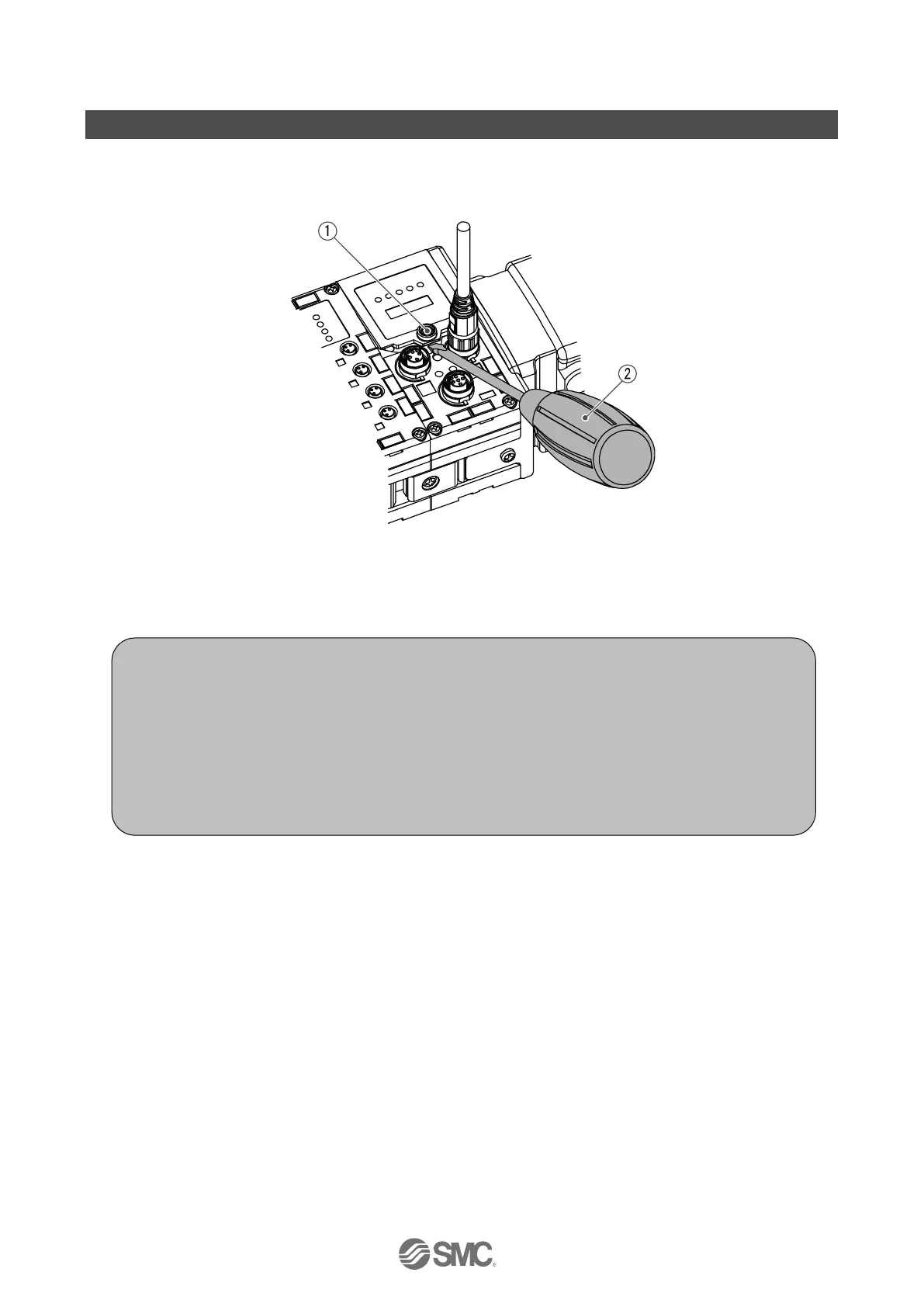

(1) Loosen the display cover tightening screw.
(2) Open the display cover using a flat blade screwdriver, etc.
(3) Set the switch using a small flat blade screwdriver, referring to the switch settings on the following
pages.
(4) After setting the switch, tighten the display cover screw in the reverse order of the preceding procedure.
(Tightening torque: 0.3 to 0.4 N•m)
●Precautions for handling
•Turn off the power supply whilst setting the switch.
•If there is foreign matter or water droplets around the display cover, clean it off before opening
the cover.
•When setting the switch, do not touch other unrelated parts. This can cause parts damage or
malfunction due to a short circuit.
•All default settings are OFF. Perform the setting of the switch before using this product.
•When introducing the power supply, the switch setting will become effective.
Any changes made during operation are ignored.
