SMC Networks EX600-ED Series User Manual

-20-
No. DOC1045423

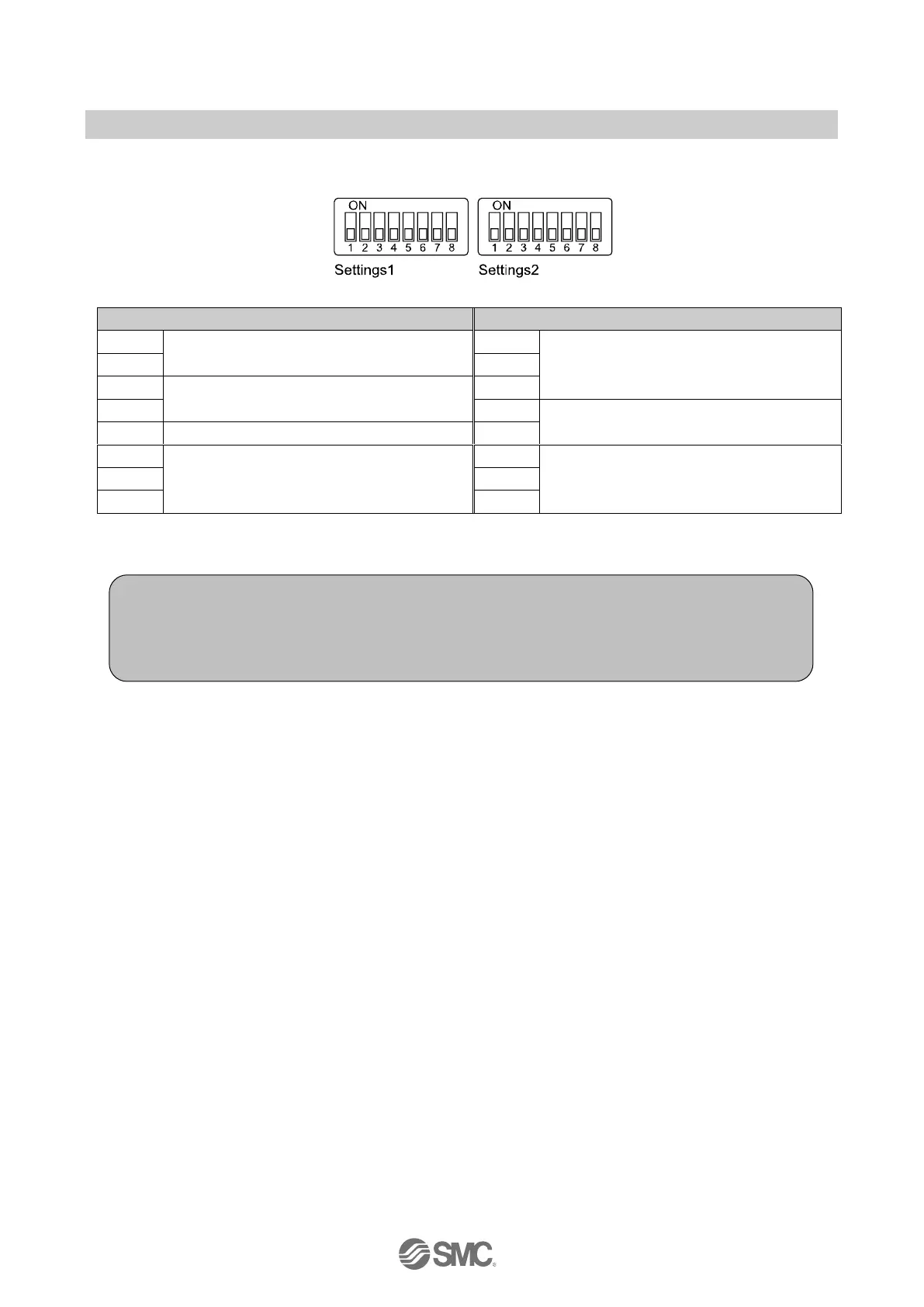

■Switch setting
Settings1
Settings2
1
IO-Link master size setting
1
SI unit data size setting switch (Valve output)
2
2
3
Diagnostics mode setting
3
4
4
SI unit data size setting switch (ITV module)
5
Hold/Clear setting
5
6
Reserved (Fixed to OFF)
1
6
Reserved (Fixed to OFF)
7
7
8
8
1: Make sure to use EX600-MEC1 keeping switch 7 of Settings1 OFF because if it is ON, the LED’s on the product are turned OFF.
●Precautions for handling
•Handle the switches with care. Excessive force can break the switch.
•Switch 6 to 8 of the Settings1 and switch 6 to 8 of the Settings2 switches are not used (Never
turn them ON).
