Approx. 3 m
Thermo-con side User’s equipment side
YAMATE
15A125VAC
10A250VAC
Approx. 3 m
Thermo-con side
User’s equipment side
Approx. 3 m
Approx. 100 mm
Thermo-con side
User’s equipment sideUser’s equipment side
:
@

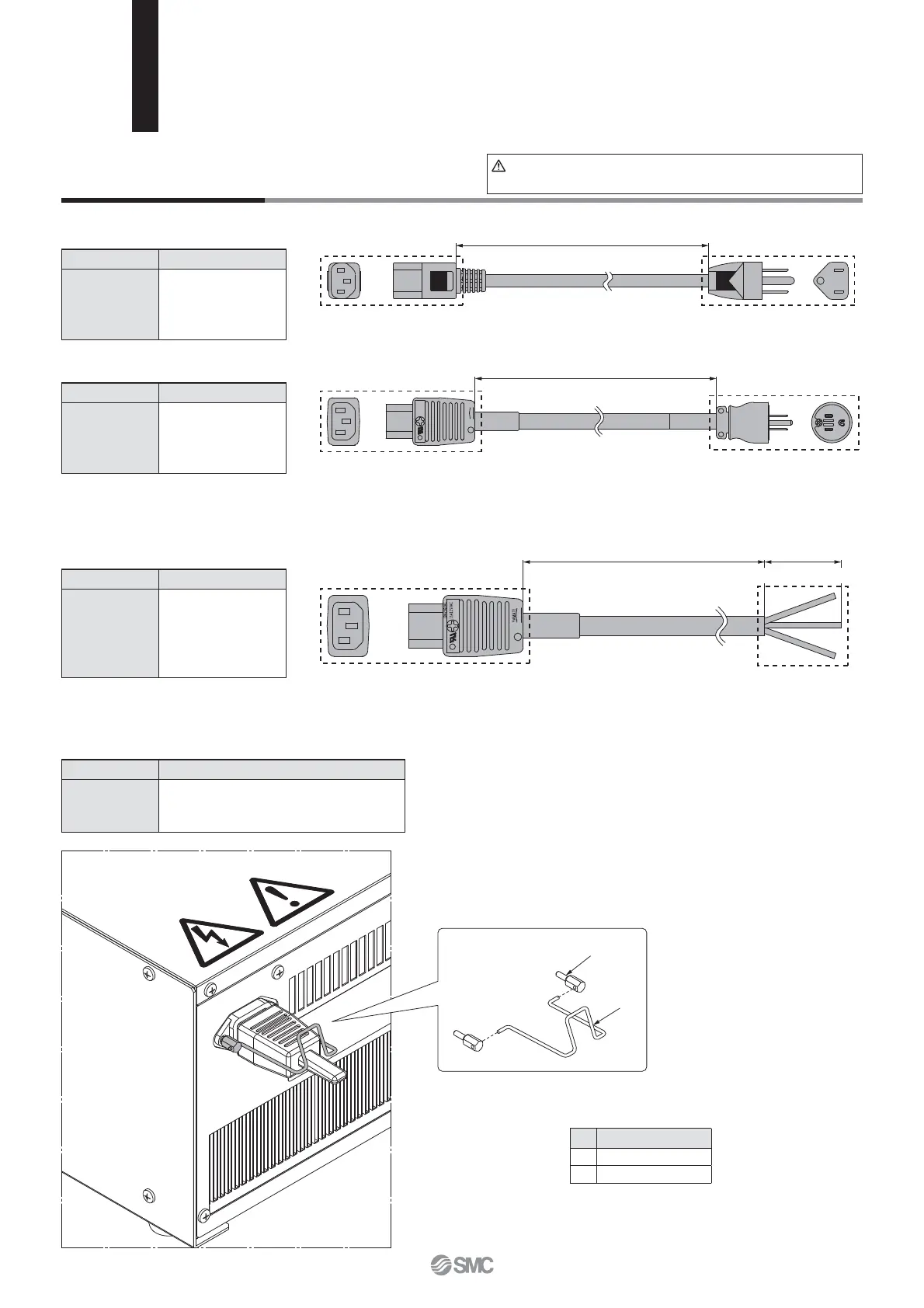

Series HECR
Optional Accessories
q Power Supply Cable
For single-phase 100/115 V AC type
∗ Not applicable for the 200 V type.
For single-phase 200 V AC type
∗ Also applicable for the 100 V AC type, but the connector for the
user’s equipment needs to be prepared by the user.
Part no. Applicable model
HRS-CA002
HECR002
HECR004
HECR006
HECR008
HECR010
∗ Applicable to the retaining clip.
Part no. Applicable model
HRS-CA003
HECR002
HECR004
HECR006
HECR008
∗ Applicable to the retaining clip.
Part no. Applicable model
HRS-CA001
HECR002
HECR004
HECR006
HECR008
∗ Not applicable to the retaining clip.
Retaining clip
Holds the connector on the thermo-con side in position.
Part no. Applicable power supply cable model
HRS-S0074
HRS-CA002
HRS-CA003
Power supply connector for accessory
Parts List
No. Description
q
Retaining clip
w
Holding screw
The power supply cable can only be used for the applicable
models shown below. Do not use it for other products.
