SMC Networks LEFS Series

- 23 -

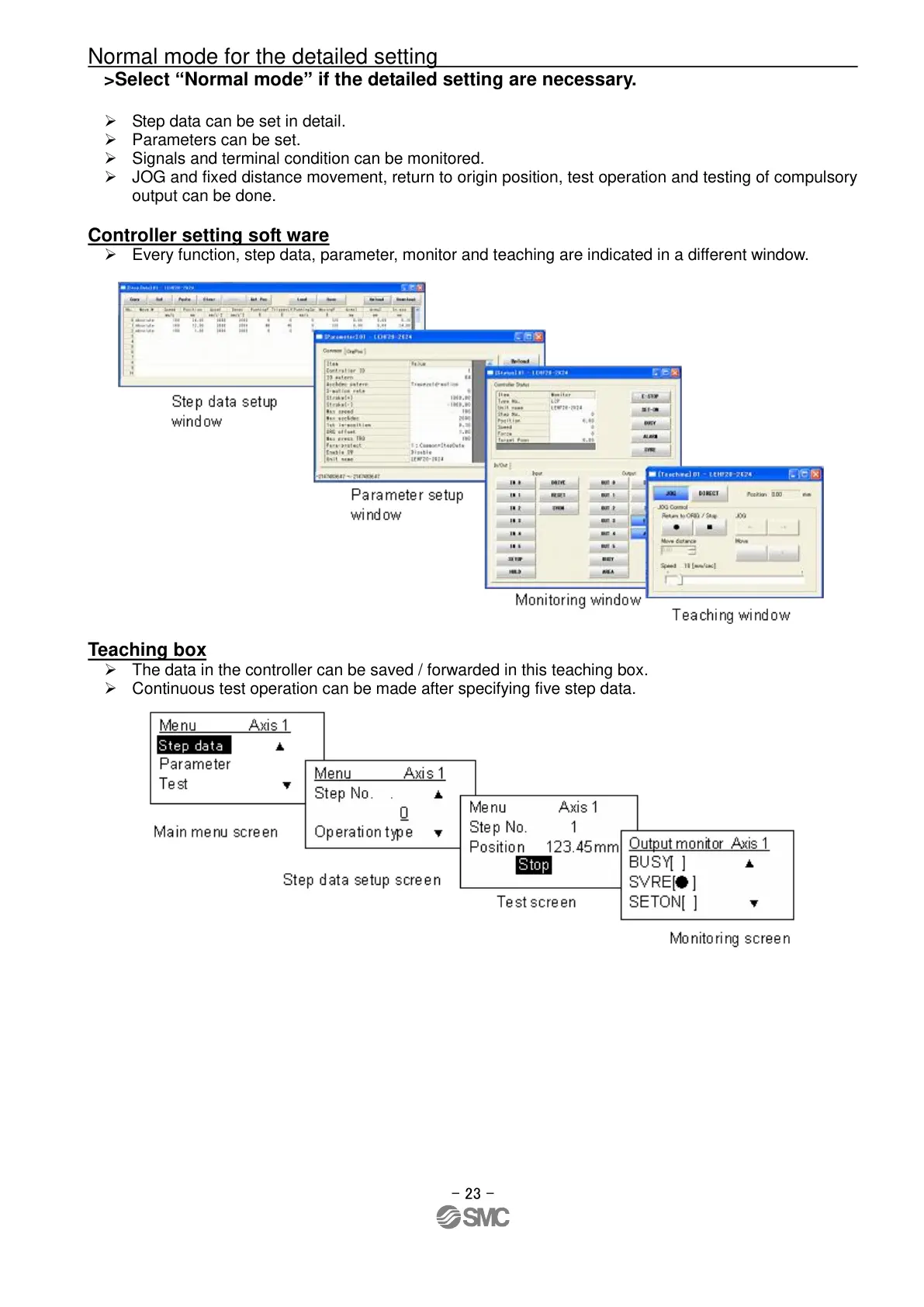

Normal mode for the detailed setting
>Select “Normal mode” if the detailed setting are necessary.
 Step data can be set in detail.
 Parameters can be set.
 Signals and terminal condition can be monitored.
 JOG and fixed distance movement, return to origin position, test operation and testing of compulsory
output can be done.
Controller setting soft ware
 Every function, step data, parameter, monitor and teaching are indicated in a different window.
Teaching box
 The data in the controller can be saved / forwarded in this teaching box.
 Continuous test operation can be made after specifying five step data.
