- 1 -

1. Foreword

When the booster regulator is disassembled and reassembled for maintenance, read and follow this

manual.

The maintenance period depends on the air quality and operating conditions, but when either of the

following situations occurs, the booster regulator should be considered to be reaching the end of its life, and

maintenance should be performed sooner.

1. The handle is bleeding all the time.

2. Exhaust sound can be heard at intervals of 10 to 20 seconds without air consumption on the

secondary side.

・Check that air pressure is exhausted from the IN and OUT sides.

・Disconnect piping. The size of tool prepared for disconnection should be suitable

for the type of piping.

・Remove the tank (VBAT05※, 10※) from the booster regulator. For removal, use a

hexagon wrench.

・The tools prepared for disassembling the booster regulator should be as shown in

◆Necessary tools◆ on the applicable pages.

・Disassemble in accordance with the procedure from page 2 to 4.

・Wipe off any dirt from the sliding face and dust from the mesh filter.

・Check the condition of parts. If there are any scratches or abrasion, replace the

part with a new one listed on page 5.

・If the silencer is clogged inside, replace it as well.

・Gather replacement parts to one place to prevent them getting mixed up during

reassembly.

・Assemble in accordance with the procedure from page 2 to 4.

・At the end, check you have not forgotten to assemble any parts or tighten

any screws.

・Put back the disassembled parts to their original position.

・Supply air, rotate the handle clockwise and set the pressure.

・Check for external leakage with soapy water.

・If any abnormal phenomenon is seen, please contact SMC sales branch.

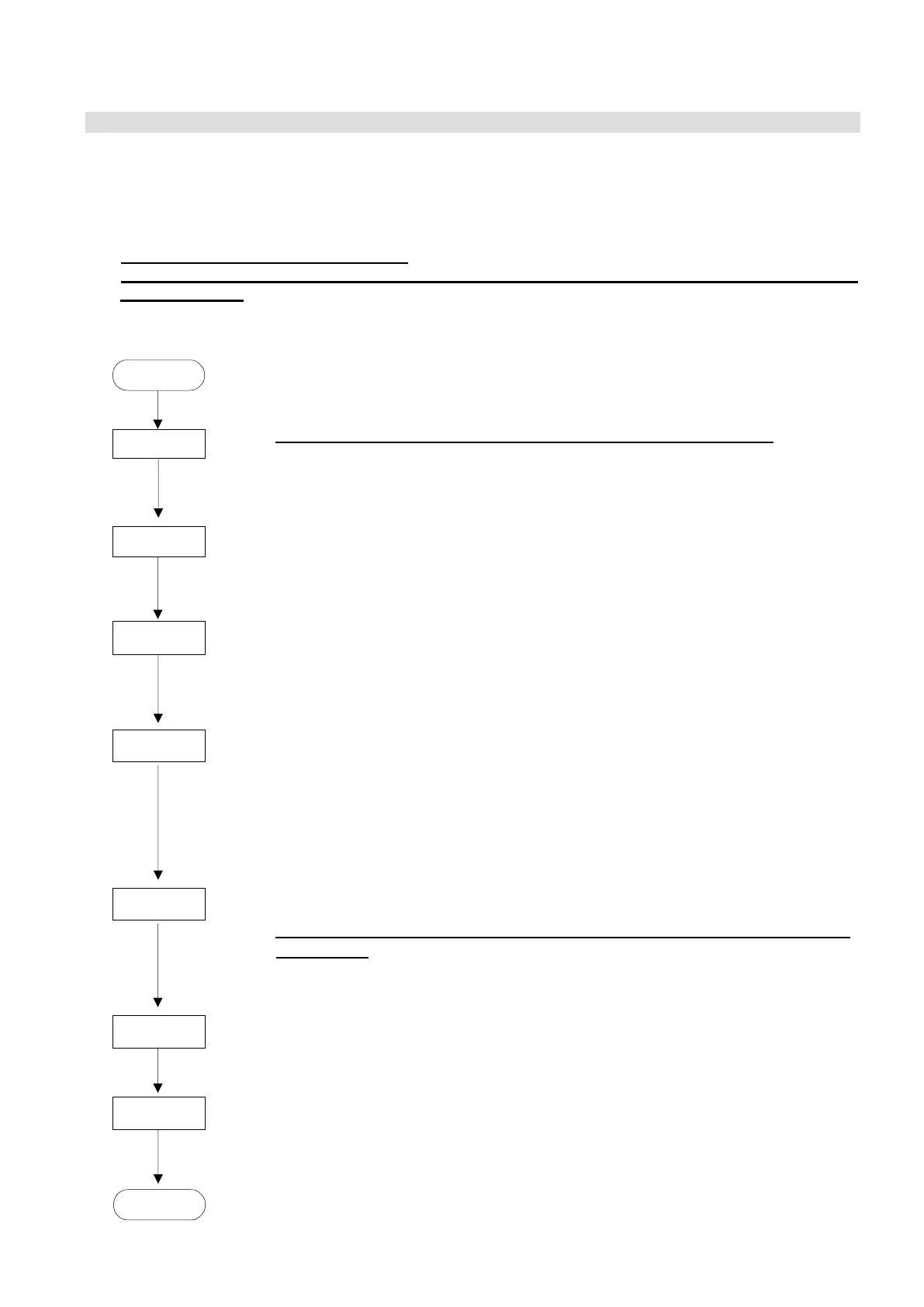

Preparation

Removal

Disassembly

Replacement

Reassembly

Inspection

Start

Mounting

Finish
