SMC Networks ZSE20 Series User Manual

®
RoHS
IP65
When only optional parts are required, order with the part numbers listed below.
Description Part no. Note
Bracket A
ZS-46-A1
Tapping screw: Nominal size 3 x 8 L (2 pcs.)
Bracket B
ZS-46-A2
Tapping screw: Nominal size 3 x 8 L (2 pcs.)
Panel mount adapter
ZS-46-B
—
Panel mount adapter + Front protection cover
ZS-46-D
—
Lead wire with connector
ZS-46-5F
5-core, 2 m, Waterproof (With waterproof cover)
Front protection cover
ZS-27-01
—
R1/8 piping adapter
ZS-46-N1
NPT1/8 piping adapter
ZS-46-N2
Options/Part Nos.
t Option 1
Symbol Description
—
Without lead wire
W
Lead wire
with
connector
(5-core, 2 m
lead wire,
With
waterproof
cover)
ZS-46-5F
With waterproof
cover
ZSE20B
(
F
)
/ISE20B Series

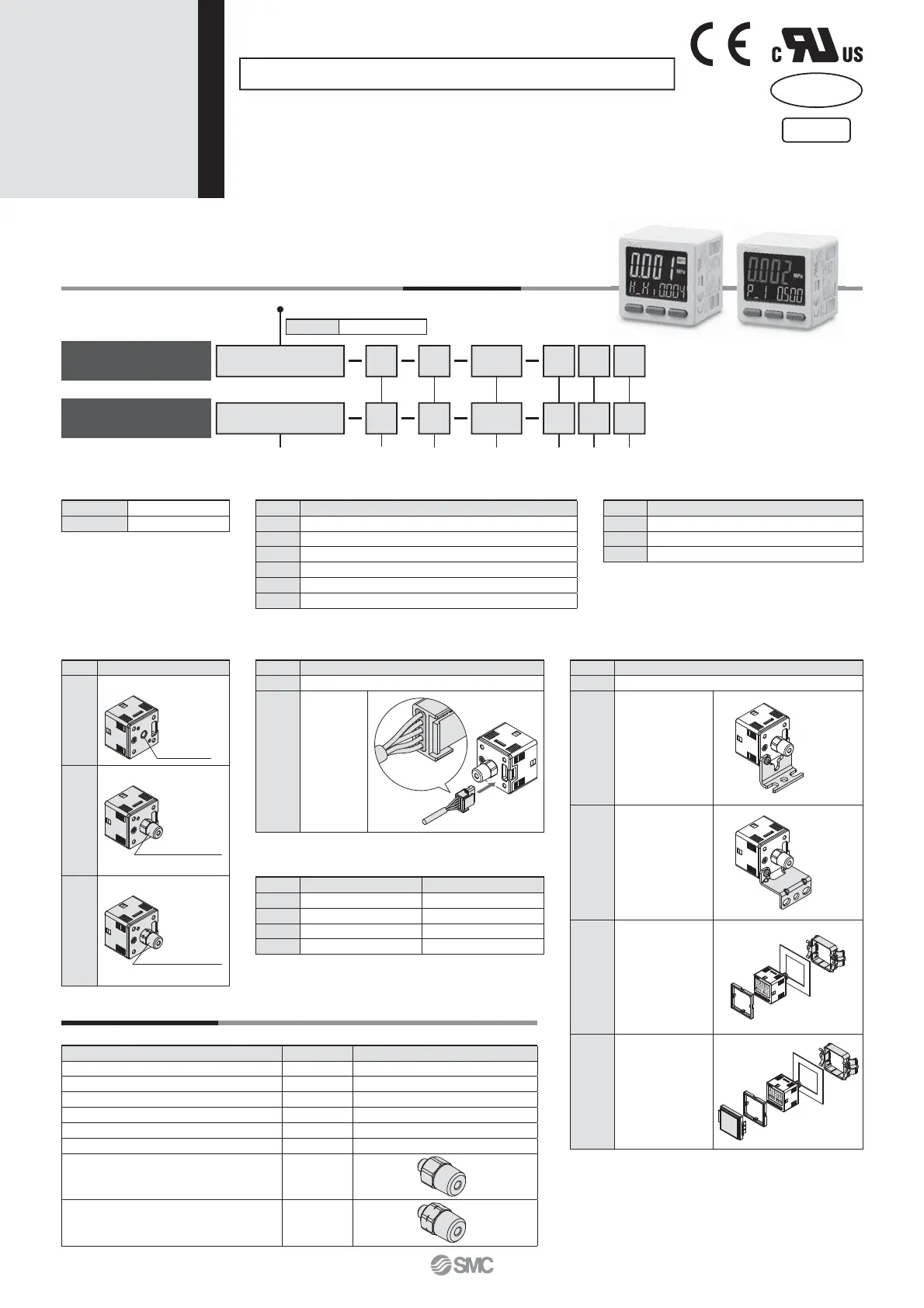

How to Order
ISE20B
ZSE20B
M5X
X
M
For positive pressure
For vacuum/
compound pressure
Rated pressure range
ISE20B
-0.1 to 1 MPa
q Rated pressure range
ZSE20B
0 to -101 kPa
ZSE20BF
-100 to 100 kPa
w Output specification
Symbol Description
R
NPN open collector 2 outputs + Analogue voltage output
∗
1
S
NPN open collector 2 outputs + Analogue current output
∗
1
T
PNP open collector 2 outputs + Analogue voltage output
∗
1
V
PNP open collector 2 outputs + Analogue current output
∗
1
X
NPN open collector 2 outputs + Copy function
Y
PNP open collector 2 outputs + Copy function
∗1 Can be switched to auto-shift or copy function
y Option 2
Symbol Description
—
None
A1
Bracket A
(Vertical
mounting)
ZS-46-A1
A2
Bracket B
(Horizontal
mounting)
ZS-46-A2
B
Panel mount
adapter
ZS-46-B
D
Panel mount
adapter + Front
protection cover
ZS-46-D
M M5
3-Screen Display High-Precision Digital Pressure Switch
2 Outputs + Analogue Output (Voltage/Current)
q wertyu
r Piping specification
Symbol Description
M5
M5 female thread
01
R1/8
N01
NPT1/8
Piping port
R1/8 Piping adapter
ZS-46-N1
NPT1/8 Piping adapter
ZS-46-N2
u Option 3
Symbol Operation manual
∗
1
Calibration certifi cate
∗
1
—
앪
—
Y
——
K
앪앪
T
—
앪
∗1 All texts are in both English and Japanese.
e Unit specification
Symbol Description
—
Unit selection function
M
SI unit only
∗
1
P
Unit selection function (Initial value psi)
∗1 Fixed unit: kPa, MPa
11
