∗1 For 20A/20B

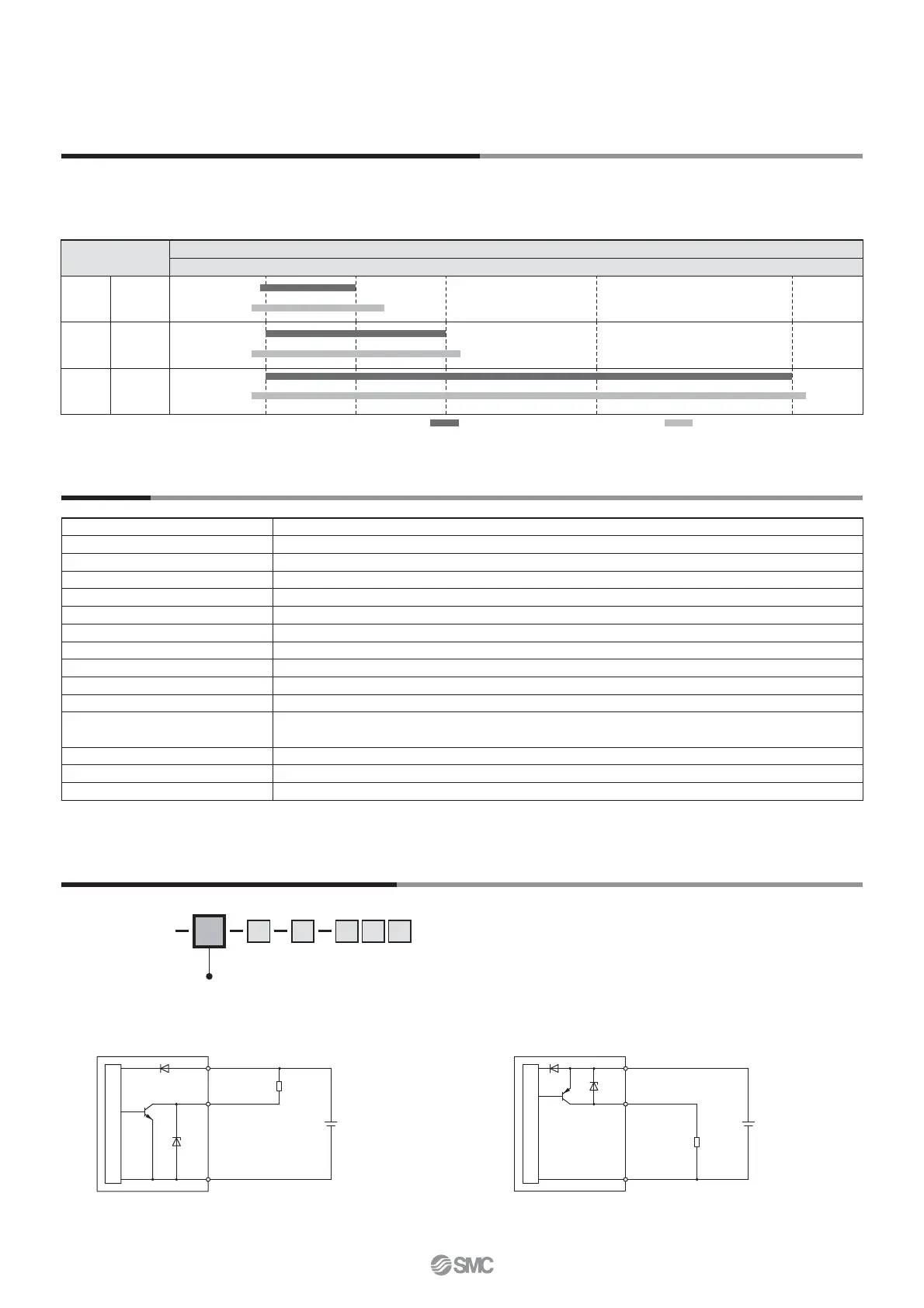

Internal Circuits and Wiring Examples
ZSE20(F)
ISE20
Output specifi cation
12 to 24 VDC
Brown DC (+)
Black OUT
Blue DC (−)
+
−
Main circuit
Load
12 to 24 VDC
Brown DC (+)
Black OUT
Blue DC (−)
+
−
Main circuit
Load
-N
NPN (1 output)
-P
PNP (1 output)
Set Pressure Range and Rated Pressure Range
Functions
Set the pressure within the rated pressure range.
The set pressure range is the range of pressure within which setting is possible.
The rated pressure range is the range of pressure that satisfi es the specifi cations (accuracy, linearity, etc.) of the switch.
Although it is possible to set a value outside the rated pressure range, the specifi cations cannot be guaranteed even if the value stays within the set pressure range.
Rated pressure range of the switch Set pressure range of the switch
Switch
Pressure range
−100 kPa 0 100 kPa 500 kPa 1 MPa
For
vacuum
pressure
ZSE20
ZSE20A
ZSE20B
For
compound
pressure
ZSE20F
ZSE20AF
ZSE20BF
For
positive
pressure
ISE20
ISE20A
ISE20B
Sub screen setting function The display of the sub screen can be selected.
Auto-preset function This function calculates a rough set value automatically based on the on-going operation.
Display value fine adjustment function
Evens out deviations in the displayed value
Peak value indication function Can retain the maximum pressure value displayed during measurement
Bottom value indication function Can retain the minimum pressure value displayed during measurement
Key-lock function (Selectable secret code)
The keyboard can be locked to prevent the accidental operation of the operation switch.
Zero-clear function The pressure display can be set to zero when the pressure is open to the atmosphere.
Error indication function This function displays the error location and content when a problem or error has occurred.
Anti-chattering function Prevents possible malfunctions due to sudden fluctuations in the primary pressure by adjusting the delay time
Unit selection function Can convert the display value
Power-saving mode Reduces power consumption
Display resolution switch function
Converts the display resolution from the normal value of 1/1000 to 1/100
Can reduce flickering of the monitor
kPa ↔ MPa switch function Converts the unit between kPa and MPa
Copy function
∗
1
The settings of the master sensor can be copied to the slave sensors.
Auto-shift function
∗
1
Measures the pressure at the time of external input and uses it as a reference to correct the set value of the switch
−101 kPa
−105 kPa
0
10 kPa
−100 kPa
100 kPa
−105 kPa 105 kPa
−100 kPa
1 MPa
−105 kPa
(−0.105 MPa)
1.05 MPa
13
ZSE20
첸
(
F
)
/ISE20
첸
Series
