RoHS
IP65
ZSE20C
(
F
)
/ISE20C
(
H
)
Series

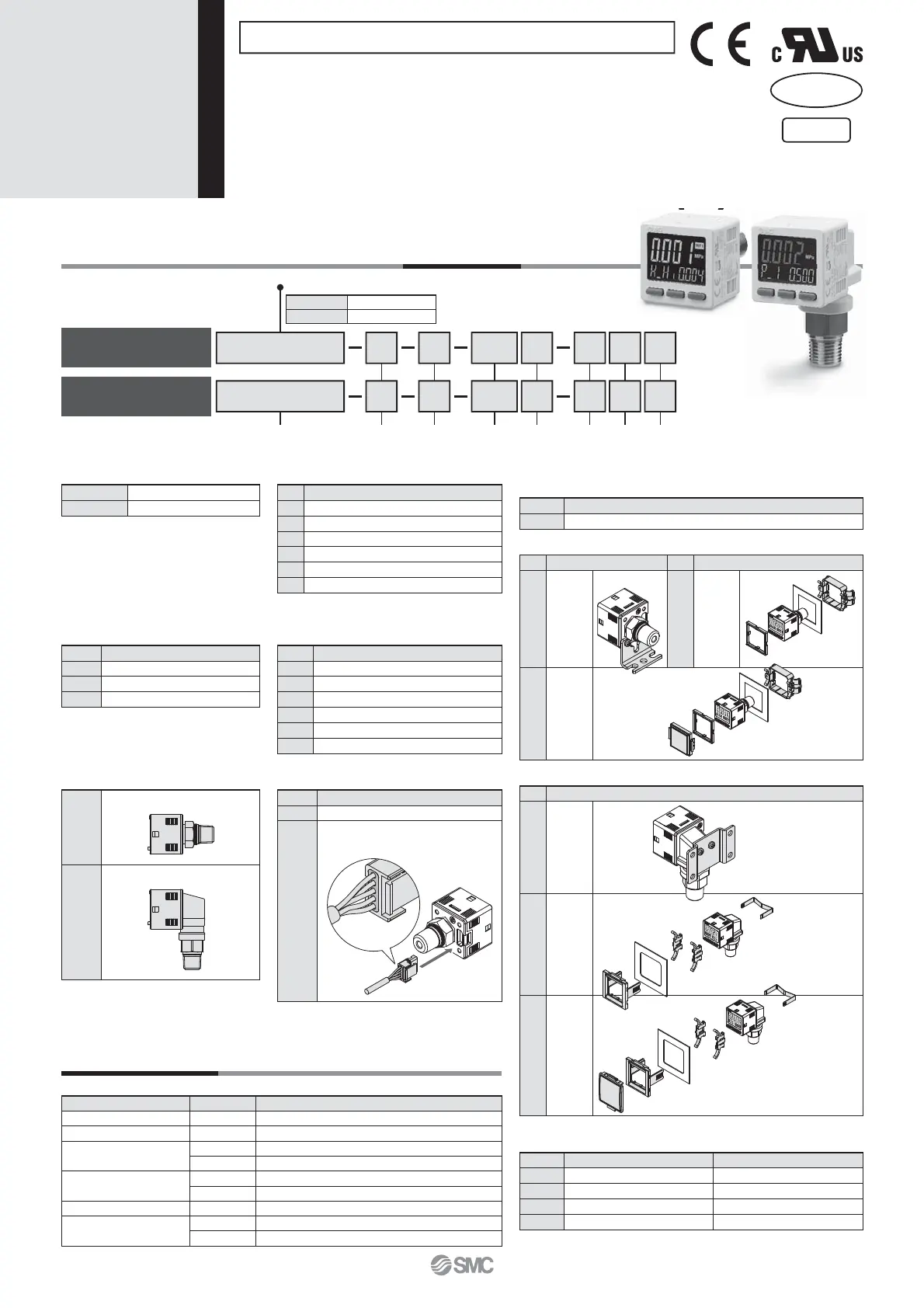

How to Order
ISE20C
ZSE20C
02T
T
M
For positive pressure
For vacuum/
compound pressure
Rated pressure range
ISE20C
-0.1 to 1 MPa
ISE20CH
-0.1 to 2 MPa
q Rated pressure range
ZSE20C
0 to -101 kPa
ZSE20CF
-100 to 100 kPa
w Output specification
Symbol
Description
R
NPN open collector 2 outputs + Analogue voltage output
∗
1
S
NPN open collector 2 outputs + Analogue current output
∗
1
T
PNP open collector 2 outputs + Analogue voltage output
∗
1
V
PNP open collector 2 outputs + Analogue current output
∗
1
X
NPN open collector 2 outputs + Copy function
Y
PNP open collector 2 outputs + Copy function
∗1
Can be switched to auto-shift or copy function
r Piping specification
Symbol
Description
02
R1/4 (M5 female threaded)
N02
NPT1/4 (M5 female threaded)
F02
G1/4 (M5 female threaded)
C01
Rc1/8
A2
URJ1/4 (Face seal fitting)
B2
TSJ1/4 (Compression fitting)
t Piping direction
—
Rear ported
L
Bottom ported
When only optional parts are required, order with the part numbers listed below.
Description Part no. Note
Bracket A
ZS-46-A1
For rear ported/Tapping screw: Nominal size 3 x 8 L (2 pcs.)
Bracket C
ZS-46-E
For bottom ported/Tapping screw: Nominal size 3 x 10 L (2 pcs.)
Panel mount adapter
ZS-46-B
Rear ported
ZS-35-B
Bottom ported
Panel mount adapter +
Front protection cover
ZS-46-D
Rear ported
ZS-35-E
Bottom ported
Lead wire with connector
ZS-46-5F
5-core, 2 m, Waterproof (With waterproof cover)
Front protection cover
ZS-27-01
Rear ported
ZS-35-01
Bottom ported
Options/Part Nos.
M 02
e Unit specification
Symbol
Description
—
Unit selection function
M
SI unit only
∗
2
P
Unit selection function (Initial value psi)
∗
2
∗2 Fixed unit: kPa, MPa
3-Screen Display High-Precision
Digital Pressure Switch For General Fluids
2 Outputs + Analogue Output (Voltage/Current)
q w e r t yui
y Option 1
Symbol
Description
—
Without lead wire
W
Lead wire with connector, 5-core
(2 m lead wire, With waterproof cover)
ZS-46-5F
With waterproof
cover
u Option 2
∗
Note that the optional parts that can be used vary depending on the piping direction.
Symbol Description
—
None
Rear ported (t Piping direction: —)
Symbol
Description
Symbol
Description
A1
Bracket
A
ZS-46-A1
B
Panel
mount
adapter
ZS-46-B
D
Panel
mount
adapter
+
Front
protection
cover
ZS-46-D
Bottom ported (t Piping direction: L)
Symbol
Description
A3
Bracket
C
ZS-46-E
E
Panel
mount
adapter
ZS-35-B
F
Panel
mount
adapter
+
Front
protection
cover
ZS-35-E
i Option 3
Symbol Operation manual
∗
4
Calibration certifi cate
∗
4
—
앪
—
Y
——
K
앪앪
T
—
앪
∗4 All texts are in both English and Japanese.
19
