ACM1_TAU_UserManual_En
Page 25 of 35
SME s.p.a. Via della Tecnica 40 Z.I.
36071 ARZIGNANO (VI) ITALY
Phone +39 0444 470511 - Fax +39 0444 451803
info@grupposme.com - www.grupposme.com
3.5.5 Speed Sensor Inputs
Speed Sensor Inputs on Controller
Pin
Meaning
Pin
Meaning
K1 - 21
+12V OUT
K2 - 1
+5V OUT
K2 - 4
Quad Encoder Channel B
K2 - 5
Quad Encoder Channel A
K2 - 9
Negative Logic Supply
Wiring
The Encoder Channels are 20mA Pull-up with V
L
≤ 1V and V
H
3,5V.

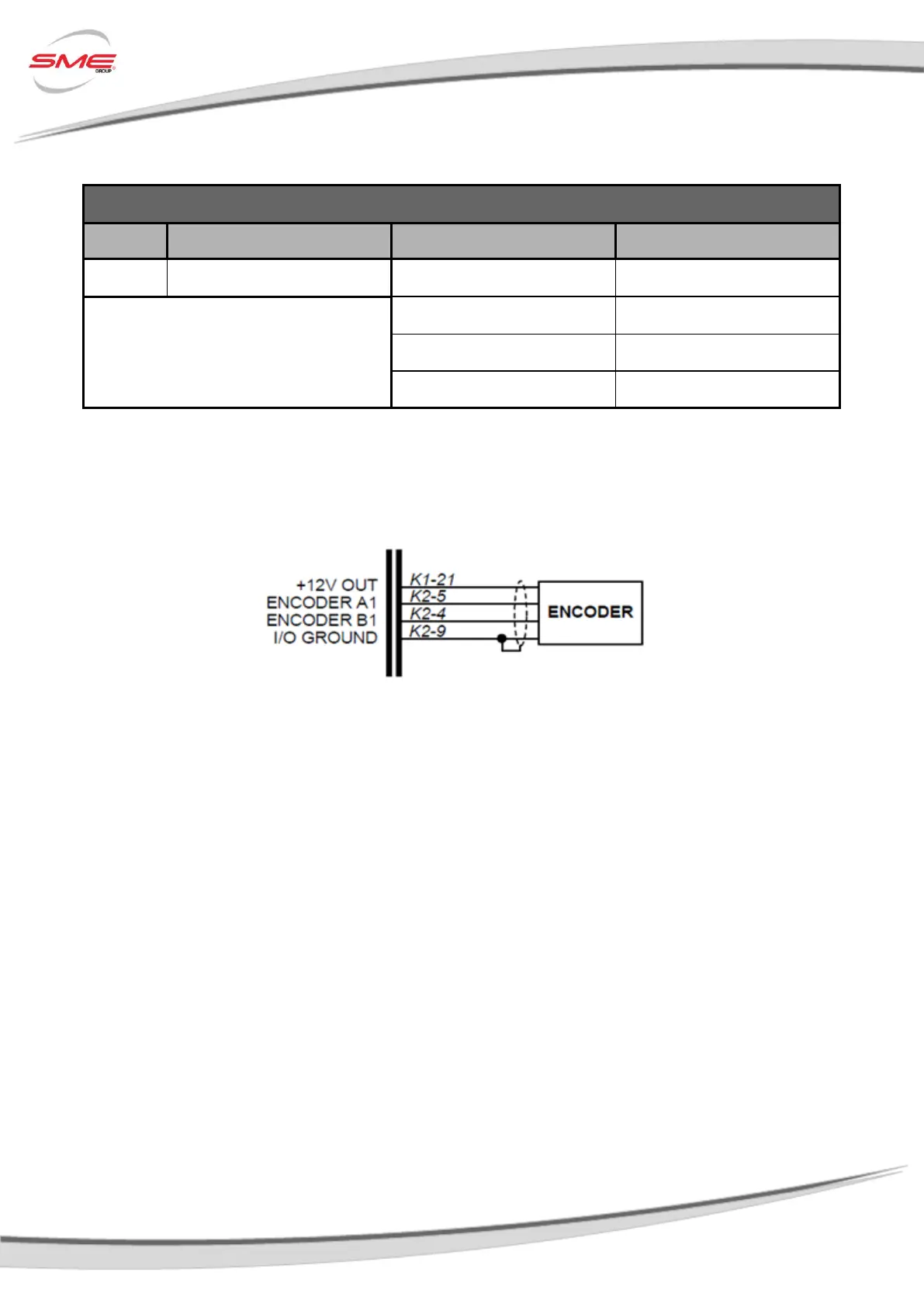

Figure 12 - Encoder Wiring
