3.5.6 Thermal Probe
Speed Sensor Inputs on Controller
Pin
Meaning
Pin
Meaning
K1 - 18
Negative Logic Supply
K2 - 10
Motor Temperature Probe
Wiring
The Controller can acquire the Motor Temperature trough the Thermal Sensor:

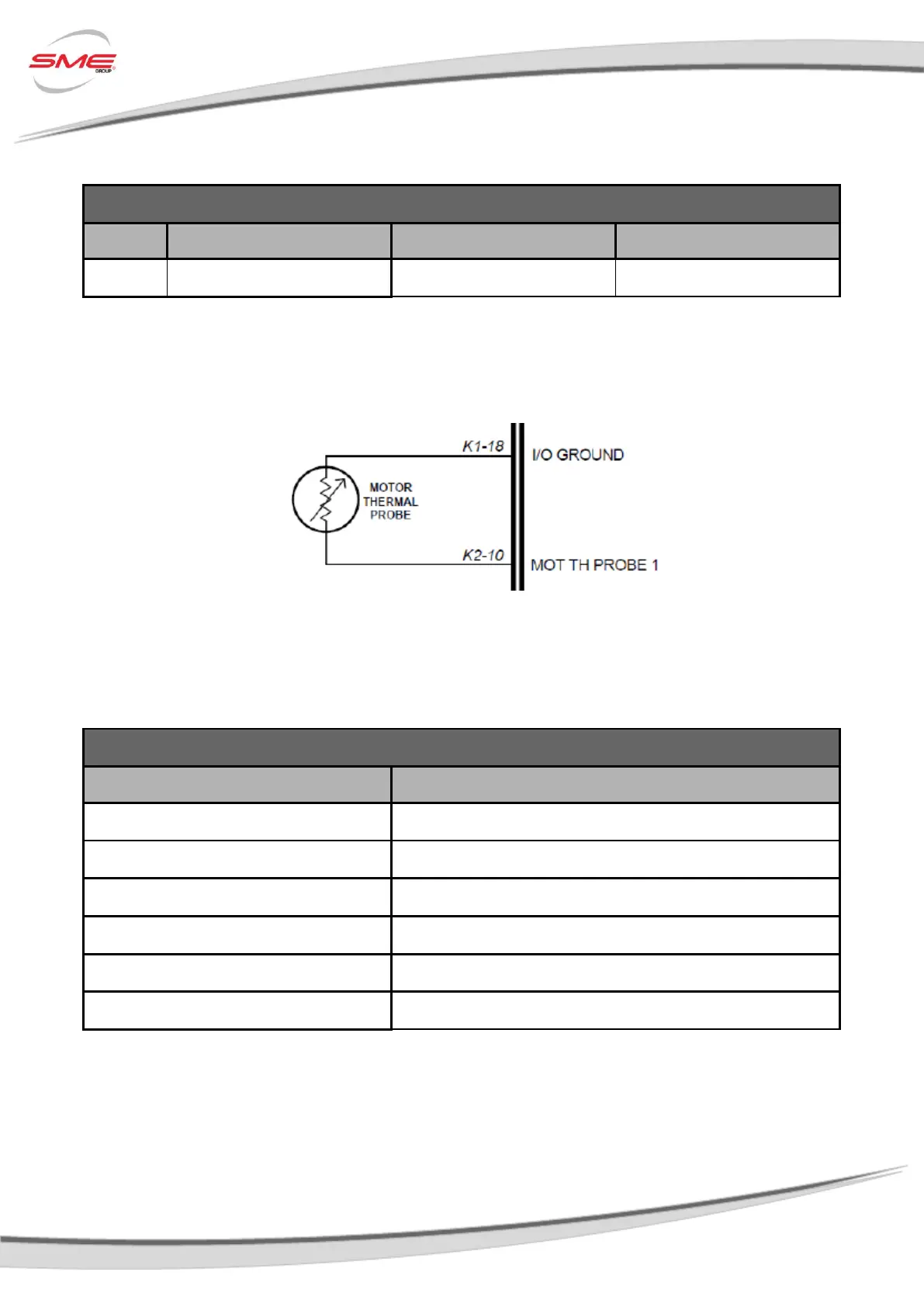

Figure 13 - Thermal Probe Wiring
The following sensors are supported:
Thermal Probe supported on Controller
Code
Meaning
DKF103N3
NTC – Negative Temperature Coefficient
KTY84-130/150
PTC – Positive Temperature Coefficient
KTY83-121/122
PTC – Positive Temperature Coefficient
PT 1000
PTC – Positive Temperature Coefficient
SWITCH - (NO)
Normally Open Switch
SWITCH - (NC)
Normally Closed Switch
