Installation
100

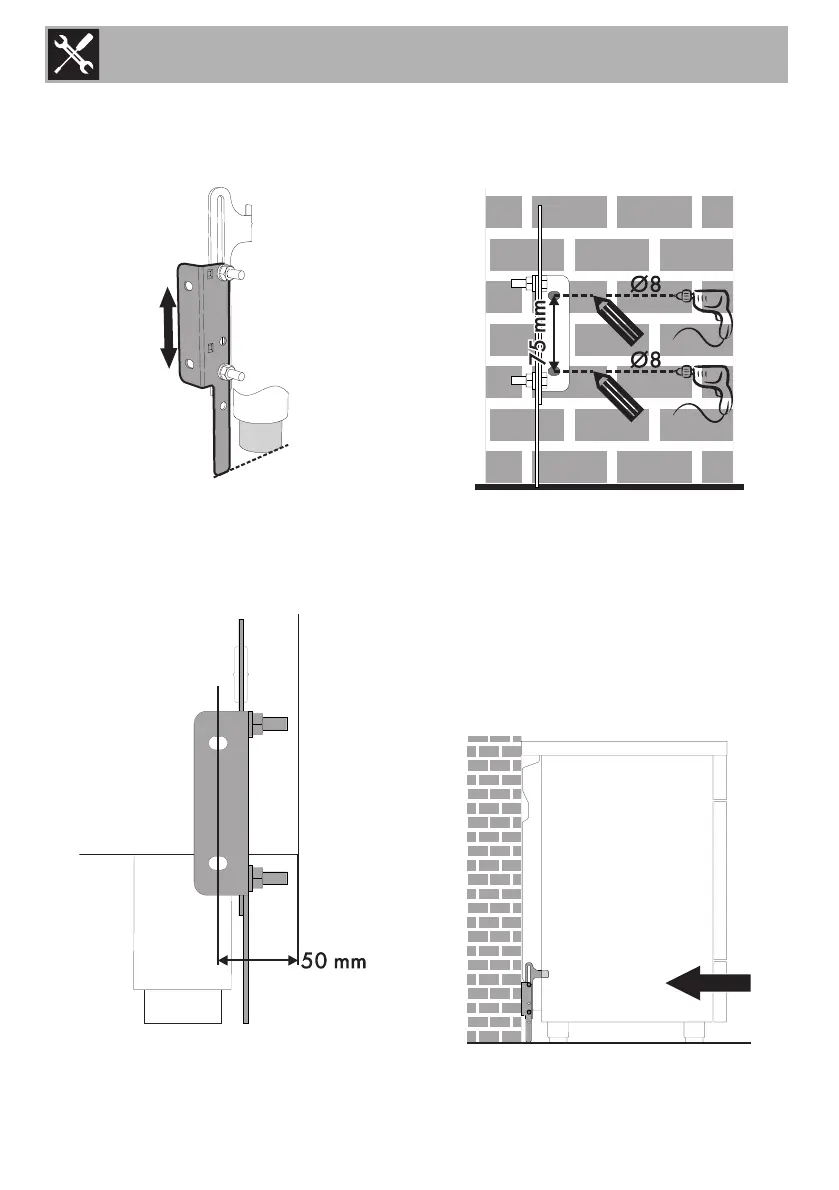

5. Align the base of the fastening bracket
with the ground and tighten the screws
to fix the measurements.
6. Use 50 mm for the distance from the
side of the appliance to the bracket
holes.
7. Move the bracket onto the wall and
mark the position of the holes to be
drilled in the wall.
8. After drilling the holes in the wall, use
wall plugs and screws to fasten the
bracket to the wall.
9. Push the cooker towards the wall,
and at the same time, insert the bracket
in the plate fastened to the rear of the
appliance.
