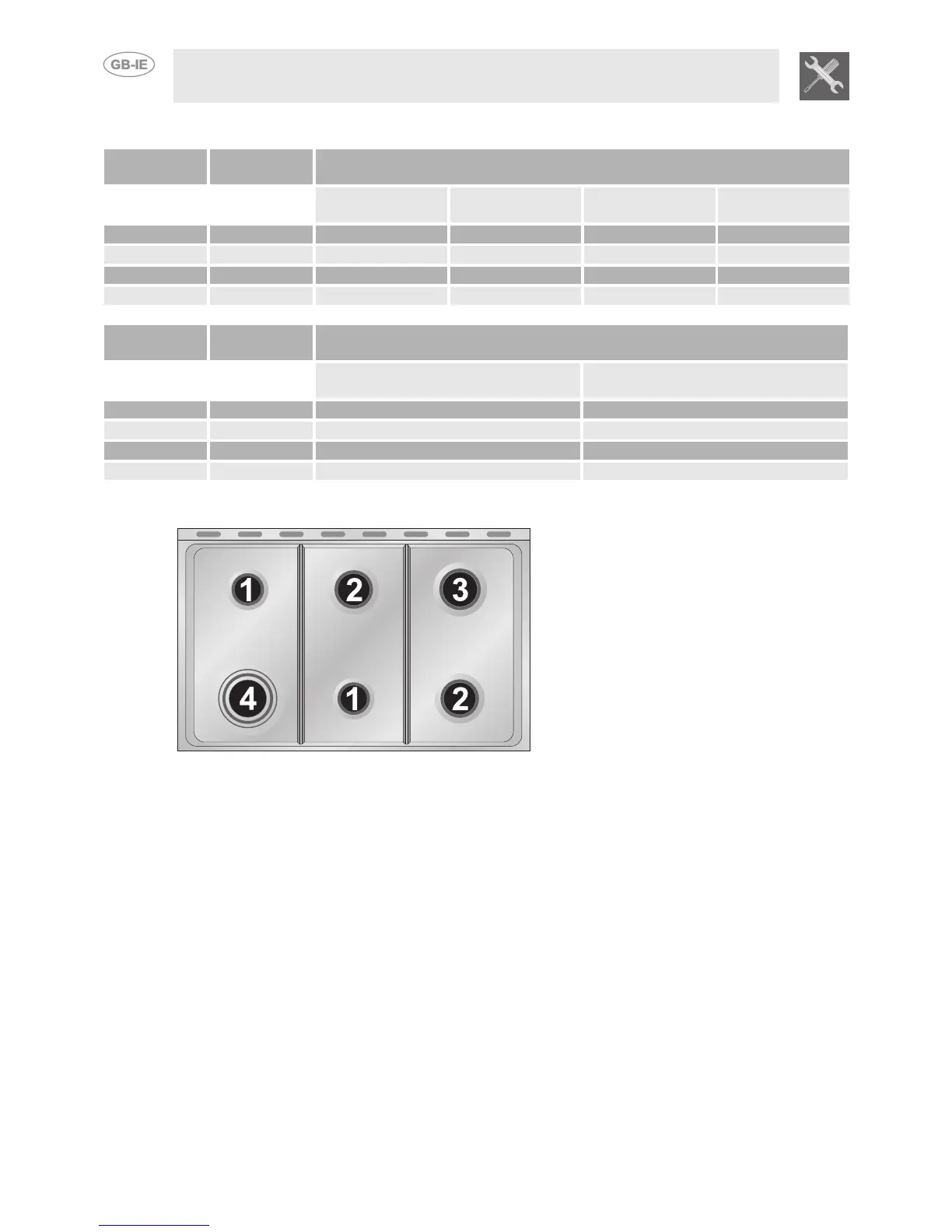

15.2 Burner and nozzle characteristics table
Burner
Rated heating
capacity (kW)
LPG – G30/G31 28/37 mbar
Nozzle diameter
1/100 mm
Reduced flowrate
(W)
Flowrate
g/h G30
Flowrate
g/h G31
Auxiliary 1.05 50 400 76 75
Semi rapid 1.8 65 500 131 129
Rapid 3.0 85 800 218 214
Ultra-rapid 3.9 100 1600 284 279
Burner
Rated heating
capacity (kW)
NATURAL GAS – G20 20 mbar
Nozzle diameter
1/100 mm
Reduced flowrate
(W)
Auxiliary 1.05 72 (X) 400
Semi rapid 1.8 97 (Z) 500
Rapid 3.0 115 (Y) 800
Ultra-rapid 3.9 135 (K) 1600
15.3 Arrangement of the burners on the hob
BURNERS
1. Auxiliary
2. Semi-rapid
3. Rapid
4. Ultra-rapid
min. and max. Ø (in
cm)
12 - 14
16 - 24
18 - 26
18 - 26
