3) 4)
3) Use the same height on the wall to drill the
holes for fastening the brackets. The distance
between the centres of the holes is given in the
diagram above.
4) Before tightening the brackets fully to the wall,
check that the index on the brackets is at the same
height as the index on the back of the appliance.
Position the appliance, taking care that the
brackets are correctly inserted.

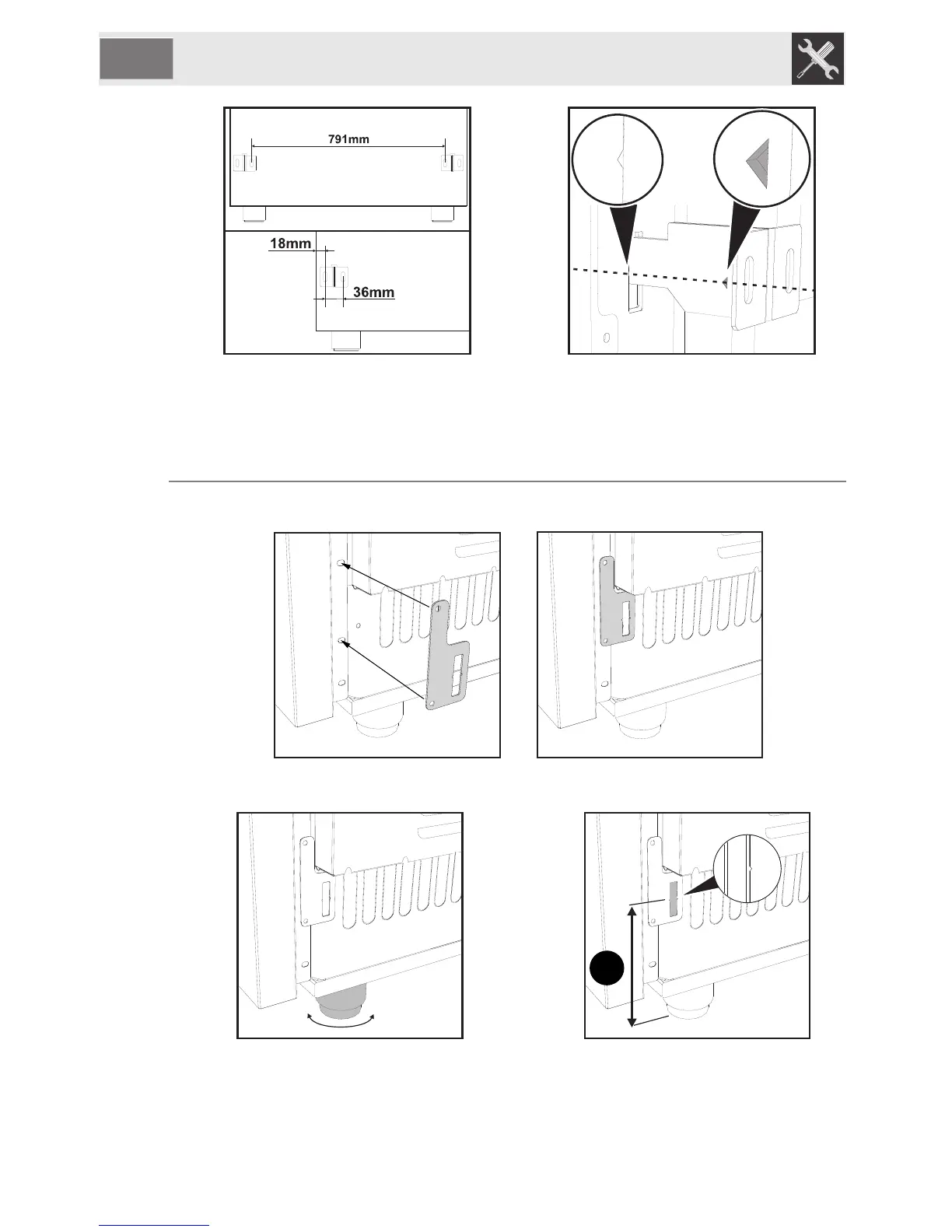

11.10 C9GMXA Wall mounting brackets
The fastening system provided must be installed to ensure the appliance is stable. If installed correctly,
this system prevents the appliance tipping over.
1)
1)
Secure the centering brackets for the wall brackets on both sides at the rear of the cooker as shown in
the figure.
2) 3)
2) Use the adjustable feet to level the appliance at
the required height.
3) Measure the distance from the index of the
opening to the floor.
