Instructions for the installer
44
3.2 Regulation for LPG

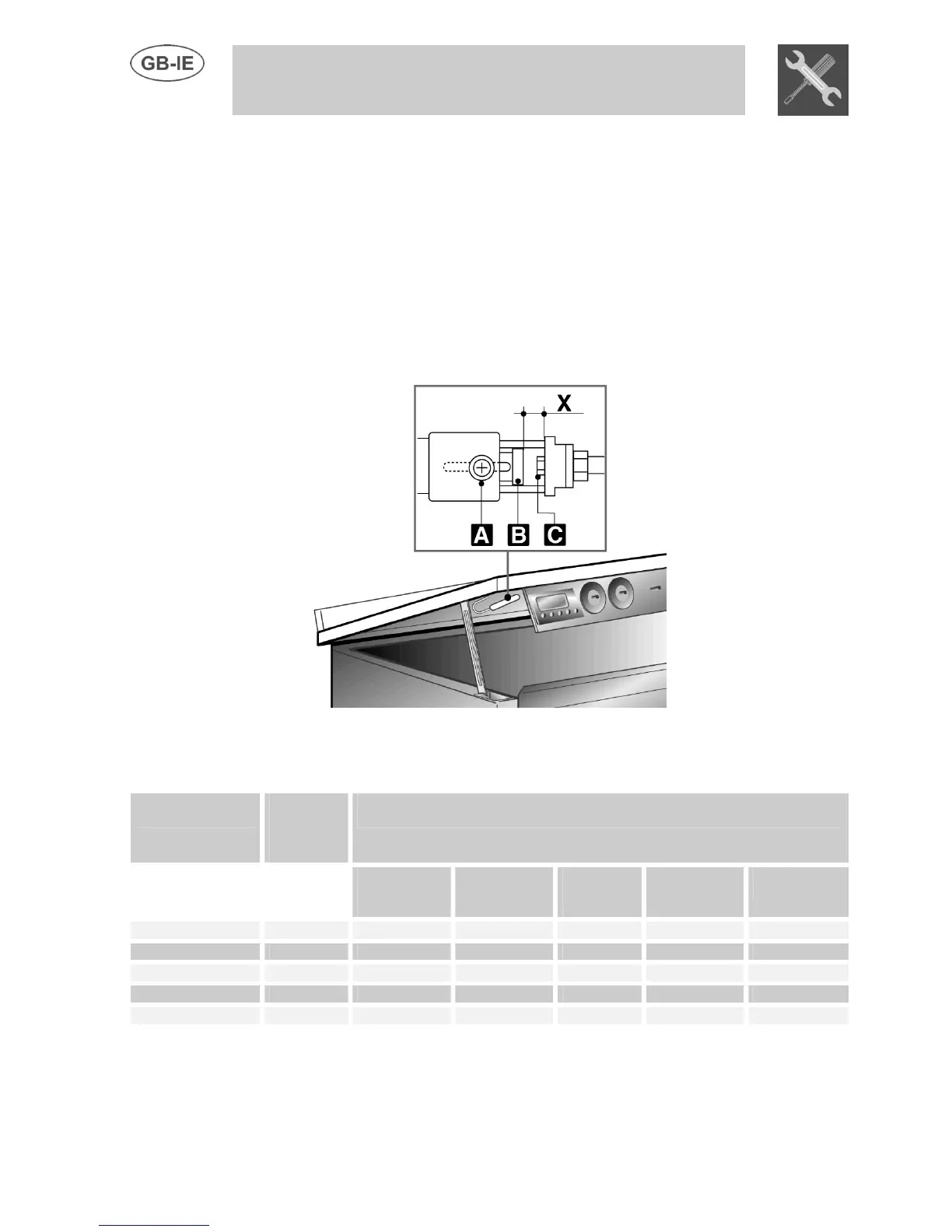

Loosen screw A and push air regulator B to the bottom.
With a 7 mm wrench, remove nozzle C and replace it with the proper one
(follow the instructions on the reference tables for the type of gas to be
used). The torque wrench setting of the nozzle must not exceed 3 Nm.
Regulate the air by sliding regulator B until reaching distance “X” shown
in the table in paragraph “3.4 Regulation of primary air”. Lock regulator B
by tightening screw A.
Burner
Rated
heating
capacity
(kW)
LPG – G30/G31 28/37 mbar
Nozzle
diameter
1/100 mm
By-pass
mm
1/100
Reduced
flowrate
(W)
Flowrate
g/h G30
Flowrate
g/h G31
Auxiliary 1.05 48 30 380 76 75
Semi rapid 1.65 62 30 380 120 118
Rapid 2.55 76 45 800 185 182
Ultra rapid 3.25 85 65 1400 236 232
Fish pan 1.9 65 48 800 138 136
