62 - INSTALLATION 91477B159/A
The nozzles not provided are available at Authorised Service Centres.

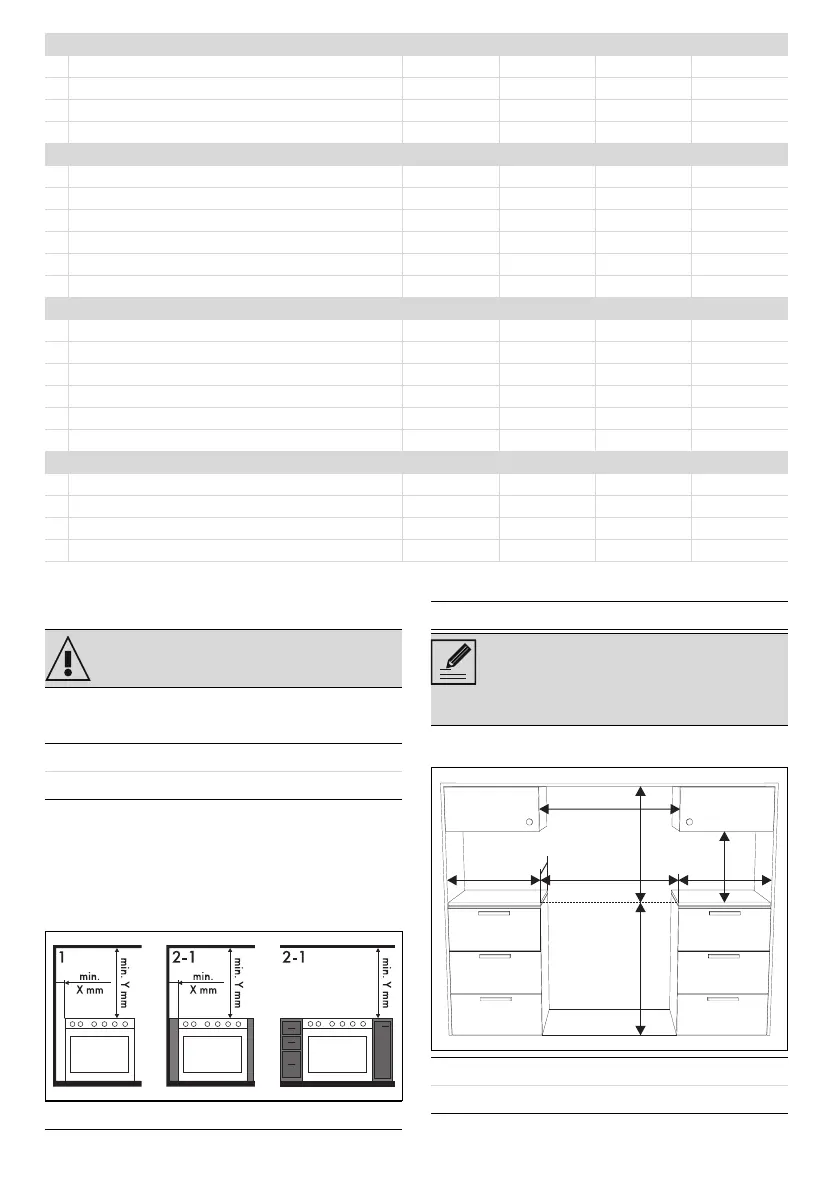

Positioning
Depending on the type of installation, this
appliance belongs to classes:
The appliance can be placed against walls that
are higher than the work surface, at a minimum
distance of X mm from the side of the appliance.
Any wall units installed above the appliance’s
worktop must be positioned at least Y mm from
it.
Appliance overall dimensions
4 Natural Gas G2.350 - 13 mbar AUX SR R UR
Rated heating capacity (kW)
1.0 1.8 2.9 4.0
Nozzle diameter (1/100 mm)
94 120 165 210
Pre-chamber (printed on nozzle)
(Y) (Y) (F3) (H3)
Reduced flow rate (W)
400 500 800 1600
5 LPG G30/31 - 30/37 mbar AUX SR R UR
Rated heating capacity (kW)
1.01.752.9 4.0
Nozzle diameter (1/100 mm)
50 65 85 102
Pre-chamber (printed on nozzle)
----
Reduced flow rate (W)
400 500 800 1600
Rated flow rate G30 (g/h)
73 127 211 291
Rated flow rate G31 (g/h)
71 125 207 286
6 LPG G30/31 - 37 mbar AUX SR R UR
Rated heating capacity (kW)
1.0 1.8 2.9 4.0
Nozzle diameter (1/100 mm)
50 65 81 94
Pre-chamber (printed on nozzle)
----
Reduced flow rate (W)
450 550 800 1600
Rated flow rate G30 (g/h)
73 131 211 291
Rated flow rate G31 (g/h)
71 129 207 286
7 Town gas G110 – 8 mbar AUX SR R UR
Rated heating capacity (kW)
1.0 1.8 2.8 3.8
Nozzle diameter (1/100 mm)
145 185 260 340
Pre-chamber (printed on nozzle)
/8 /2 /3 /15
Reduced flow rate (W)
400 500 800 1400
See General safety instructions.
Class 1 Free-standing
Class 2 - subclass 1 Built-in
X 150 mm
Y 750 mm
If a hood is installed above the
appliance, refer to the hood instructions
manual to make sure the correct
clearance is left.
A 900 mm
B 600 mm
