Installation
47
EN

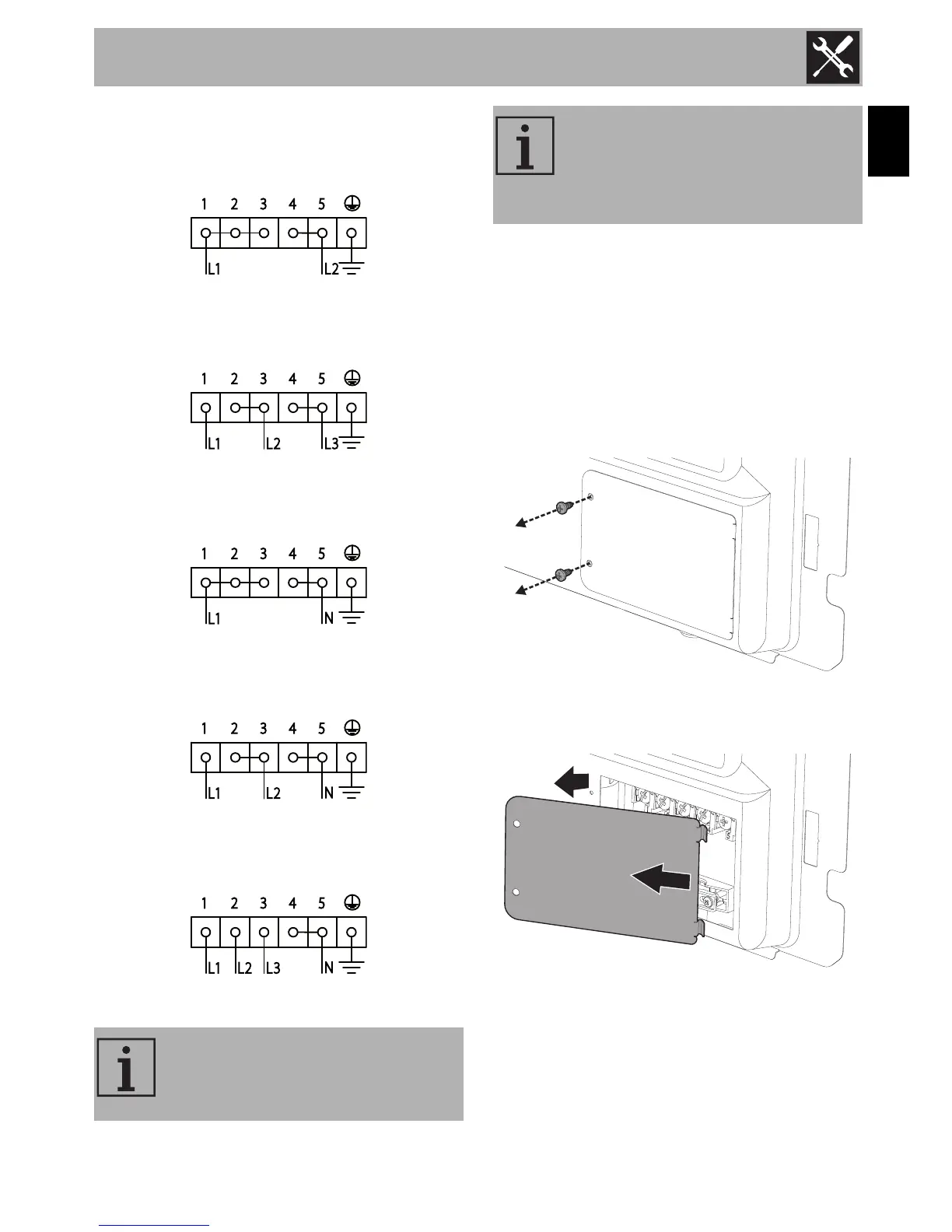

The appliance can work in the following
modes:
• 220-240 V 2~
3 x 2.5 mm² three-pole cable.
• 220-240 V 3~
4 x 2.5 mm² four-pole cable.
• 220-240 V 1N~
3 x 2.5 mm² three-pole cable.
• 380-415 V 2N~
4 x 2.5 mm² four-pole cable.
• 380-415 V 3N~
5 x 1.5 mm² five-pole cable.
5.6 Access to the terminal board
(depending on the model)
Access via the plate
To connect the power supply cable, access
to the terminal board on the rear cover:
1. Remove the screws securing the lid to the
rear cover.
2. Slightly turn the lid and remove it from its
housing.
The values indicated above refer
to the cross-section of the internal
conductor.
The aforementioned power cables
are sized taking into account the
coincidence factor (in compliance
with standard EN 60335-2-6).
