Instructions for the Installer
6
3. PREPARE BUILT–IN OVEN
WARNING
EXCESSIVE WEIGHT HAZARD
- Use two or more people to move and install the oven
- Failure to do so can result in back or other injury.
IMPORTANT: This appliance must be integrated in any cabinets made of material which is heat resistant
up to temperatures of 194°F-90°C.

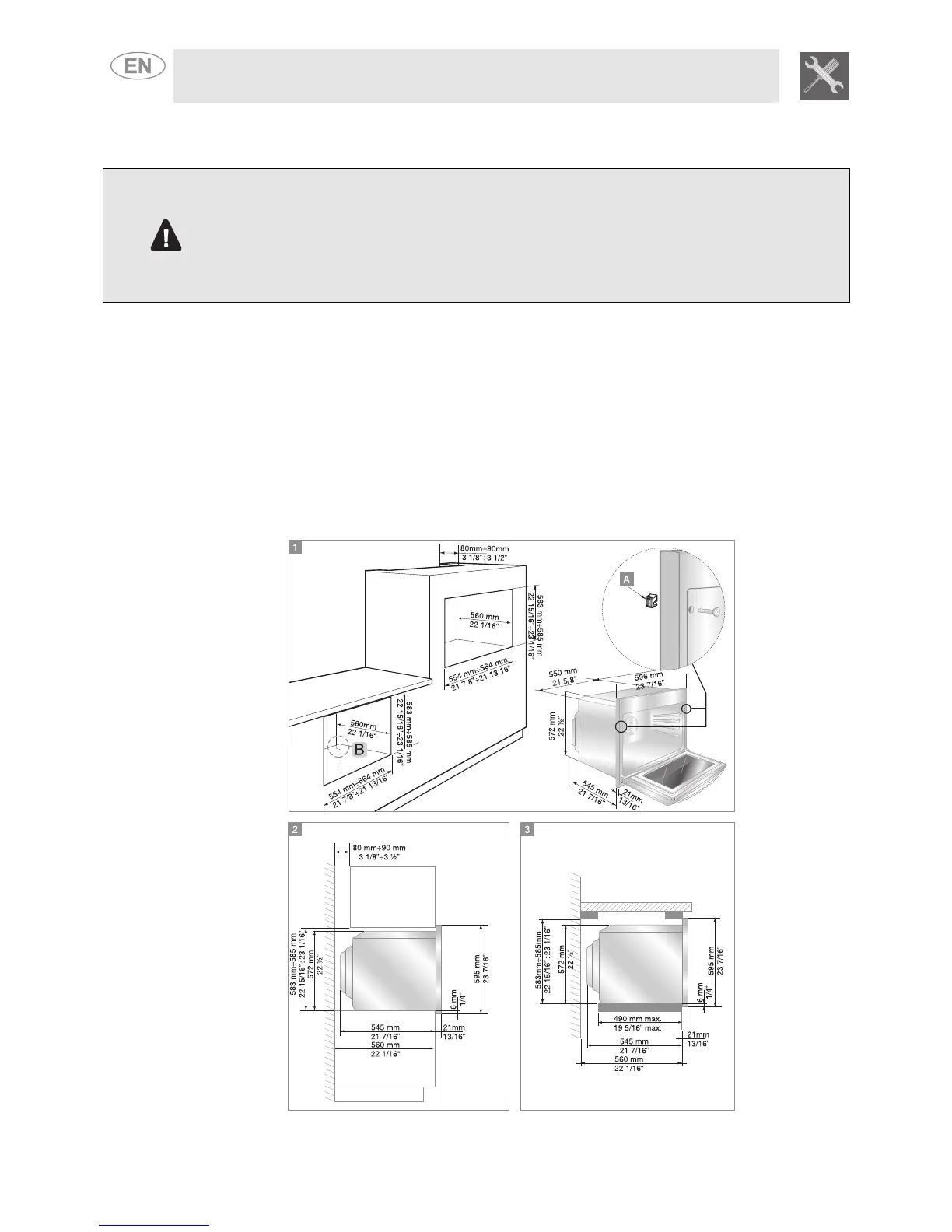

Keep to the dimensions indicated in pictures 1, 2, 3. For under-worktop positioning, keep to the
dimensions indicated in pictures 1 and 3. For column positioning, keep to the dimensions indicated in
pictures 1 and 2.
Make sure the 2 spacers “A” are fitted inside the cornice.
Remember that the upper/rear par t of the cabinet must have an opening with a depth of 3 1/8” - 3 1/2” /
80 – 90 mm for proper air ventilation. The same opening must be guaranteed also in the rear/lower part
of the cabinet in under worktop installation, as shown in part B of pictures no. 1.
