Instructions for the installer
30
Carefully trim the surplus away from
edge beyond the seal. The dimensions
given in figure 2 refer from the hole to
the inside of the seal.

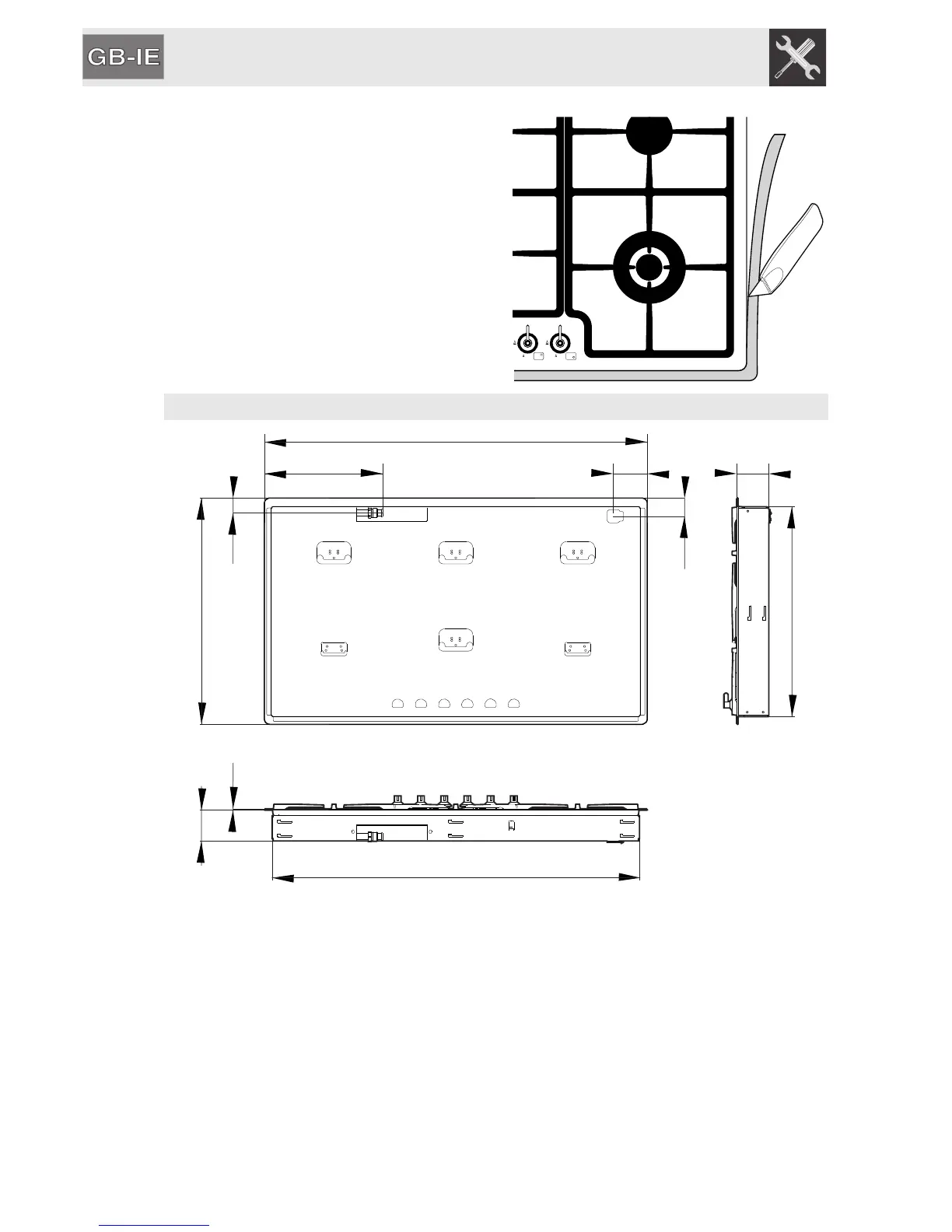

Dimensions: Gas and electrical connection location (measurements in mm).
866
267 76
511
3,3
34
38
70
833
73
474
