Instructions for the installer
32
6.2 Electrical connection
Make sure that the voltage and capacity of the power line conform to the data
shown on the plate located under the casing. Do not remove this plate for any
reason.
The plug at the end of the supply cable and the wall socket must be of the same
type and must conform to the applicable legislation on electrical installations.
Make sure that the supply line is suitably earthed.
Fit the power supply line with a multipolar cut-out device with a contact opening
gap equal to or greater than 3 mm in an easily accessible position close to the
appliance.
Avoid the use of adapters and shunts.

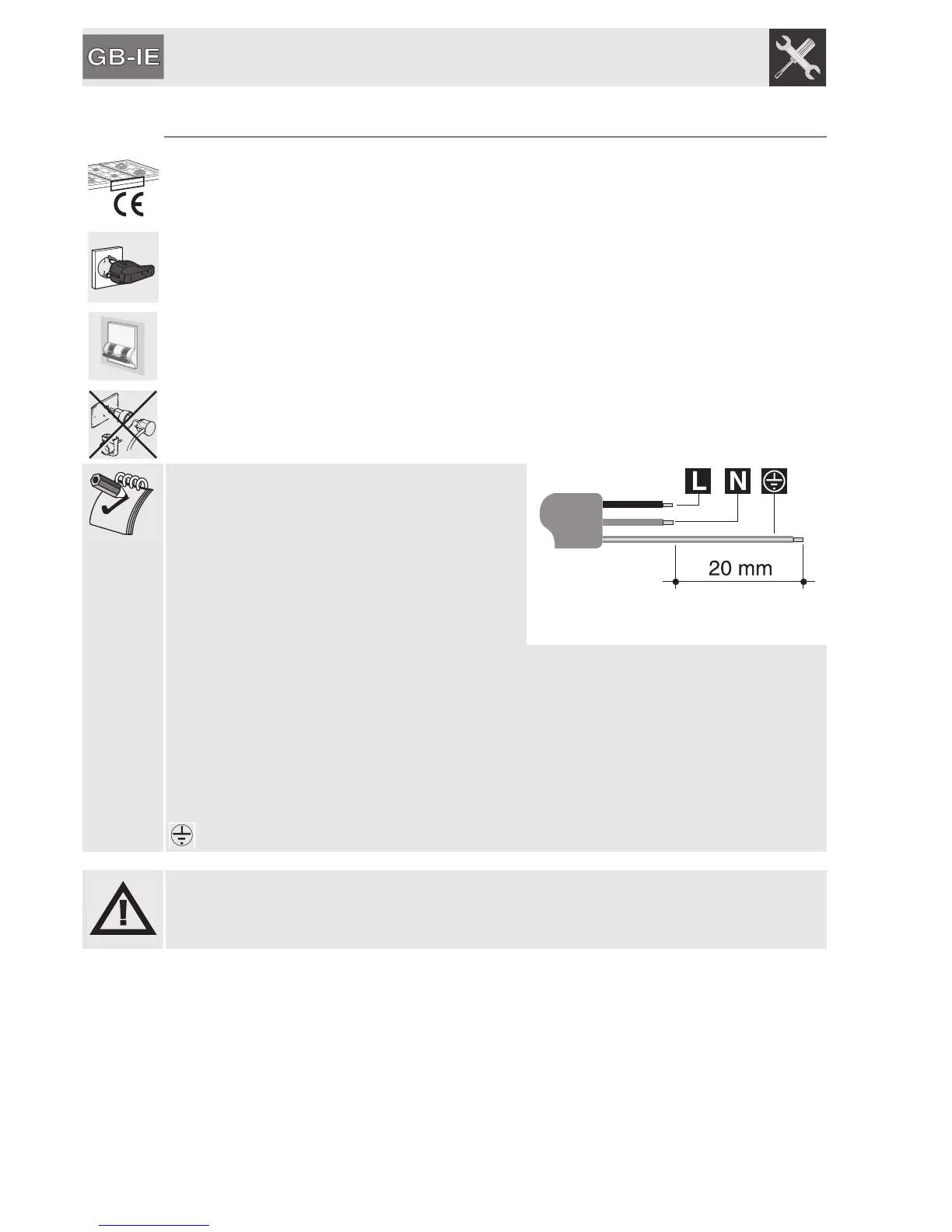

If the power cable is replaced, the cross-
section of wires in the new cable must be
no less than 0.75 mm
2
(3 x 0.75 cable),
remembering that the end for connection to
the appliance must have an earth wire
(yellow/green) which is at least 20 mm
longer.
Only use a H05V2V2-F type cable or similar withstanding a maximum
temperature of 90°C. The cable must be replaced by a specialised technician
who must carry out the connection to the power grid following the diagram
below.
L = brown
N = blue
= yellow/green
The manufacturer declines all responsibility for damage to persons or things
caused by non-observance of the above prescriptions or by interference with
any part of the appliance.
