36 - INSTALLATION 91477A872/A

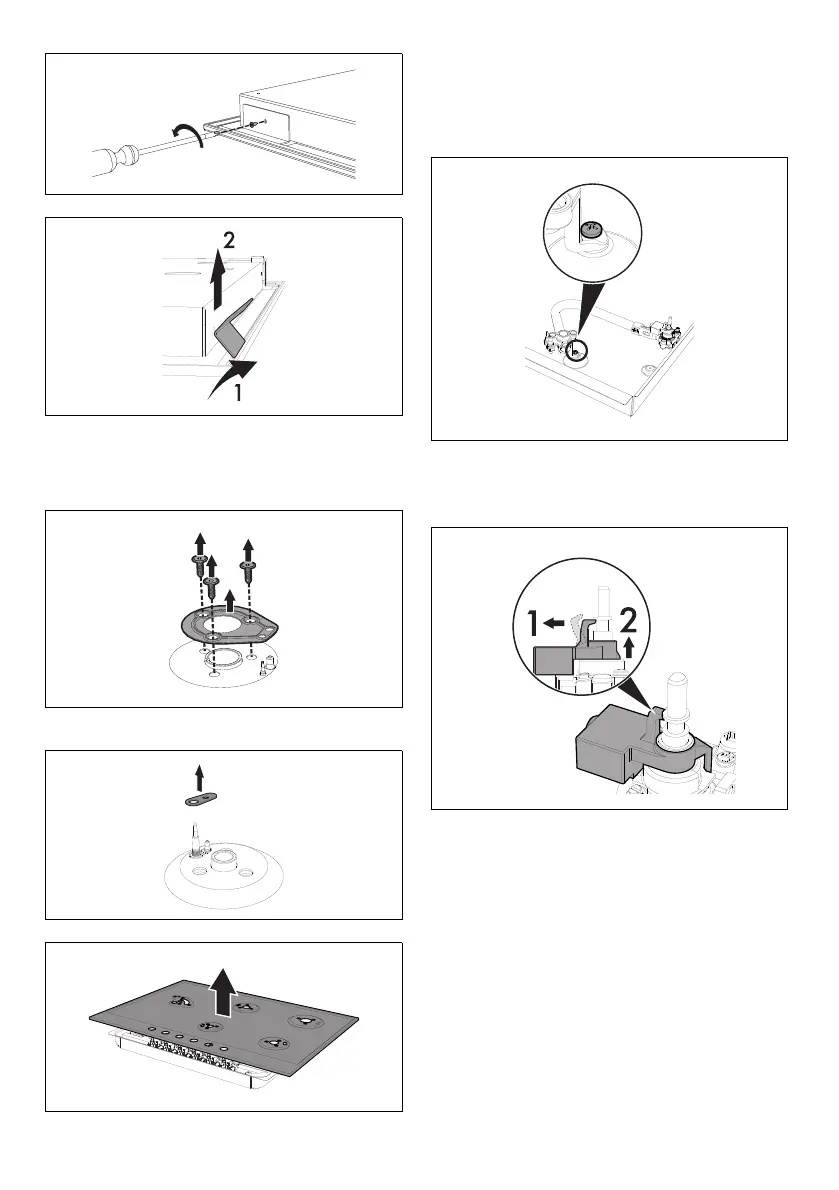

5. Remove the bracket fixing screw.
6. Pull out the bracket.
7. Straighten the appliance.
For all models:
8. Unscrew the screws under each burner to
remove the fixing plate.
9. Remove the seals from the plugs and
thermocouples of each burner.
10.Lift the hob top and remove it.
11.To reassemble the appliance, follow the
previous instructions in reverse order.
Replacing the nozzles/air regulation
1 Undo the burner work surface fastening
screw.
2. Remove the burner work surface and the
corresponding gas supply hose.
3. Lift the trigger of the microswitch for the gas
cock (1), then remove it (2) .
4. Use a 7-mm spanner to remove the nozzle
and replace it with the new one for the
required gas supply, following the
