Use
46

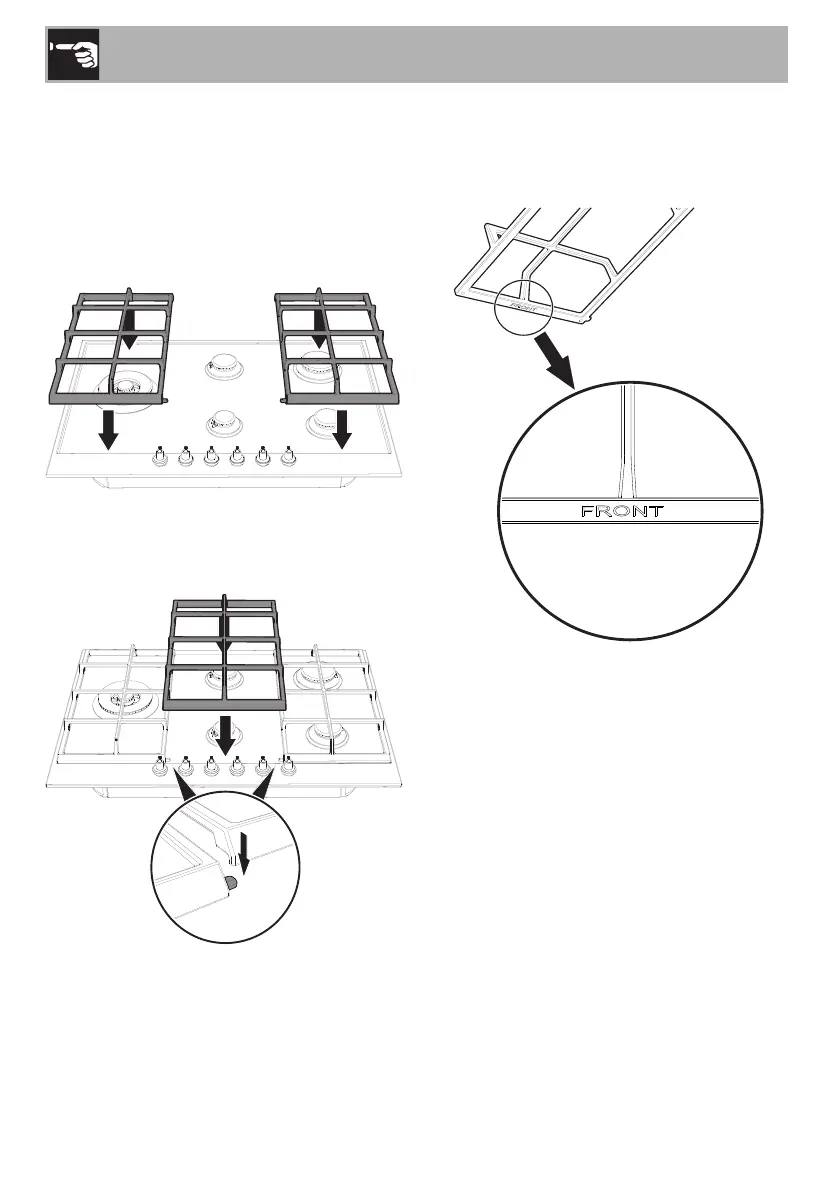

Correct positioning of the pan supports
To install the pan supports, follow the
instructions as shown in the following
figures.
1. Place the lateral pan supports on the
hob, making sure that the front lugs are
facing towards the knobs.
2. Insert the central pan support by slotting
the recesses onto the lugs of the lateral
pan supports.
Also refer to the marking “FRONT”
stamped under the front of each pan
support as an additional aid to positioning
them correctly on the hob.
• Position the pan supports so that the
“FRONT” markings are pointing towards
the knobs of the hob.
