Installation
53
EN

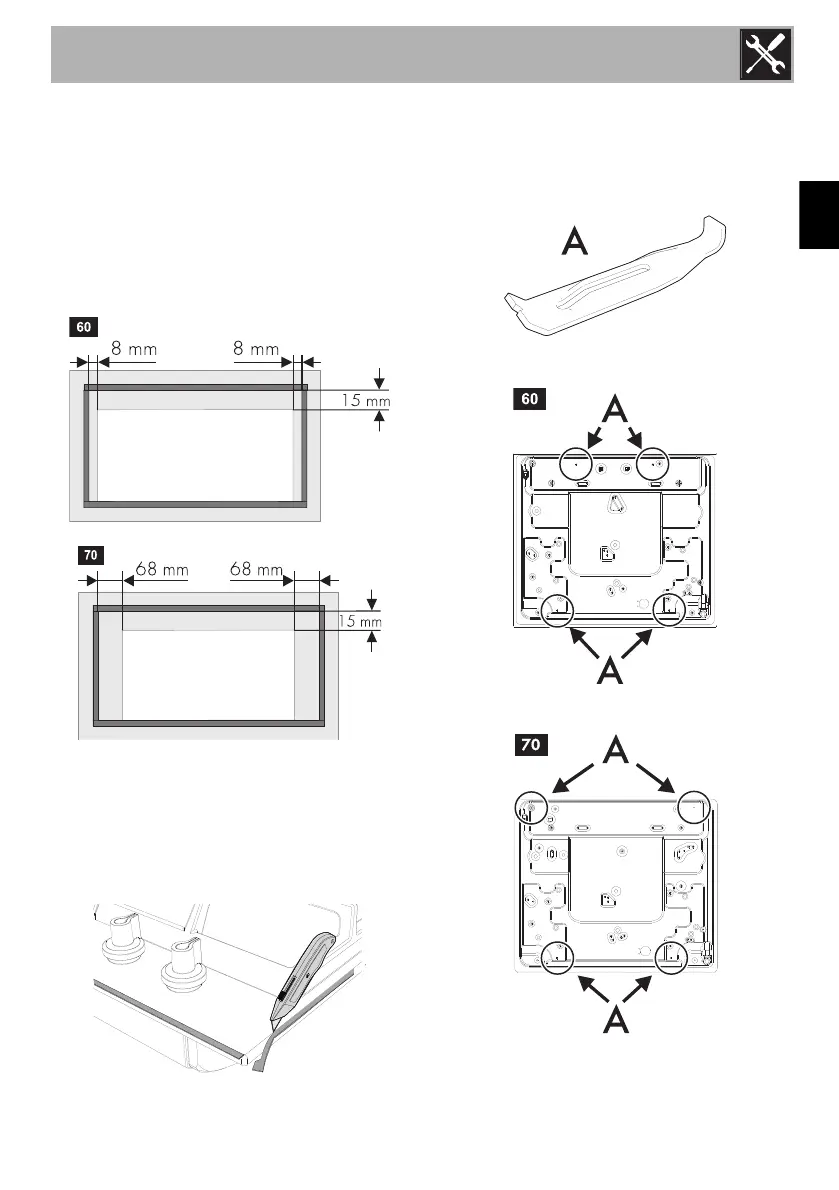

Hob seal
To prevent leakage of liquid between the
frame of the hob and the work surface, put
the insulating seal provided in position
before assembly.
1. Refer to the dimensions in the figure,
bearing in mind that the long front side
must brush against the hole.
2. Use light pressure to make the seal stick
to the edge around the hole cut in the
worktop.
3. Carefully trim the surplus edge away
from the seal.
5.4 Fixing using brackets
The figures below indicate the exact
position of the holes to be used to attach the
hob to the work surface correctly.
60 cm models
70 cm models
