Installation
46

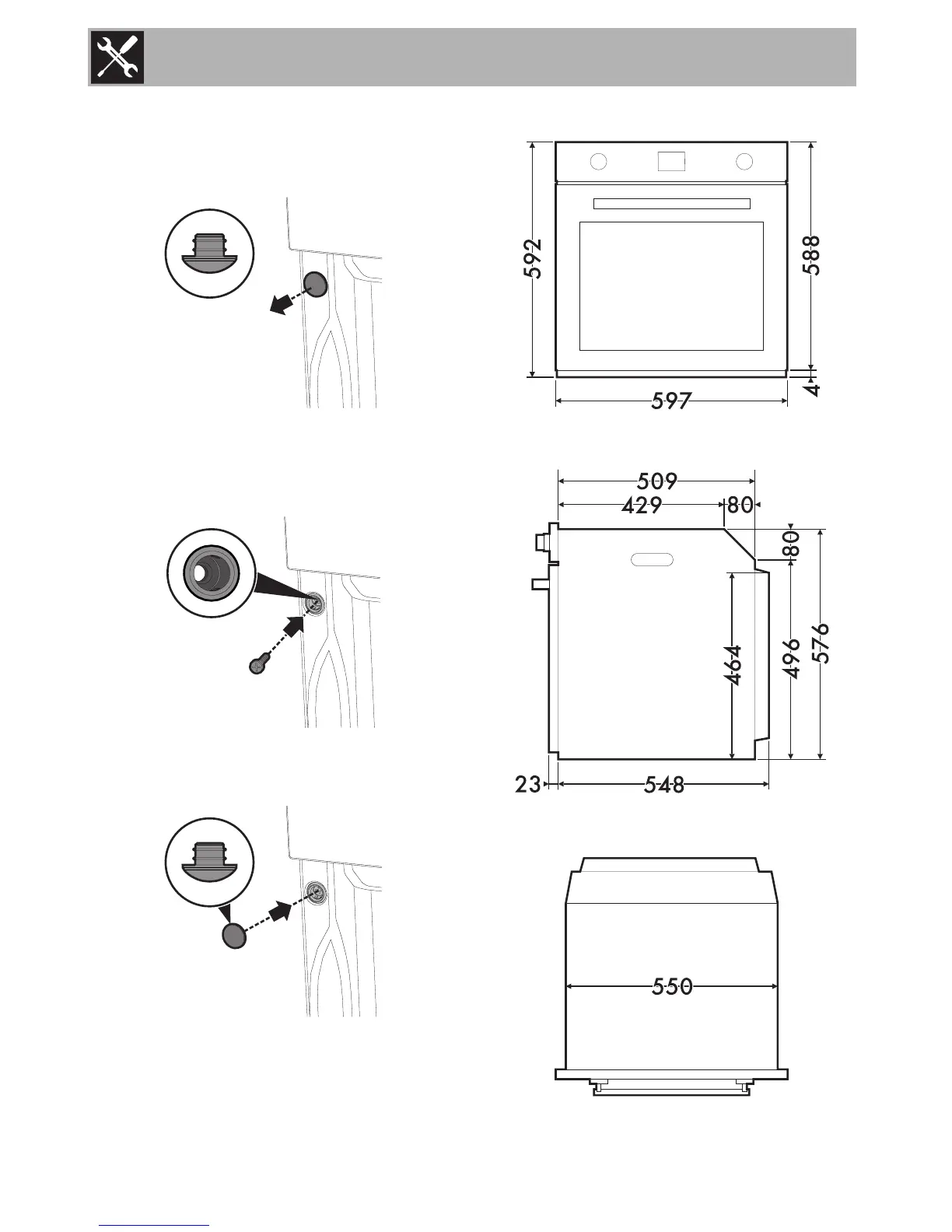

Fastening bushings
1. Remove the bushing covers inserted on
the front of the appliance.
2. Mount the appliance into the recess.
3. Secure the appliance to the piece of
furniture using the screws.
4. Cover the bushings using the covers that
were previously removed.
Appliance overall dimensions (mm)
