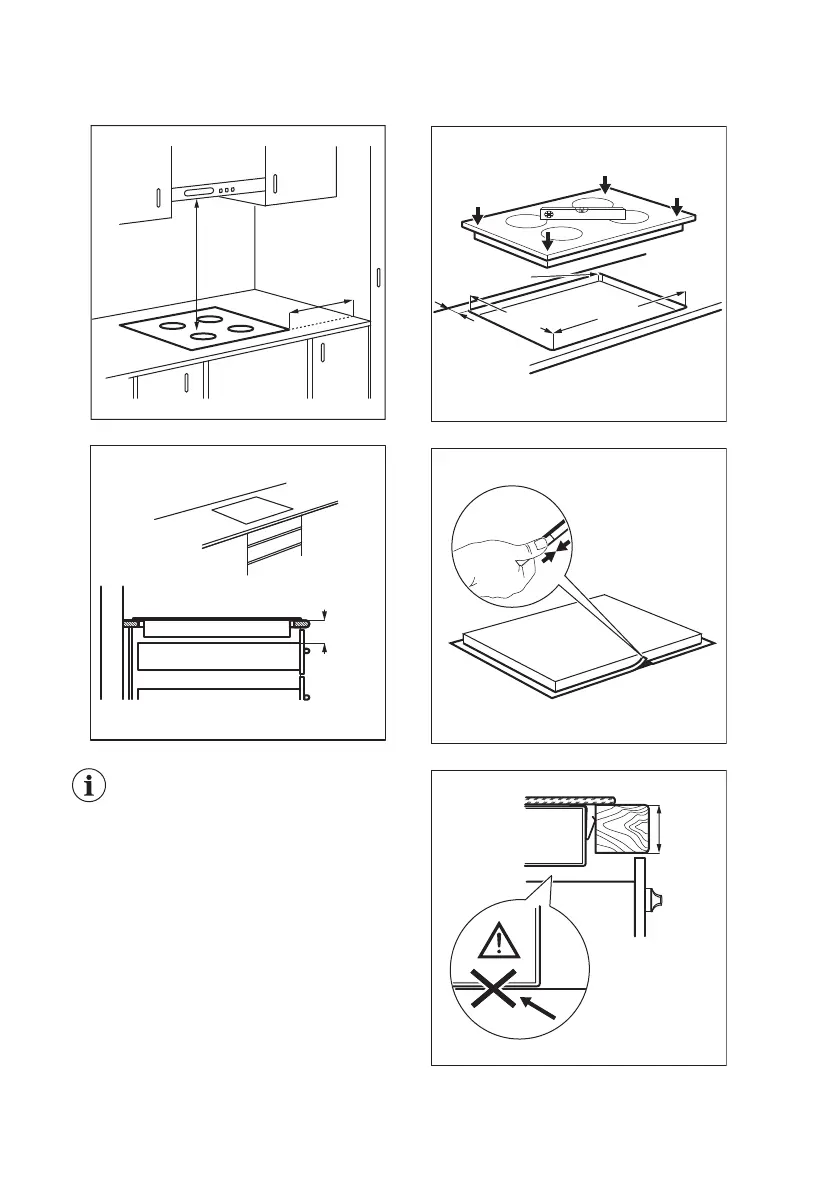

Assembly
min.
50mm
min.
500mm
min. 60mm
If the appliance is installed
above a drawer, the hob
ventilation can warm up the
items stored in the drawer
during the cooking process.
You can instal a separation
panel but it is not mandatory.
On-top installation
1.
min.
55mm
R 5mm
490
+1
mm
880
+1
mm
2.
3.
min.
28 mm
