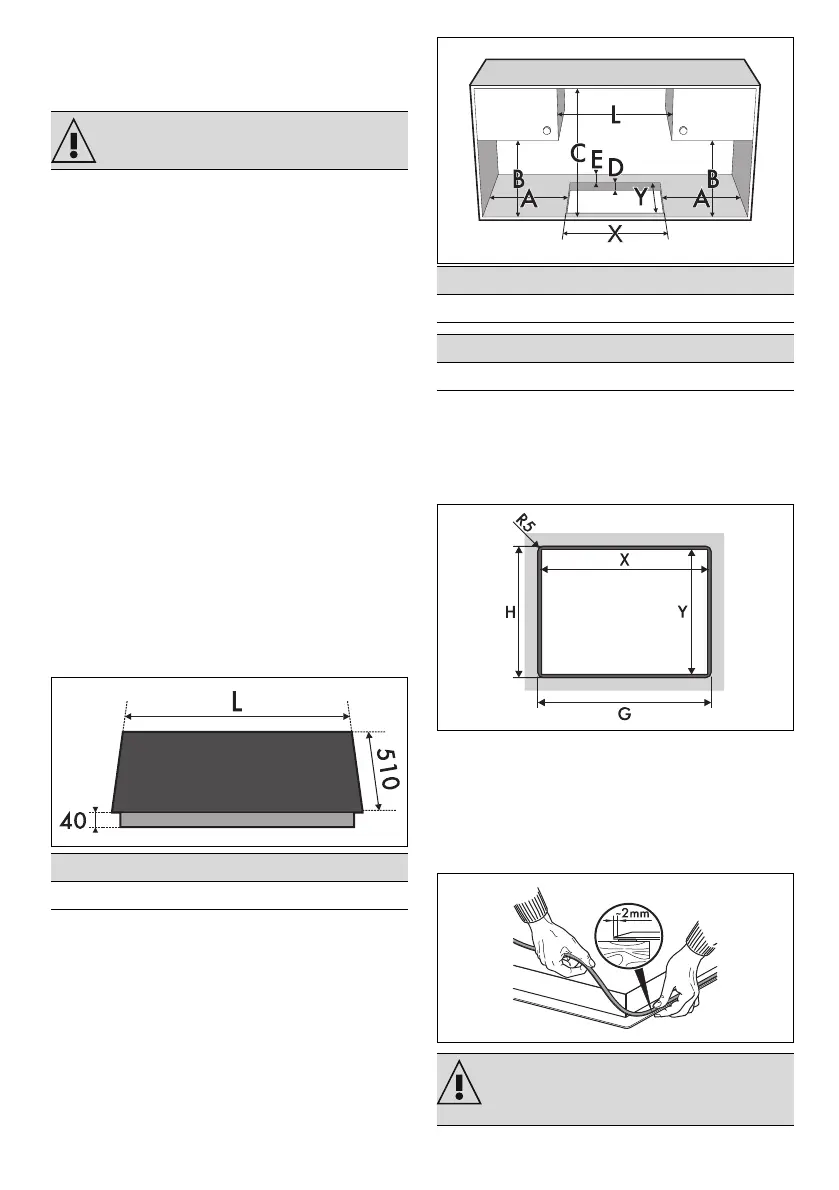

INSTALLATION - 3191477A937/A
Section cut from the countertop
Safety instructions for positioning and
installation
• Installation can be carried out on various
materials such as masonry, metal, solid
wood or plastic laminated wood as long as
they are heat resistant (>90°C).
• Veneers, adhesives or plastic coatings on
adjacent furniture should be temperature-
resistant (>90°C), otherwise they might
warp over time.
• If the piece of furniture does not have the
required recess opening, either it will have
to be cut or masonry work carried out by a
competent technician.
• The minimum clearance between exhaust
hoods and the cooking surface must be at
least the distance indicated in the exhaust
hood installation instructions.
• The minimum clearances must also be
respected for the edges of the hob on the
back as indicated in the assembly
instructions.
• If the appliance is to be installed above an
oven, the oven must be fitted with a cooling
fan.
Appliance overall dimensions (mm)
Standard mounting and with bevelled edge
(mm)
Flush mounting
For this type of mounting, you have to make an
additional cut at the edges of the recess in the
furniture if you wish to install the hob flush with
the countertop.
*Refer to the measurements in the table above.
Hob seal
To prevent leakage of liquid between the frame
of the hob and the countertop, place the
adhesive seal provided along the entire outer
edge of the hob before assembly.
See General safety instructions.
MODELS (cm) L
60 600
A B C D E
min 150 min 460 min 750 20 - 60 min 50
L X Y G H
600 550÷560 478÷479 604 514
Do not use silicone to secure the hob.
This would make it impossible to remove
the hob without damaging it.
