Instructions for the installer
24
2. POSITIONING THE HOB
The following operation requires building and/or carpentry work so must
be carried out by a competent tradesman.
Installation can be carried out on various materials such as masonry,
metal, solid wood or plastic laminated wood as long as they are heat
resistant (T 90°C).
Never use silicone or other insulating products when installing the
appliance; use only the rubber gasket provided.
2.1.1 Attachment to support structure

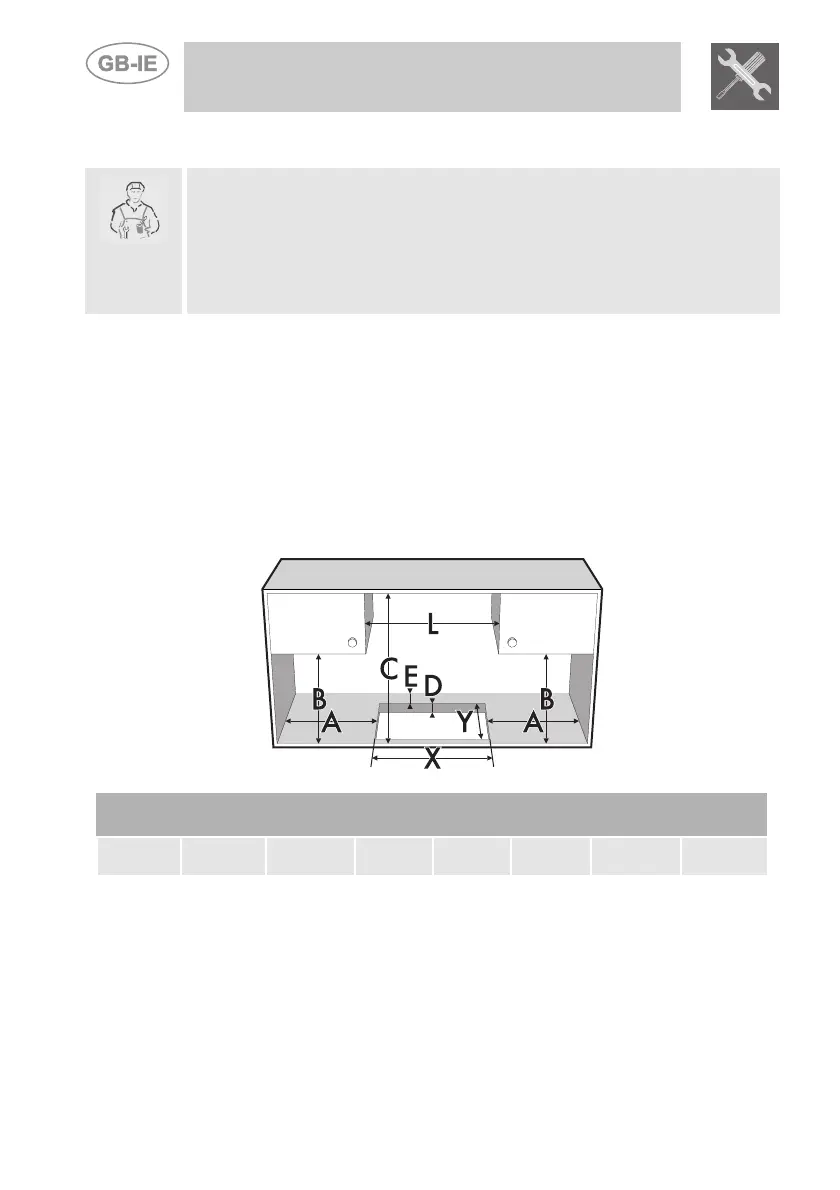

Create an opening with the dimensions shown in the figure in the top
surface of the counter, keeping a minimum distance of 50 mm from the
rear border.
This appliance can therefore be mounted against walls higher than the
work surface on condition that a certain distance be kept between the
appliance and the wall as shown in the figure so as to avoid damage from
overheating.
Make sure there is a minimum of 750 mm between the hot plate flames
and any shelf that may be installed directly above them.
A (mm) B (mm) C (mm) D (mm) E (mm) L (mm) X (mm) Y (mm)
min 110 min 460 min 750 20÷40 min 50 600 555÷560 478÷482
