Cleaning and maintenance
86

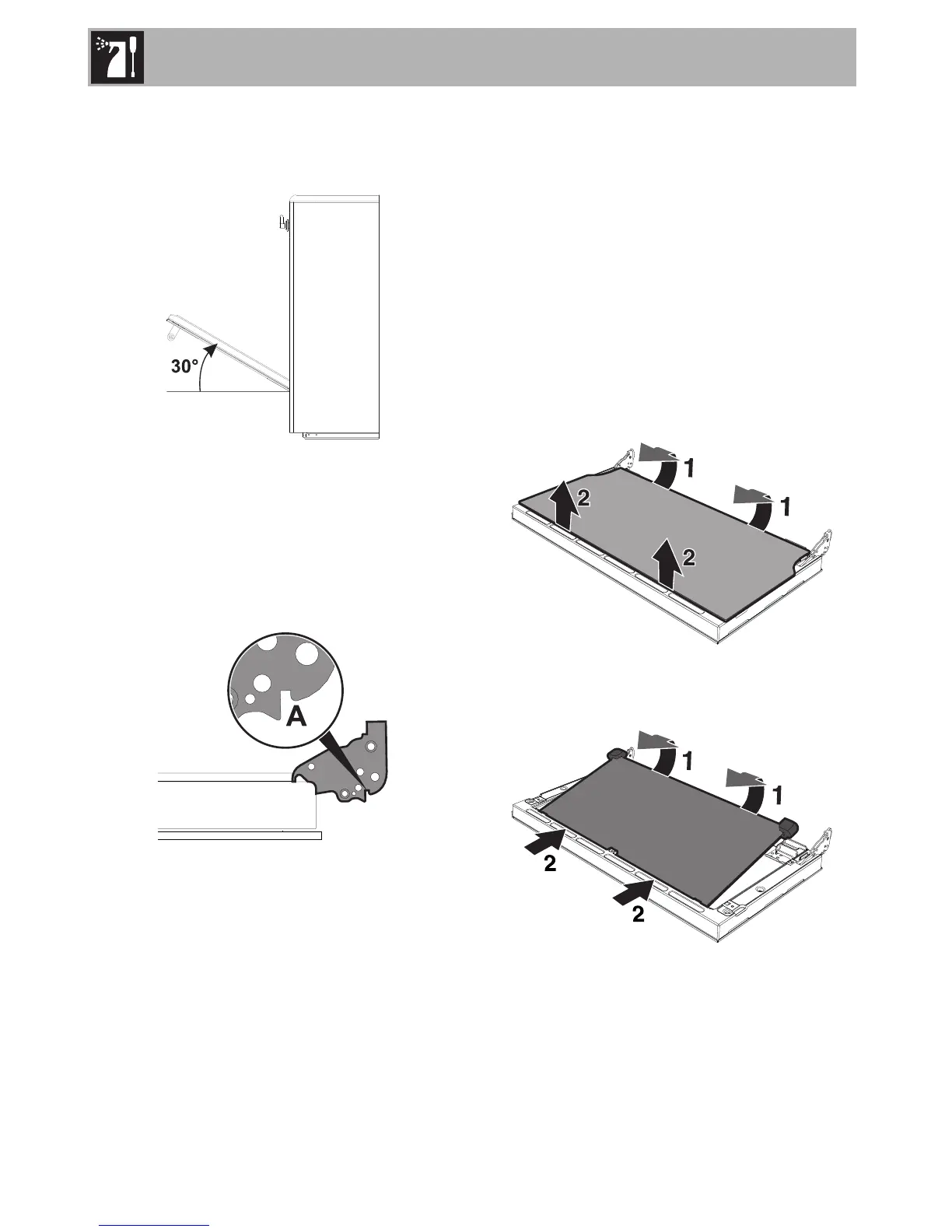

2. Grasp the door on both sides with both
hands, lift it forming an angle of around
30° and remove it.
3. To reassemble the door, put the hinges
in the relevant slots in the oven, making
sure that grooved sections A are resting
completely in the slots. Lower the door
and once it is in place remove the pins
from the holes in the hinges.
Removing the inside glass panels
(auxiliary oven only)
For easier cleaning the internal glazing
panes of the door can be removed.
1. Remove the internal glass pane by
pulling the rear part gently upwards,
following the movement indicated by the
arrows (1).
2. Then, pull the front part upwards (2). This
way, the 4 pins attached to the glass
detach from their housings in the oven
door.
3. Remove the intermediate glazing pane
by lifting it upwards.
