Installation
104

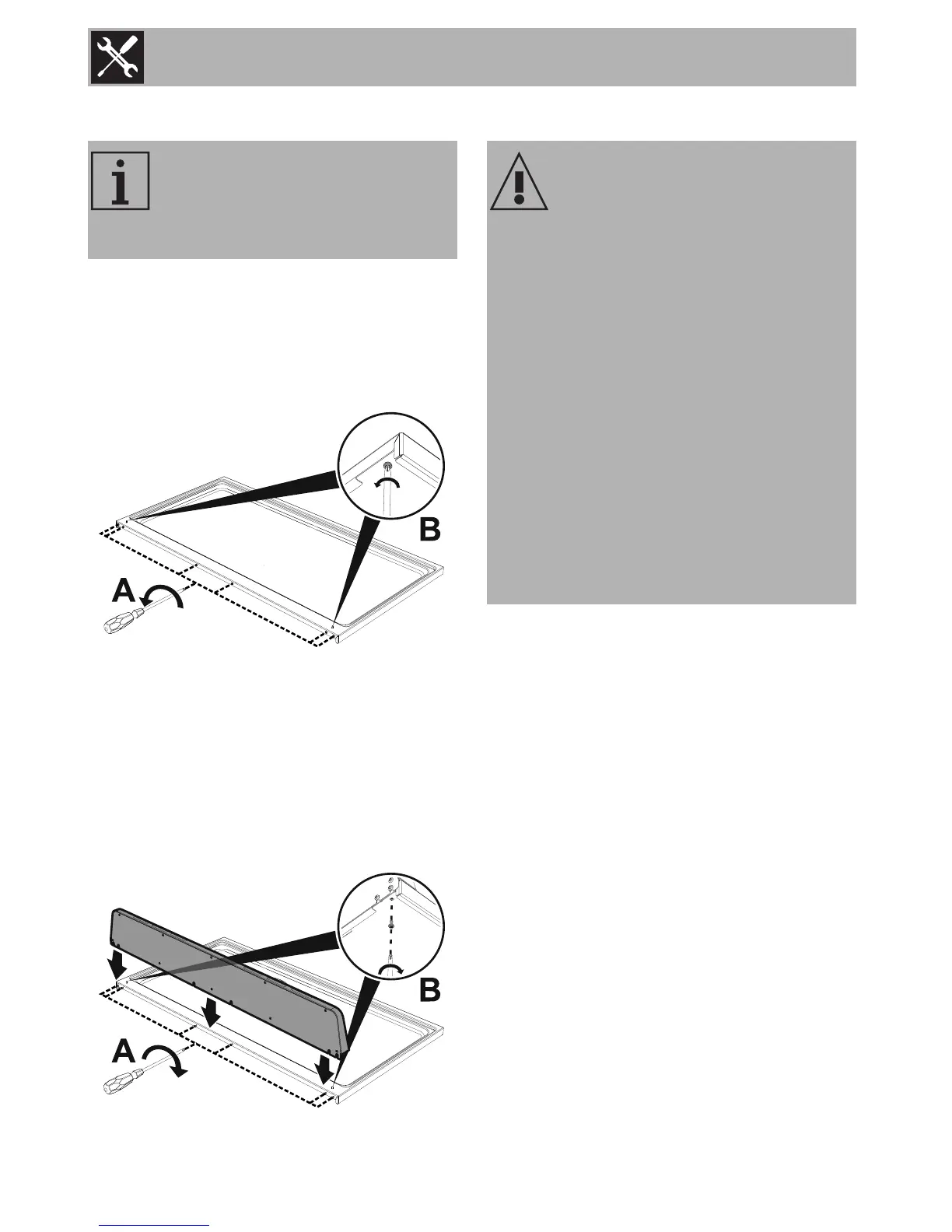

Assembling the upstand
The upstand must always be positioned and
secured correctly on the appliance.
1. Loosen the 6 screws on the back of the
hob (A) and unscrew the 2 screws (B) on
the side part of the upstand.
2. Place the upstand on the hob. Align the
6 bottom slots of the upstand with the
6 screws on the back of the hob that
were previously loosened.
3. Tighten the 6 screws on the back of the
hob (A) and the 2 screws under the hob
(B) to secure the upstand.
5.3 Electrical connection
General information
Check the mains characteristics against the
data indicated on the plate.
The identification plate bearing the
technical data, serial number and brand
name is visibly positioned on the appliance.
Do not remove this plate for any reason.
The appliance must be connected to
ground using a wire that is at least 20 mm
longer than the other wires.
The upstand provided is an
integral part of the product; it must
be fastened to the appliance prior
to installation.
Power voltage
Danger of electrocution
• Have the electrical connection
performed by authorised persons.
• Use personal protective equipment.
• The appliance must be connected to
ground in compliance with electrical
system safety standards.
• Disconnect the mains power supply.
• Do not pull the cable to remove the plug.
• Use cables withstanding a temperature
of at least 90 °C.
• The tightening torque of the screws of
the terminal board leads must be
1.5-2Nm.
