Instruments
REDAPT™ instruments are designed to maximize surgical eciency and improve
accuracy and reproducibility of implant position during the procedure. This is
accomplished by reaming and trialing “over the top” of the distal reamers. Distal and
proximal reamers are color-coded to provide easy identication of implant sizes and
reduce unnecessary instruments.
Distal reamers are intended to allow the surgeon to prepare and size the canal for
optimal t of the tapered, uted, distally xed stem. When used in conjunction with
trial bodies and necks, the distal reamers function as intramedullary trials which
should provide the surgeon with an accurate assessment of implant positioning
while reducing the number of instruments and trial components. Distal reamers are
available in diameters of 10mm to 21mm in 1.0mm increments in lengths of 190mm
and diameters of 10mm to 27mm in lengths of 240mm and 300mm.
The proximal reamers are uniquely designed to be used over the distal reamers. By
reaming “over the top”, the surgeon is preparing for the proximal aspect of the stem
based on the location of the distal reamer. During canal preparation, “over the top”
reaming allows the surgeon to maintain the relative position of the proximal and
distal reamed cavities to accept the implant of choice. Proximal reamers are available
in sizes which correspond to the Sleeveless stem size and the Extra Small, Small,
Medium and Large sleeve for each Sleeved stem size.

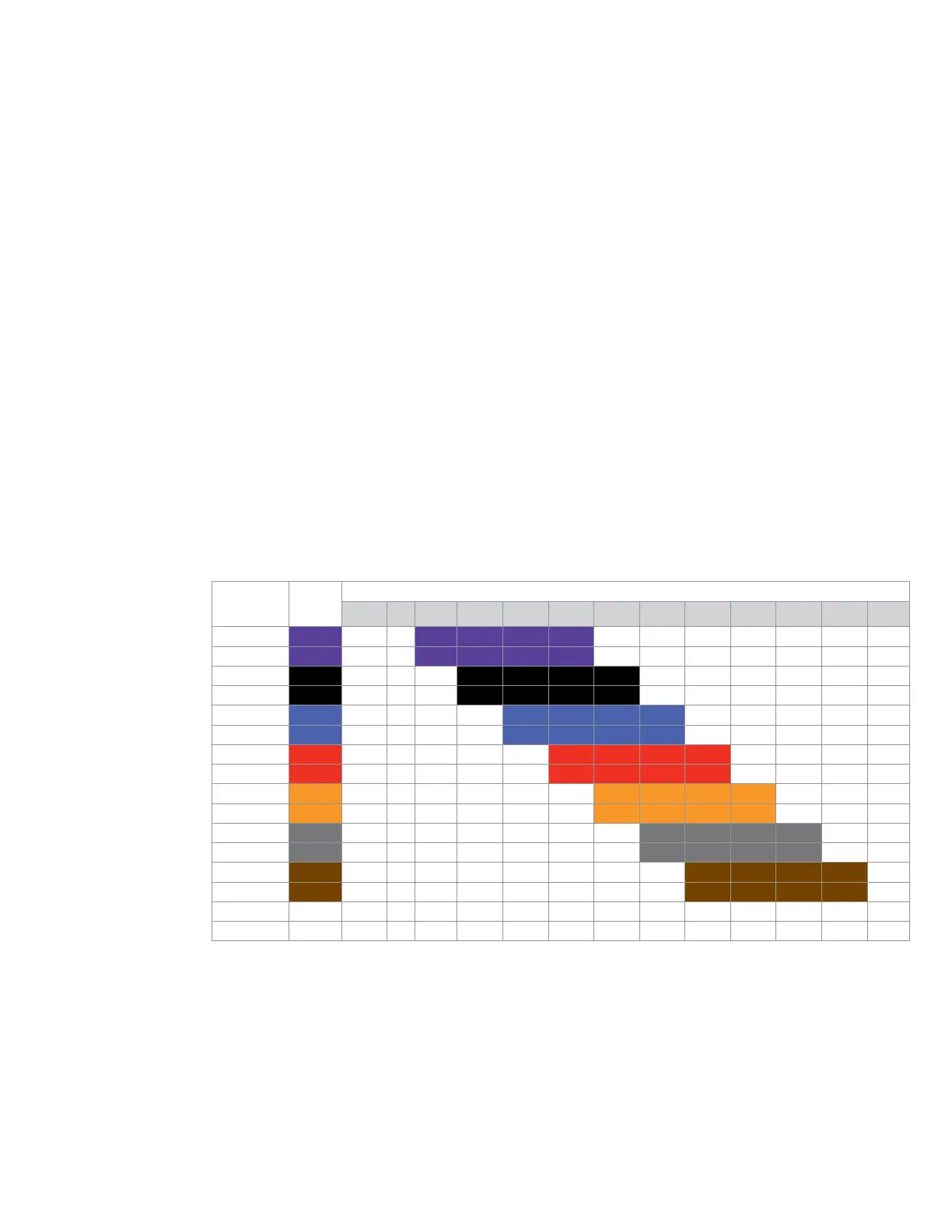

Proximal reamer color code chart
Distal
reamer/
implant size
Color of
reamer/
implant
Proximal Reamers by number*
Starter 1 2 3 4 5 6 7 8 9 10 11 12
12 Purple PF 12/13XS 12/13S 12/13M 12/13L
13 Purple PF 12/13XS 12/13S 12/13M 12/13L
14 Black PF 14/15XS 14/15S 14/15M 14/15L
15 Black PF 14/15XS 14/15S 14/15M 14/15L
16 Blue PF 16/17XS 16/17S 16/17M 16/17L
17 Blue PF 16/17XS 16/17S 16/17M 16/17L
18 Red PF 18/19XS 18/19S 18/19M 18/19L
19 Red PF 18/19XS 18/19S 18/19M 18/19L
20 Copper PF 20/21XS 20/21S 20/21M 20/21L
21 Copper PF 20/21XS 20/21S 20/21M 20/21L
22 Gray PF 22/23XS 22/23S 22/23M 22/23L
23 Gray PF 22/23XS 22/23S 22/23M 22/23L
24 Brown PF 24/25XS 24/25S 24/25M 24/25L
25 Brown PF 24/25XS 24/25S 24/25M 24/25L
26 White PF 26/27XS 26/27S 26/27M 26/27L
27 White PF 26/27XS 26/27S 26/27M 26/27L
* PF = Sleeveless Stem
