Page 4

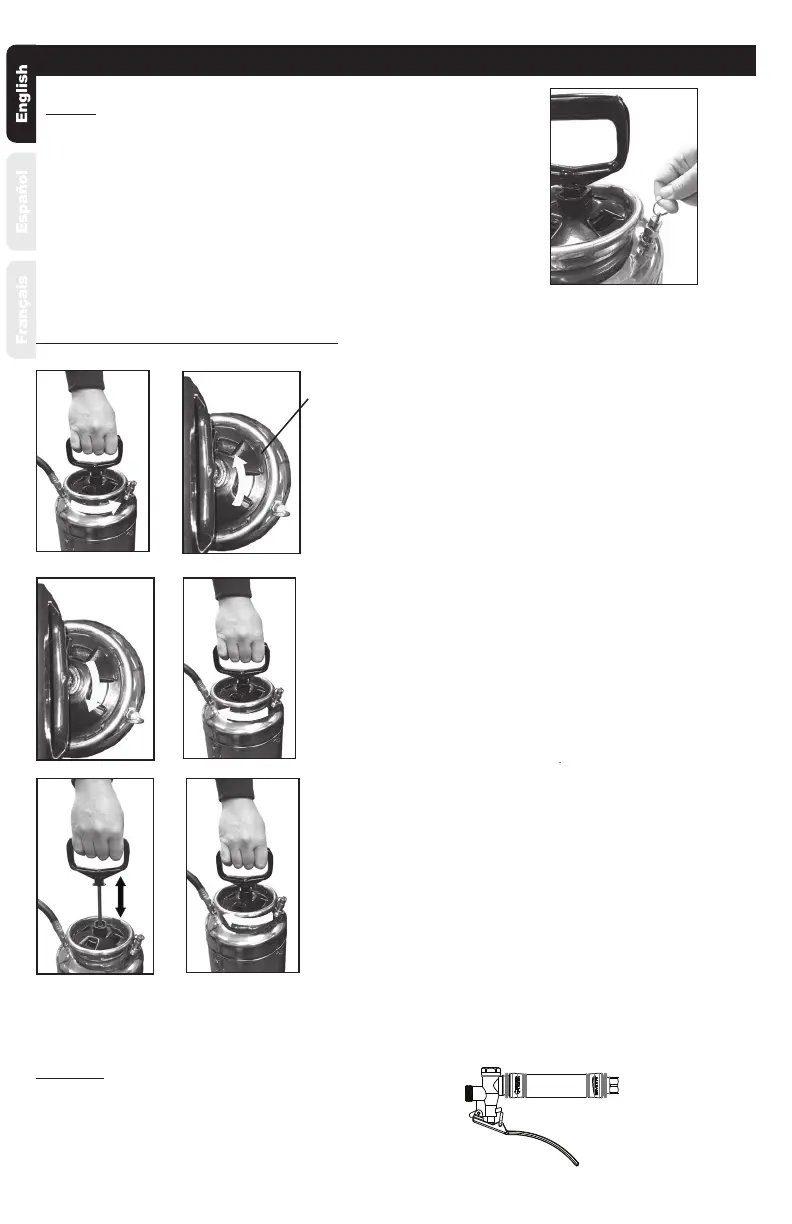

OPERATING INSTRUCTIONS
Filling
IMPORTANT: Always make sure the pressure is
released from the tank before lling or servicing.
1. Pull up on the knob of the pressure release
valve until all the pressure is released from the
tank. (See Figure D.)
Shut-O
1. Direct nozzle away from you and squeeze shut-o
lever to begin spraying.
2. This model does have a locking trigger.
Figure D
Pump Clamp Tab
Pump Unlocking And Pressurizing
TO PRESSURIZE: Push down on the handle to depress
coil spring and turn handle 1/4 turn counterclockwise to
unlock handle. Pressurize the sprayer by pumping the
handle in a smooth up and down motion. Push down on
the handle to depress coil spring and turn handle 1/4 turn
clockwise, then allow handle to raise into lock position.
TO UNLOCK PUMP: Turn handle counterclockwise
until 4-prong clamp is loose, then rotate clamp
counterclockwise aligning the tabs with the slots
in the neck of the tank and remove the pump.
TO LOCK PUMP: Align clamp tabs with the slots in the
neck of the tank and lower the pump assembly, rotate
the 4-tab clamp clockwise to the stop position and
rotate the handle clockwise to tighten, seal and lock the
tank cover.
