SMITH SYSTEM LS 541N - Assembly Stage 1

ASSEMBLY INSTRUCTIONS
ASSEMBLY STAGE #1
Assembly Hardware Required:
#30
Button Head Allen Screw Qty. 2 #40 Flat Washer Qty.20
#32 Button Head Allen Screw Qty. 4 #42 Nylon Nut Qty.10
#33 Button Head Allen Screw Qty. 4

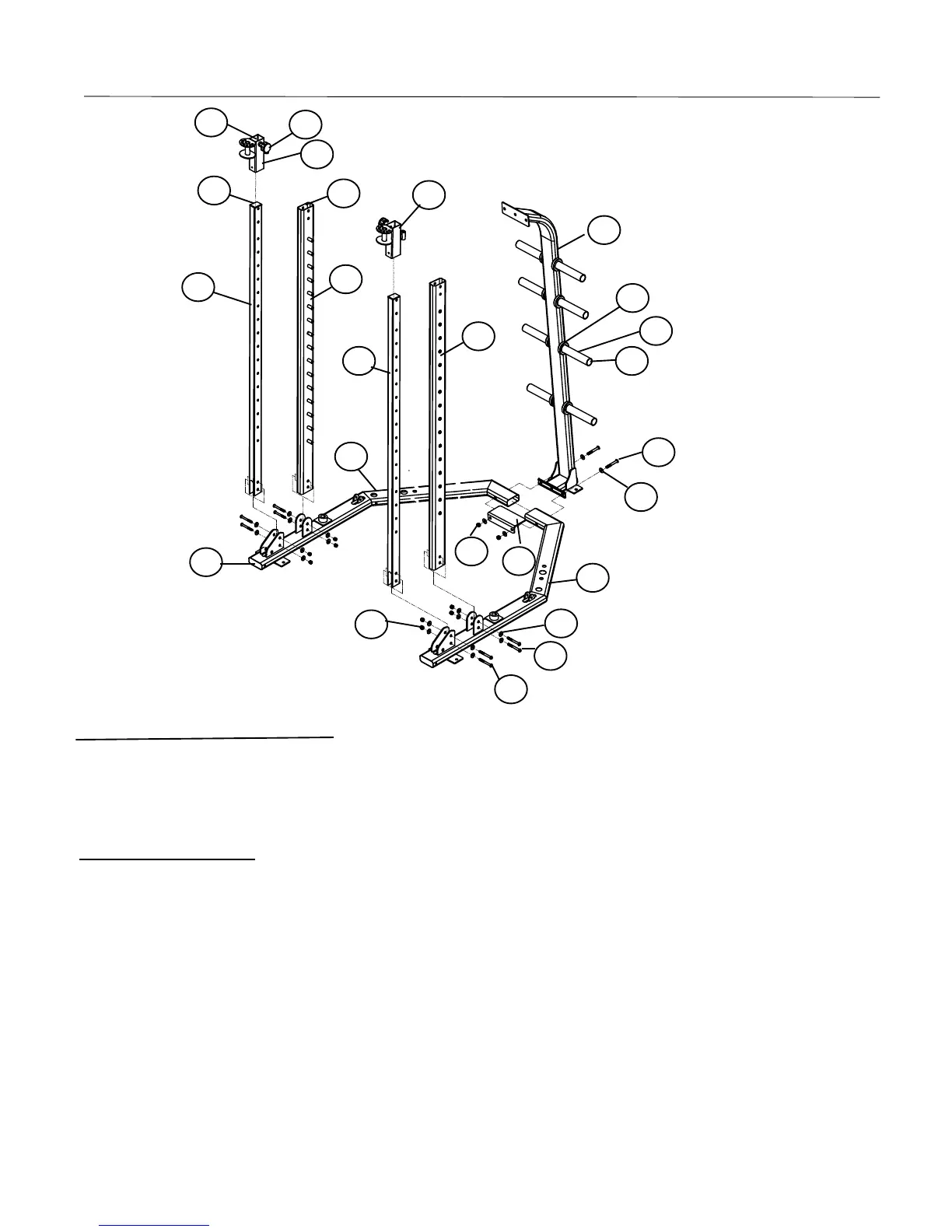

Assembly Description:
A) SECRULY assemble the Rear Upright (#3) to the Left Base (#1) and Right Base (#2) using 1- L
Bracket (#20), 2- Button Head Allen Screws (#30), 4- Flat Washers (#40), 2- Nylon Nuts (#42)
as shown.
B) SECRULY assemble the Right Olympic Bar Support (#6) and the Left Olympic Bar Support
(#7) to the Right Base (#2) and Left Base (#1) respectively using 2- Button Head Allen Screws
(#32), 4- Flat Washers (#40), 2- Nylon Nuts (#42) on per side.
C) Assemble the Right Vertical Tube Adjustable (#5) and the Left Vertical Tube Adjustable (#4) to
the Right Base (#2) and Left Base (#1) respectively using 2- Button Head Allen Screws (#33),
4- Flat Washers (#40), 2- Nylon Nuts (#42) on per side.
D) Slide the Left Handle Adjustable (#8) and the Right Handle Adjustable (#9) to the Left Vertical
Tube Adjustable (#4) and the Left Vertical Tube Adjustable (#4) respectively and tight with Pop
pins as shown.
Page 7
8
9
4
7
5
6
1
2
30
40
20
42
32
40
42
33
60
61
61
66
67
68
70
69
3
