SMONET Y001 - IC Wire and Module Connection; Battery Insertion and Cover

< 10 >

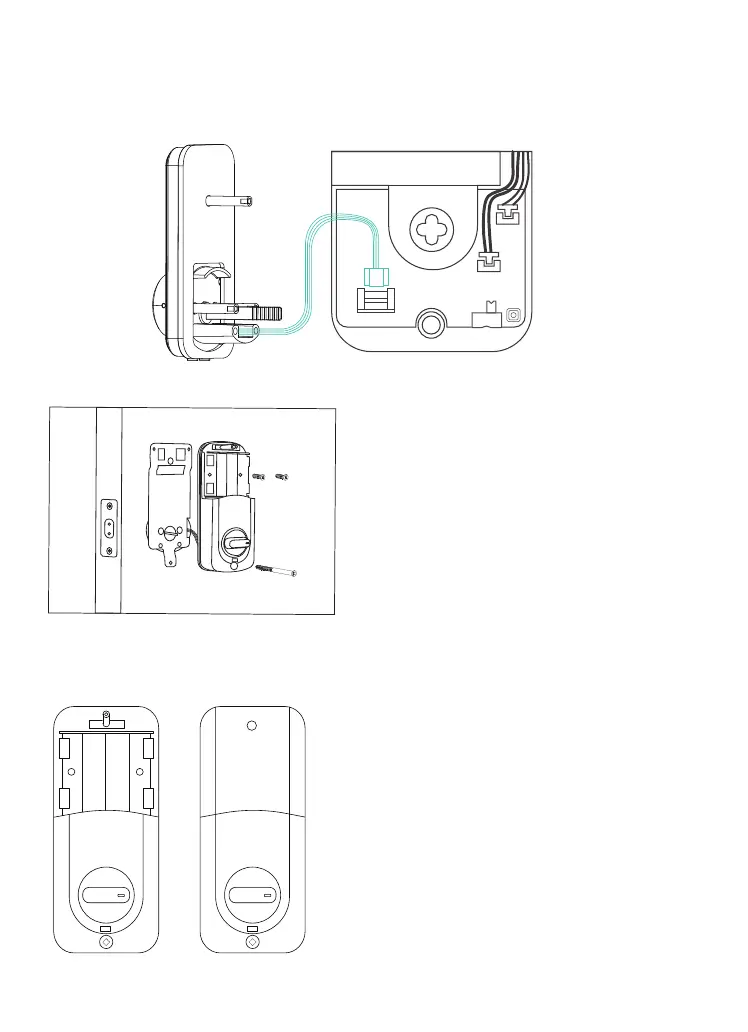

8)Insert Battery and Install Back Battery Cover
Insert 4pc（AA）1.5V Alkaline
batteries and slide the battery
cover back onto the receiver
module.
ConnectICwiretothewhiteportcarefully.
Note:Ensure the thumb turn piece and the toggle button of the
cover in right way.
Use 2 short flat screw tighten the
receiver module inner battery
groove. Longest flat screw
connect the receiver module
with door.
L R
