SMONET Y001 - Latch Installation Procedure; Mounting Plate Installation

A.Identify the center of plate: Close the door to lay the latch bolt
against the door frame.
Mark the the outline of the plate onto door jamb.
B.Drill 25mm deep at intersection of horizontal and vertical line of
plate.
3.Install Lock

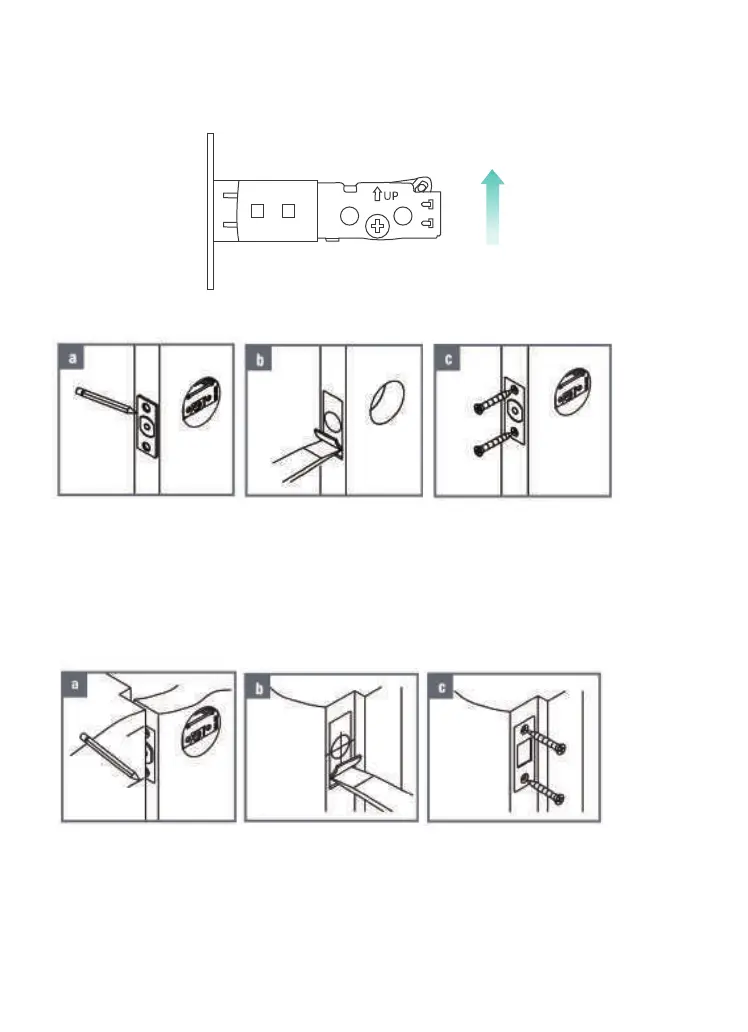

1)Install Latch
Note:Need to keep this way up when inserting the latch.
< 06 >
A.Mark the outline of the faceplate ,then take out the latch.
C.Insert the latch into the door ,use 2 wood screws to secure latch.
B.Chisel 1mm-2mm deep along the outline to allow the faceplate
to be aligned with the door edge.
2)Install Plate
Insert the latch and ensure it is parallel to the door face.
