Snap-On TPMS5 User Manual

7

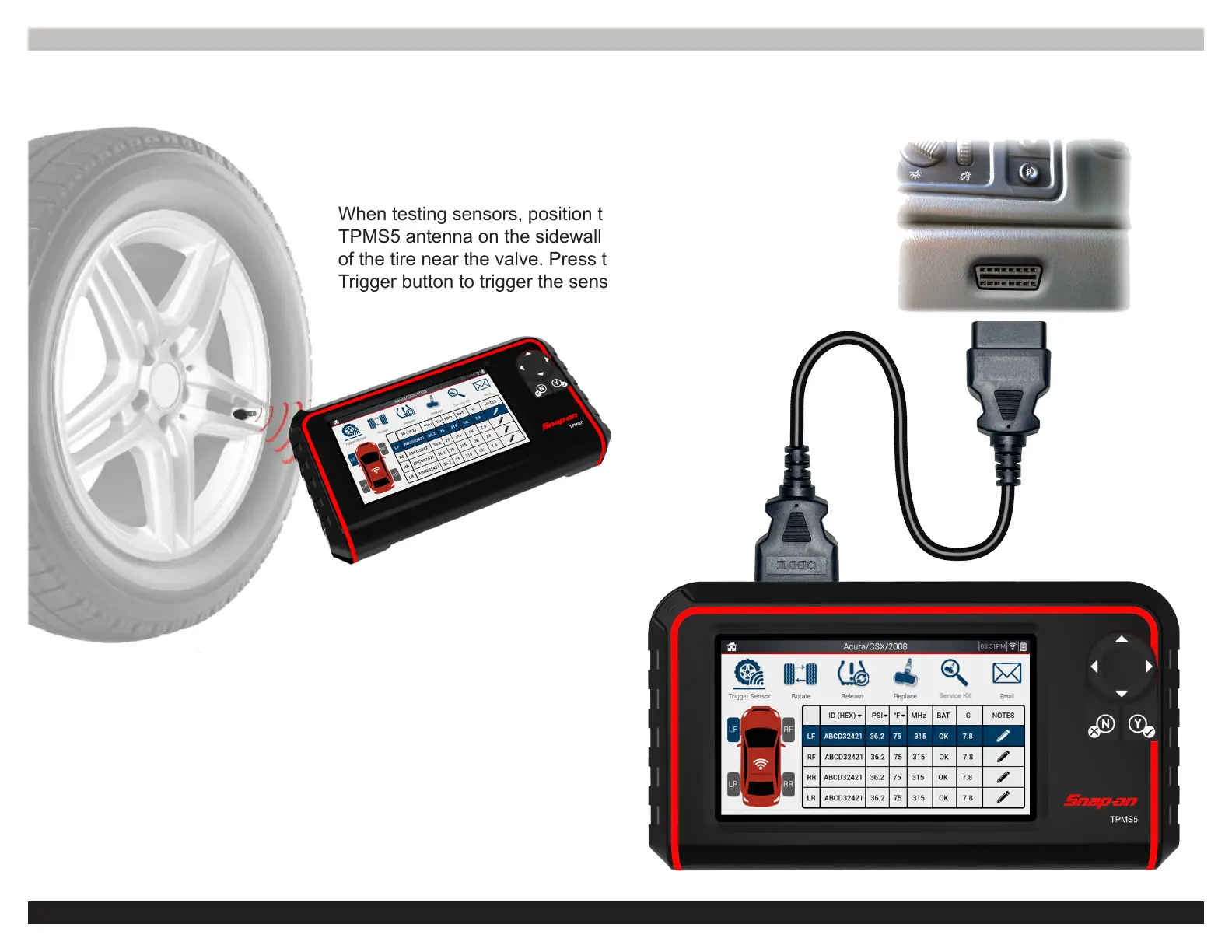

When testing sensors, position the
TPMS5 antenna on the sidewall
of the tire near the valve. Press the
Trigger button to trigger the sensor.
Chapter 2: Tool Operation and Navigation
For certain applications, the OBDII Cable is needed to perform
vehicle relearns, placard adjustments, and more. For these
applications, Plug the OBDII cable into the tool, and the other
end into the vehicle. The TPMS5 will display OBDII vehicle port
locations for easy identication.
