INTRODUCTION
This manual covers SNAPPER Series 10 (la^ two
numbers in the model designation) Automatic Blade
St^ and Smooth Start Clirtch equipped rear engine
riding mowers.
See your SNAPPER Dealer for information on the
many accessories available for your riding mower
and examine SNAPPER’S complete line of outstan¬
ding power equipment!
Always stop the blade, shift into neutral and set the
parking brake when it becomes necessary to leave
your rider momentarily while the engine is running!
m
LEFT SIDE
RIGHT SIDE
CONTROLS/FEATURES
1-C
Battery (If Equipped)
2-C Belt Cover
3-C Blade Lever
4-C
Blade Pedals
5C
Clutch/Brake Pedal
6-C Cutting Height Lever
7C
Discharge Deflector
8-C
Engine Control Lever
9-C
Front Tire (20 P.S.I.)
IOC Fuel Filler Cap/Valve
11-C Ignition Key/Switch
12-C
Operator’s Seat
13-C Parking Brake Lever
14-C Rear Bumper
15-C
Rear Tire (12 P.S.I.)
16-C
Rope Start Handle (If Equipped)
17-C Transmission Shift Lever
To set the parking brake, depress the CLUTCH/BRAKE
pedal (5-C) and then slide the PARKING BRAKE lever
(13-C) toward the LEFT until It locks the CLUTCH/
BRAKE pedal in place. To release the parking brake,tap
the CLUTCH/BRAKE pedai with your foot.
FIG. 1-A
CLUTCH/BRAKE
DETAIL
AS VIEWED FROM THE OPERATOR'S S
5-C 13-C

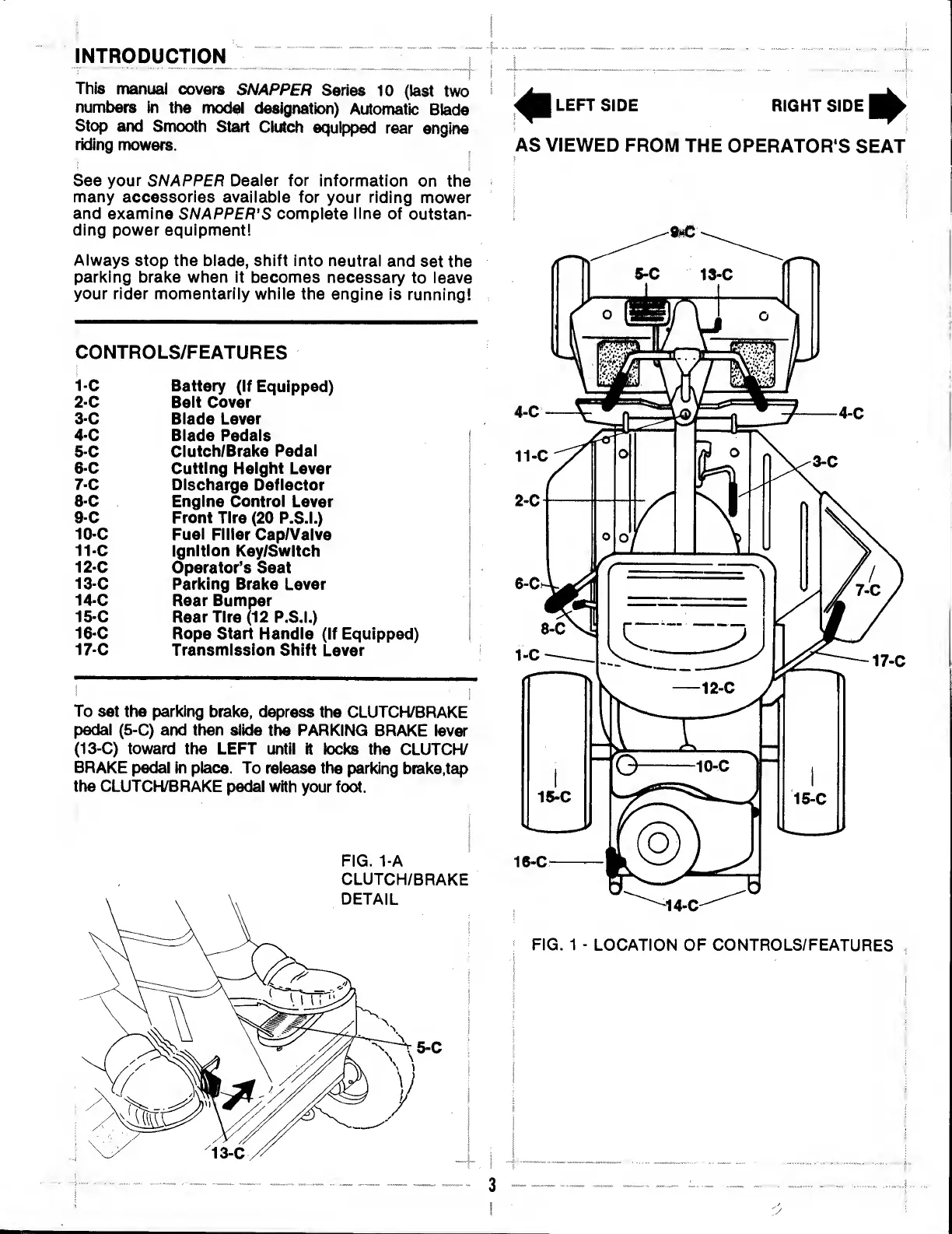

FIG. 1 - LOCATION OF CONTROLS/FEATURES
