20

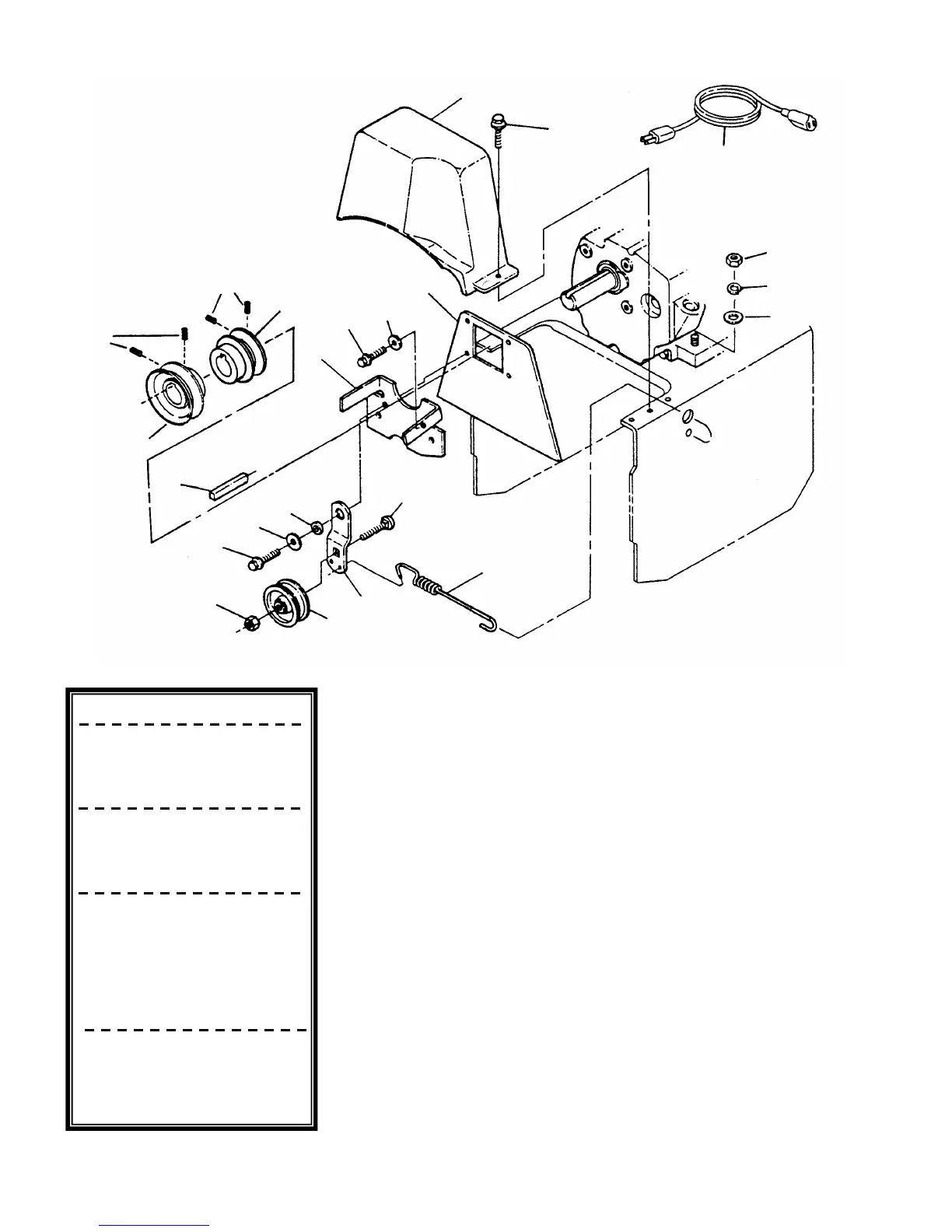

ENGINES, PULLEY, IDLER
ITEM P/N DESCRIPTION
1 3-8545 GUARD, Engine
2 3-2128 ARM, Idler
3 1-7734 COVER, Belt
4 9-0196 NUT, 5/16-18 Hex, Grade B or 5 (4)
5 1-0210 KEY, 1/4 x 2" Square
6 1-3850 IDLER
7 2-8212 SPRING, Idler
8 3-2150 FINGER, Belt
9 9-1122 SCREW, 1/4-20 x 1/2" Hex Washer Self-Tap (2)
10 9-0954 SCREW, 5/16-18 x 5/16" Socket Head Set (4)
11 9-0791 BOLT, 3/8-16 x 1-1/2" Square Neck Carriage, Grade 2
12 9-1076 WASHER, 5/16 Flat (5)
13 1-3849 SPACER
14 1-6314 WASHER, 3/8 Flat
15 9-1273 SCREW, 5/16-24 x 7/8" Hex Head Cap, Grade 5
16 9-0499 NUT, 3/8-16 Hex Top Lock
17 1-5376 PULLEY, Blower
18 1-5377 PULLEY, Traction
19 9-1021 SCREW, 5/16-24 x 3/4" Hex Head Cap, Grade 5
20 1-5368 CORD, 10’ Extension for 110V (10305 & 10305E Models
Only)(Tecumseh Part Number 1A174-17)
-- 7-2611 CORD, 8’ Extension for 230V (E9265 & E10305 Models)
21 9-1076 WASHER, 5/16 Flat (4)
22 9-0187 WASHER, 5/16 Split Lock (4)
23 2-8747 MUFFLER GUARD, Tecumseh 8 & 10 HP (not shown)
(Tecumseh Part Number 127-20)
MANUAL No. 06037 LARGE FRAME SNOW THROWER
3
9
20
4
22
21
1
10
10
17
5
18
8
19
12
11
7
2
6
15
14
16
13
ENGINE SPECS used on:
8 HP Tecumseh
Model HMSK80
Type 155527V....... 8245, 8265 &
E8265
9 HP Tecumseh
Model HMSK90
Type 156519D........9265 &
E9265
10 HP Tecumseh
Model HMSK100
Type 159236W.......10305E &
E10305E
Type 159302W.......N10305E
Type 159426W 10305 &
E10305
11 HP Tecumseh
Model OHSK110
Type 221721B........11305 &
E11305
